5" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS2203H / BDS2203FS
$1627.91
- +
1627.91

5" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2203H / BDS2203FS
From $1,627.91 Regular Price $1,713.59

5" 2023-2024 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2203H / BDS2203FS
From $1,627.91 Regular Price $1,713.59


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

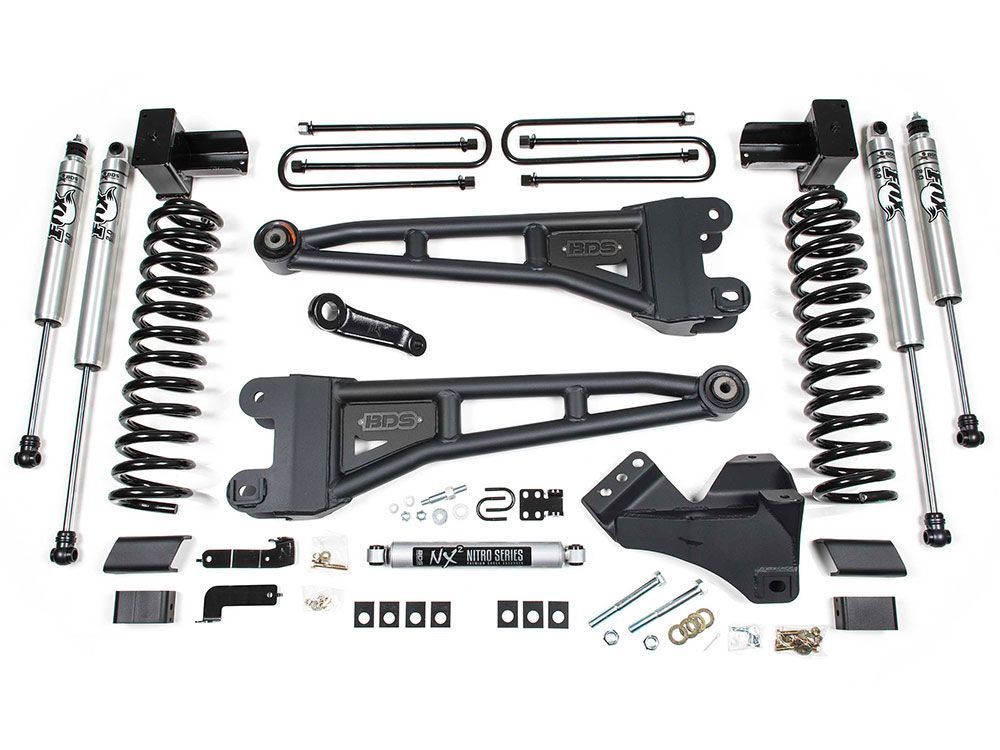

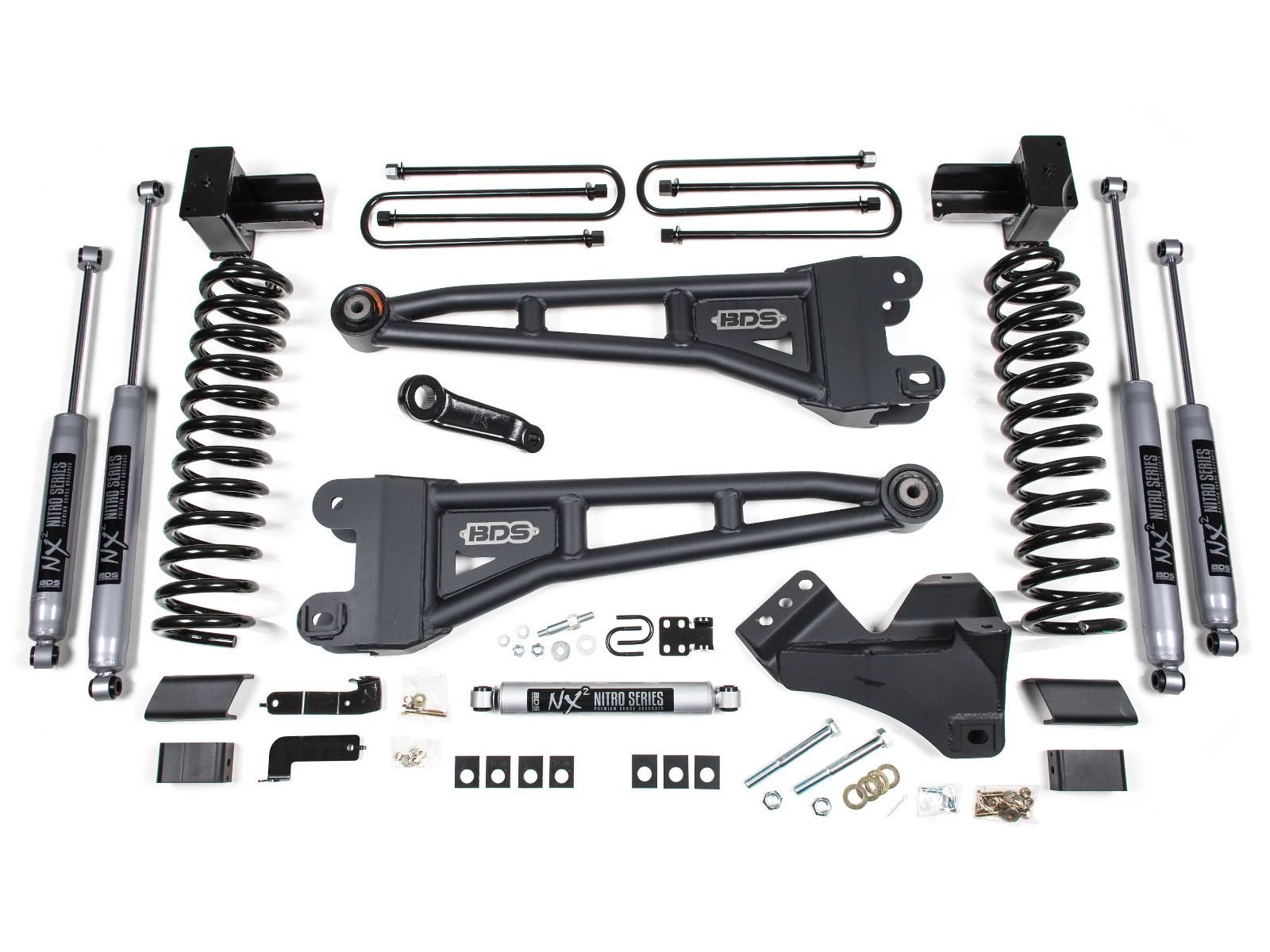

The BDS Suspension BDS2203H / 2203FS 5 inch lift kit is an great method to lift your Ford F250 / F350 to allow for use of up to 37 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS Pro-Ride front coil springs lift the front end 5 inches while maintaining performance and ride quality. A forged drop pit man arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

In the rear the factory blocks are replaced by a pair of 4.5 inch lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts.

Features and Benefits:

  • 5 inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pit man arm to correct steering angles
  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 37 inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 37" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
  • Fits 37" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.

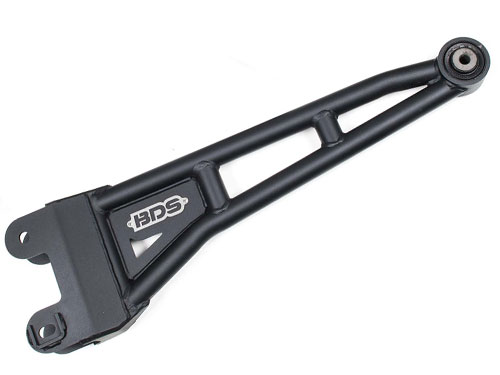

Heavy Duty Radius Arms
Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great!

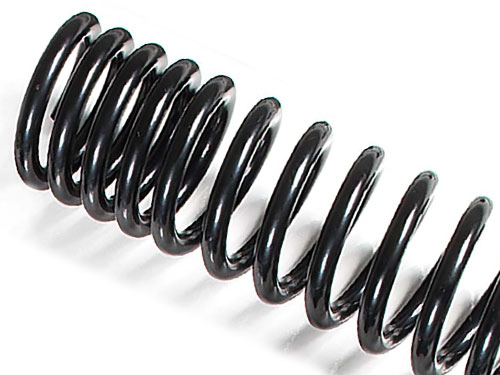

Dual Rate Coil Springs
This kit includes the Dual Rate Coil Springs. Designed to not only lift your vehicle, but also improve ride and overall performance. Featuring a softer intial spring rate over factory springs for a smooth on-road ride. The firm secondary rate gives more stability in harsh terrain.
Important Notes1. Vehicles with radius arm mounted ride height sensors will require BDS123303.
2 .Ford recommends the replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
6. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
7. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
8. Installation requires a torque wrench capable of 406 ft-lbs.
9. Trucks without top mounted overload springs will require (4) UBT4028.
10. Vehicles with leaf spring ride height sensors must select the rear block option.

Available Options

Front Track Bar
F250/F350 2017-2024 Ford w/ 0-8" Lift - Front Adjustable Track Bar by BDS Suspension

This is not a required part because of the included track bar drop bracket in the kit, however is adjustable track bar is an upgrade over stock.

Read More

This is not a required part because of the included track bar drop bracket in the kit, however is adjustable track bar is an upgrade over stock.

$416.05
Carrier Bearing Drop
F250/350 1999-2024 Ford 4WD - Carrier Bearing Drop Kit by BDS Suspension

Recommended for models with 2 piece drive shaft to eliminate vibration issues.

Read More

Recommended for models with 2 piece drive shaft to eliminate vibration issues.

$52.2
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2024, 2023
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS2203H / BDS2203FS
Item Numberbds_bds2203h-2203fs
MPN(UPC)840416413625
Product LineLift Kits
Lift Height5 inch
