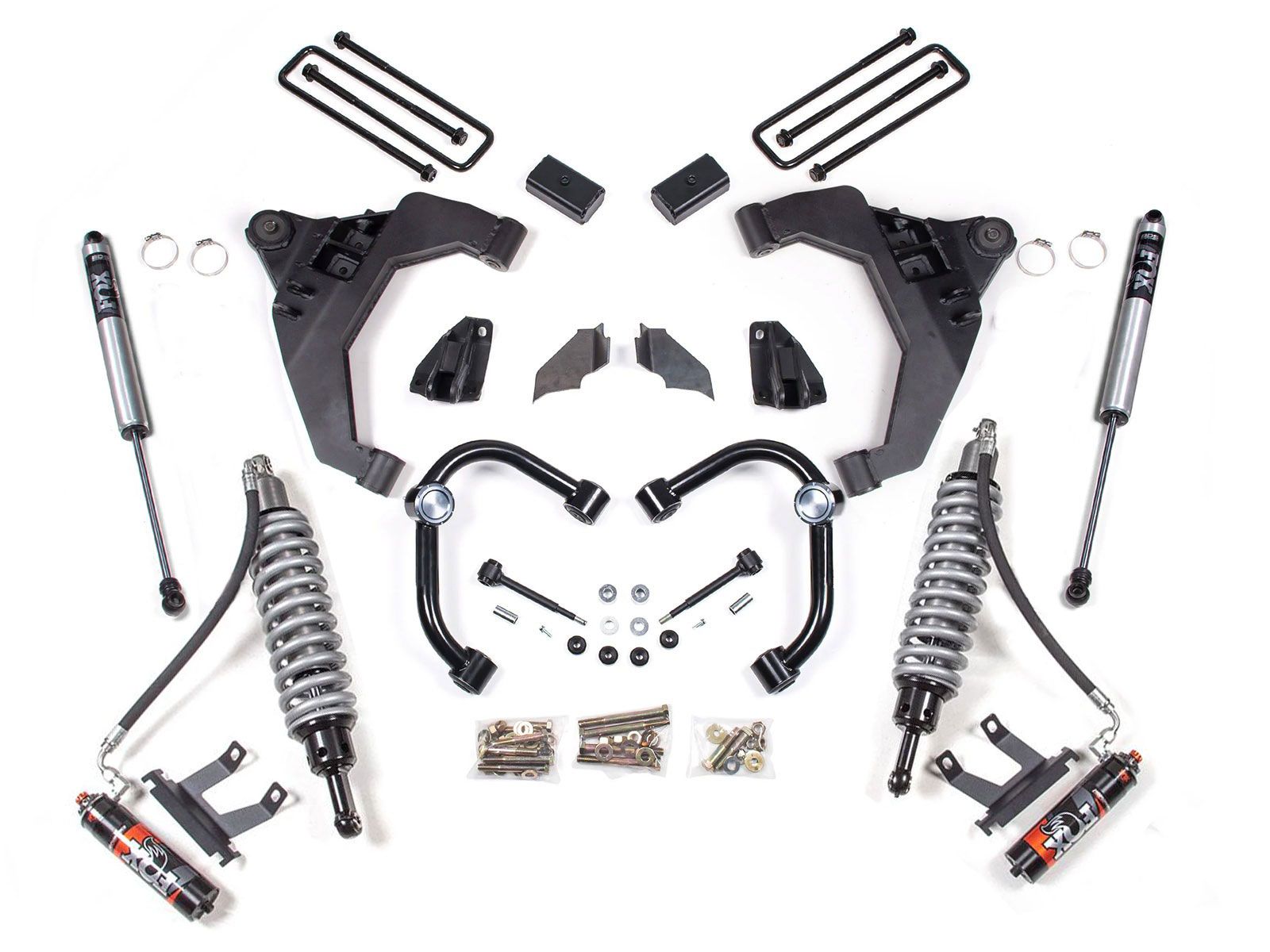

The BDS Suspension BDS723PSS / 724PSS 2-3" lift kit for the 2011 through 2019 GMC Sierra 2500HD and 3500HD trucks is an amazing suspension upgrade that allows for larger diameter tires, but more importantly, greatly improves suspension performance by replacing the factory torsion bars with Fox 2.5 Performance Elite Remote Reservoir Coil-Overs. These coil-overs improve damping for the harshest off-road terrain while maintaining a very comfortable ride on your daily commute. Using DSC (dual-speed compression) adjustment technology, these coil-overs can be fine-tuned with a simple turn of the dial to adjust how smooth or stiff you want your truck to ride. This kit includes new heavy-duty upper and lower control arms to improve strength and travel. The arms use premium Moog-brand ball joints and factory-style rubber bushings for smooth, quiet operation and superior durability compared to arms with uni-balls, poly bushings, or heims. Also included at the end are front differential relocation brackets to correct the CV axle operating angle to optimize CV performance. New sway bar end links correct the front sway bar angle to eliminate binding. A simple block and U-bolt lift the rear to maintain factory ride quality. Top Features
Tire & Wheel Combinations
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. |
Product Highlights Fox 2.0 Performance SeriesFox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.  Fox Coil-Over DSC AdjustmentThe included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.  BSD Upper Control ArmsThese included high strength 1.5" OD x .120 wall tubular upper control arms feature MOOG premium ball joints, clevite rubber bushings (more durable than poly) and an indexed ball joint cup for more wheel travel. |
| Important Notes- Minor metal trimming may be required with 35x12.50R20 on 20x9 w/5-5.5" BS
- Requires minor welding - Coilover designed for diesel trucks, can be used on gas engine trucks by adjusted preload to get ride height within 2-3" of lift using spanner wrench #129600 |
| Make | GMC |
|---|---|
| Model | Sierra 2500HD, Sierra 3500HD |
| Year Fitment | 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011 |
| 2WD/4WD | 2WD, 4WD |
| Manufacturer | BDS Suspension |
|---|---|
| Manufacturer Part Number | BDS723PSS / BDS724PSS |
| Item Number | bds_bds723pss-724pss |
| MPN(UPC) | 840416420487 |
| Product Line | Lift Kits |
| Lift Height | 3 inch |
