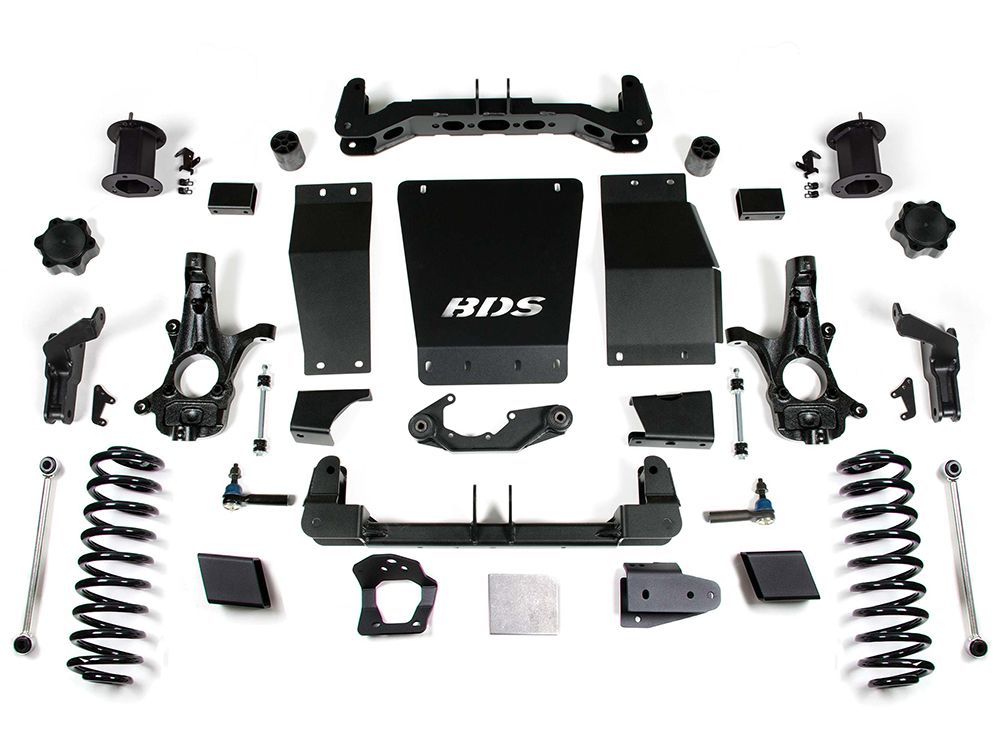

The BDS Suspension BDS751H 6 inch premium suspension lift kit for the Chevy Tahoe with Magneride will allow for fitment of up to 35 inch diameter tires for a great off-road look. Featured are a pair of 1/4" steel high clearance crossmembers and full width modular differential skid plate to reposition the lower arms and add protection of vital drivetrain components. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe and correct suspension and steering geometry to be compatible with the factory installed ESC system. Differential relocation brackets and CV spacers are used to correct the front axle positioning for stock-like CV axle angles and to retain use of the factory front driveshaft. A specially designed top mounted strut spacer is used for compatibility with the factory Magneride struts along with sensor brackets. Rounding out the front kit are a pair of replacement tie rod ends, longer sway bar links, brake line brackets, and a front laser cut BDS skid plate.

In the rear a pair of a 5" ProRide coil springs are supplied to lift and level the stance. These offer improve offroad performance and more travel from the rear suspension. To correct the rear suspension geometry with the taller coils installed a pair of heavy duty adjustable upper control arms are supplied along with a track bar relocation bracket and support brace and longer sway bar links. The rear ride sensors are relocated using the supplied brackets along with rear shock extensions to retain the factory electronic dampers.

This kit is available for all three factory control arm configurations (cast steel, stamped steel, and aluminum) so be sure to verify your factory control arm type before ordering. (see image above for details).

Top Features:

• 6 inch front lift / 5 inch rear lift for level ride
• Made specifically for models with Magneride to retain factory functionality
• High Clearance heavby duty crossmembers
• CNC machined ductile iron replacement steering knuckles
• Pro-Ride Rear Coil Springs giver improved performance and more suspension travel
• Heavy duty front diff skid plates
• Estimated Install Time: 8hours
• No Fine Print Lifetime Warranty (you break it, we replace it)
• Best Quality and Engineering in the Industry
• Proudly Made in the USA

Wheel Combinations

• 33" x 12.50" w/17 x 8 and 4.5" back spacing
• 34" x 12.50" w/18 x 9 and 5" back spacing
• 35" x 12.50" w/20 x 9 and 5.75" back spacing
• Trimming may be required
