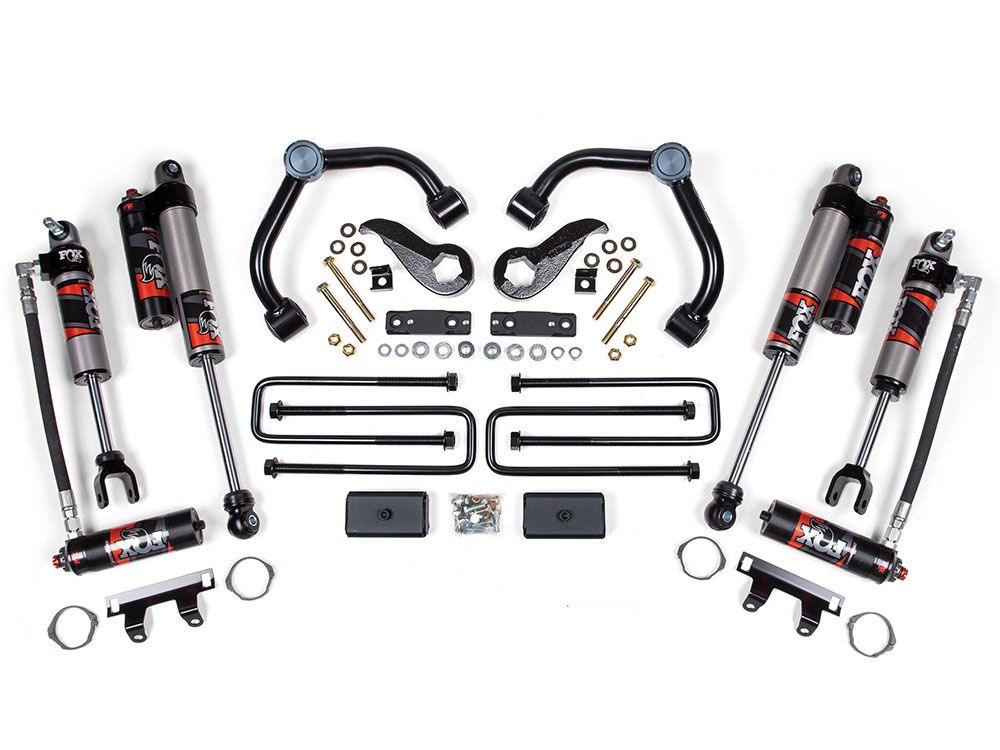

3" 2020-2026 GMC Sierra 2500HD/3500HD 2WD & 4WD Lift Kit w/Fox 2.5 Reservoir Shocks by BDS Suspension

This premium-quality BDS Suspension BDS760FPE/761FPE 3-inch lift kit, featuring 2.5-reservoir Fox Shocks for the GMC Sierra 2500HD / 3500HD, allows for the use of up to 35-inch tires. Built around a set of heavy-duty tubular upper control arms designed for improved strength and suspension travel. Built from thick-wall 1.5" DOM tubing, and uses an indexed ball joint cup to reposition the upper ball joints to allow more droop travel. These arms come fully assembled right out of the box, featuring high-quality greaseable ball joints and rubber bushings for long life, quiet operation, and superior corrosion resistance compared to uniballs and heims. Along with the control arms, a pair of indexed cast steel torsion bar keys is supplied up front to lift the vehicle. A small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used, which maintains the proper operating angle.

In the rear, a 2-inch block and U-bolt kit are used to create a level to slightly tail-high stance when unloaded.

Rounding out these kits are a set of specially tuned Fox 2.5 Performance Elite Series shocks at each corner. These large aluminum-bodied shocks feature Dual-Speed Compression reservoirs for additional damping capacity, improved heat dispersion, and a tunable ride.

Features and Benefits

• Lifts vehicle 3 inch front / 2 inch rear
• Heavy duty tubular upper control arms
• Indexed ball joint cup to allow more droop travel
• Cast steel torsion bar keys
• Greaseable ball joints and rubber bushings for long life
• Rear block and u-bolts
• Allows use of up 35 inch tires
• Made in the USA
• Average Install Time: 3 to 4 hours
• Fox 2.5 Performance EliteShocks
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Tire & Wheel Combinations

• Tires: 35 x 12.50, Wheels: 20x9, Backspacing: 5.5 to 5.75 inch
• Tires: 295/60 w/20x9 and Backspacing 5.5 to 5.75 inch
• Tires: 285/65 w/20x9 and Backspacing 5-6.18 inch

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase.

• Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool # CH48809
• Compatible with gas or diesel models
• Compatible with AT4 models
• Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet
