4084.01

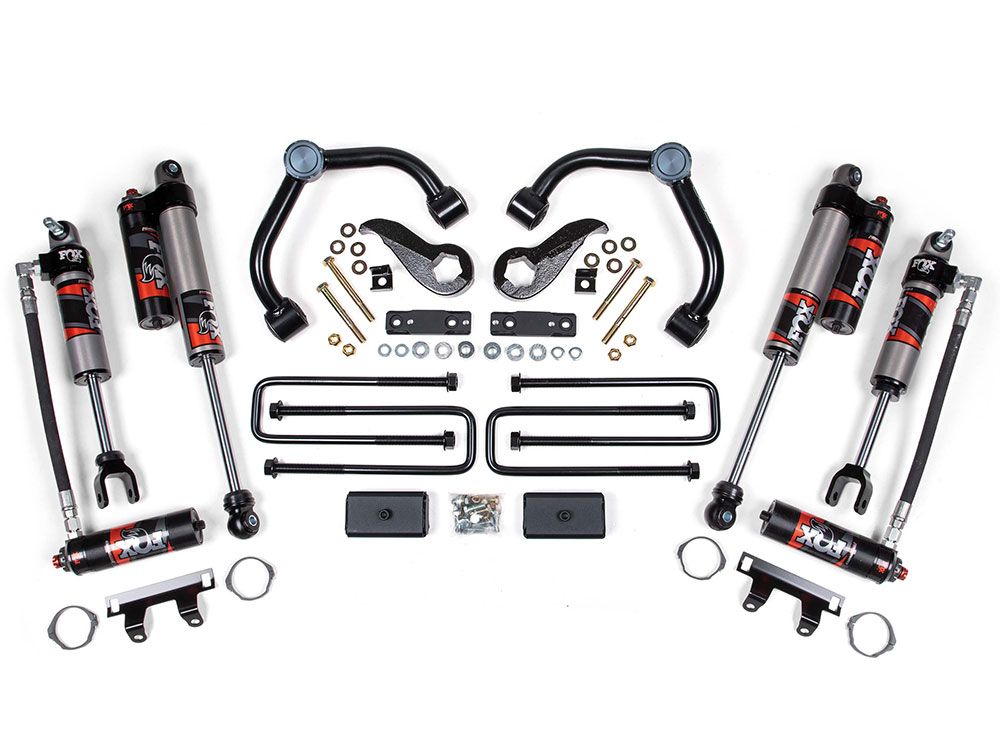

3" 2020-2021 Chevy Silverado 2500HD/3500HD 2WD & 4WD Lift Kit w/Fox 2.5 Reservoir Shocks by BDS Suspension

Brand: BDS Suspension | SKU: 760FPE
As low as $4,084.01 Regular Price $4,492.41

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

Choose an Option...
  • Choose an Option...
  • Vehicle not equipped w/Factory Overloads
  • Vehicle equipped w/Factory Overloads
- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

This premium quality BDS 760FPE 3 inch lift kit w/2.5 Reservoir Fox Shocks for the Chevy Silverado 2500HD / 3500HD allows for use of up to 35 inch tires.  Built around a set of heavy duty tubular upper control arms  designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, and use an indexed ball joint cup to reposition the upper ball joints to allow more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied up front to lift vehicle. A small differential relocation kit is supplied to correct CV axle operating angles without effecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle.

In the rear a 2 inch block and u-bolt kit is used to create a level to slightly tail high stance when unloaded.

Rounding out these kits are a set of specially tuned Fox 2.5 Performance Elite Series shocks at each corner. These large aluminum-bodied shocks feature Dual Speed Compression reservoirs for additional damping capacity, better heat dispersion and tuneable ride.

Features and Benefits

  • Lifts vehicle 3 inch front / 2 inch rear
  • Heavy duty tubular upper control arms
  • Indexed ball joint cup to allow more droop travel
  • Cast steel torsion bar keys
  • Greaseable ball joints and rubber bushings for long life
  • Rear block and u-bolts
  • Allows use of up 35 inch tires
  • Made in the USA
  • Average Install Time: 3 to 4 hours
  • Fox 2.5 Performance Elite Shocks
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • Tires: 35 x 12.50, Wheels: 20x9, Backspacing: 5.5 to 5.75 inch
  • Tires: 295/60 w/20x9 and Backspacing 5.5 to 5.75 inch
  • Tires: 285/65 w/20x9 and Backspacing  5-6.18 inch

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Installation Instructions

760FPE Instructions
Important Notes
  • Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool # CH48809
  • Compatible with gas or diesel models
  • Compatible with AT4 models
  • Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet
  • Compatible with DRW models, use w/ overload rear box kit #011217
Vehicle Fitment
MakeChevy
ModelSilverado 2500HD, Silverado 3500HD
Year Fitment2021, 2020
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number760FPE
Item Numberbds_760fpe
Product LineSuspension Lift Kit
Lift Height3 inch



Warning - Cancer and Reproductive HarmWARNINGCancer and Reproductive Harm. www.p65warnings.ca.gov/
