2" 2019-2026 GMC Sierra 1500 4WD & 2WD Snap Ring Coilover Lift Kit by BDS Suspension

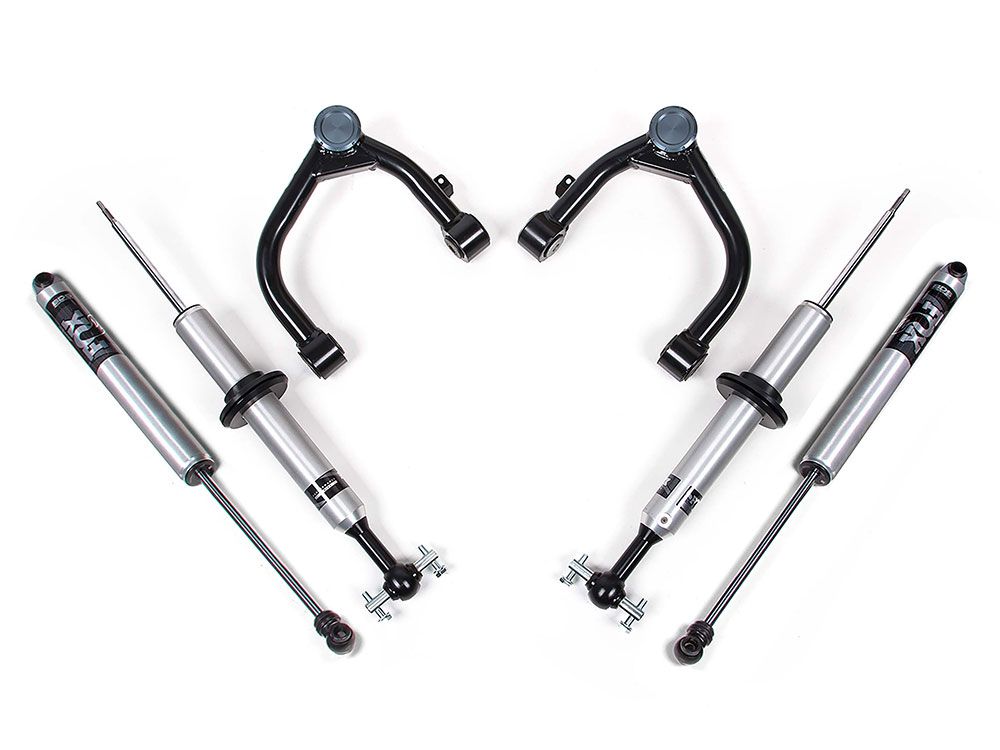

This BDS Suspension BDS770FSR Snap Ring Coilover Lift Kit for the GMC Sierra 1500 is designed to enhance the factory front suspension, providing a performance upgrade with a level stance. Featuring Fox 2.0 Performance Series snap ring coilovers that are designed to be used with the factory coil springs and top plate. The included collars pair with the factory coil springs to provide up to 2 inches of front lift. These coilovers feature a machined 6061-T6 aluminum body for improved heat dispersion.

A pair of Fox 2.0 Performance series IFP shocks is supplied to complement the front performance with the rear.

BDS performance upper control arms are designed with strength and suspension travel in mind. Built out of thick 1.5" tubing, the control arms use an indexed ball joint cup to reposition the upper ball joints, allowing more droop travel. Utilizing high-quality, greaseable rubber ball joints and rubber bushings provides a longer lifespan, quieter operation, and greater corrosion resistance compared to uniballs and heims.

Features and Benefits:

• Provides a 2" lifted and leveled stance
• Includes Fox 2.0 Performance Series Snap Ring Coilovers
• Includes BDS Performance Upper Control Arms
• Includes Fox 2.0 Performance rear shocks
• Allows for larger tire and wheel setup *minor trimming may be required*
  • 295/70 w/17x9 stock backspacing
  • 295/65 w/18x9 stock backspacing
  • 295/60 w/20x9 stock backspacing
• Estimated install: 3-4 hours
• Made in the USA
