4.5" 2007-2015 Toyota Tundra 4wd & 2wd Fox CoilOver Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: 814F
- +

4.5" 2007-2015 Toyota Tundra 4wd & 2wd Fox CoilOver Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 814F
As low as $3,839.81 Regular Price $4,082.55

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

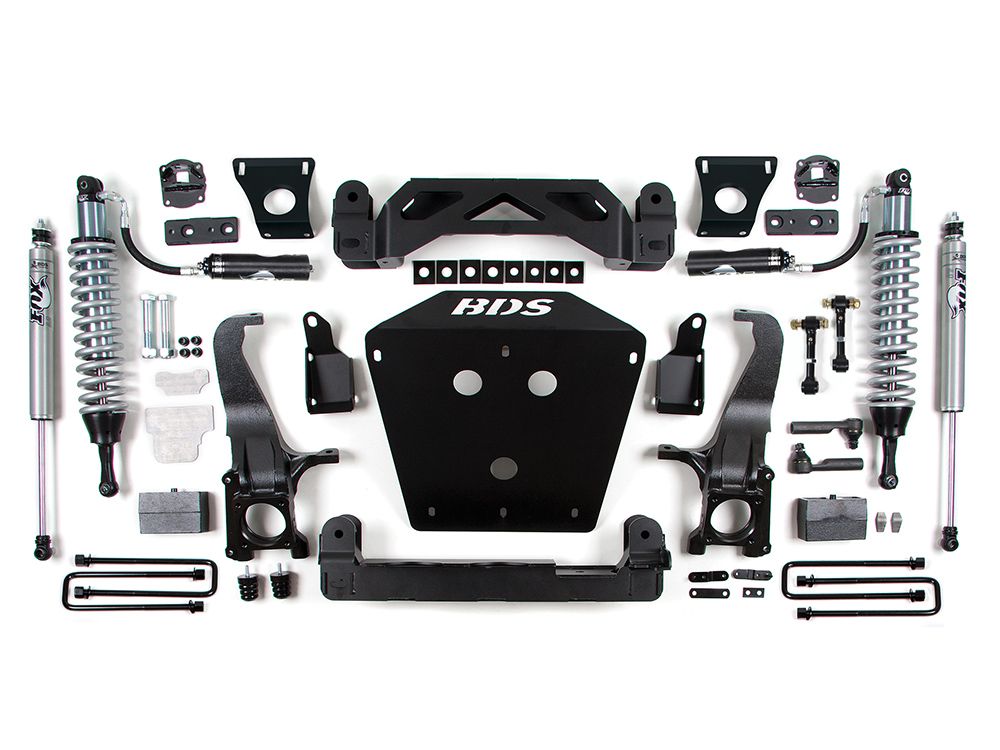

This premium quality BDS 814F 4.5 inch lift kit for the 2007 thru 2015 Toyota Tundra is built around Fox 2.5 remote reservoir coilovers for the ultimate suspension system for on and off-road performance.  Included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance.  A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles.  To lift the rear end of the Tundra 4 inch axle blocks, extended ubolts and brake line relocation brackets are included.

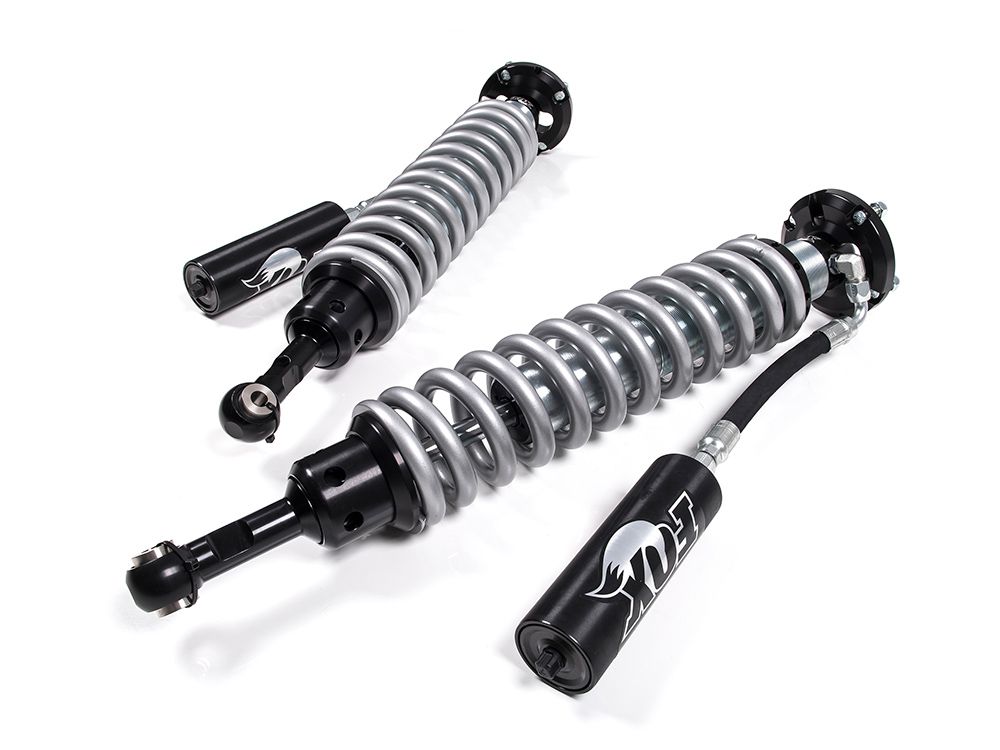

Nothing complements this BDS Suspension better than the race proven design of Fox 2.5" remote reservoir coil-over front shocks. These have been specifically engineered to fit the BDS Suspension system and feature an external reservoir for increased oil cooling capacity and nitrogen volume for a more consistent and comfortable ride. These have also been pre-set by BDS to the correct ride height for an easy installation, but can also be fined tuned to your liking.  These are paired with Fox 2.0 Performance rear shocks.

Top Features

  • 4.5 inch front lift / 3 inch rear lift, for level stance
  • Allows for use of 35 inch tires
  • Premium Quality Components
  • Fox 2.5 Remote Reservoir Coil-Overs
  • Fox 2.0 Performance Rear Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Extended Sway Bar End Links
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Warranty
  • Estimated Install Time: 8 Hours

Tire & Wheel Combinations

  • 35 x 12.50 w/18x9 and 5-1/2 back spacing
  • 35 x 12.50 w/20x9 and 5-1/2-6-1/4 back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes- Requires frame bracket modification and welding.
- No strut dissassembly required.
- Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
- Models with two piece rear drive line would require rear drive shaft modification.
- When kit is installed on 2WD models, the differential brackets will not be used.
- ***Will work with Bilstein (yellow) factory front struts on 2014-2015 models.***
- Models equipped with 6 piston calipers require modification.
- Will NOT work on 2015 TRD Pro Models.
Vehicle Fitment
Year Fitment2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number814F
Item Numberbds_814f
Product LineLift Kits
Lift Height4 inch
