1" 2016-2023 Toyota Tacoma 4WD Snap Ring Coilover Leveling Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS829FSR
- +

1" 2016-2023 Toyota Tacoma 4WD Snap Ring Coilover Leveling Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS829FSR
Special Price $1,656.94 Regular Price $1,690.75

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

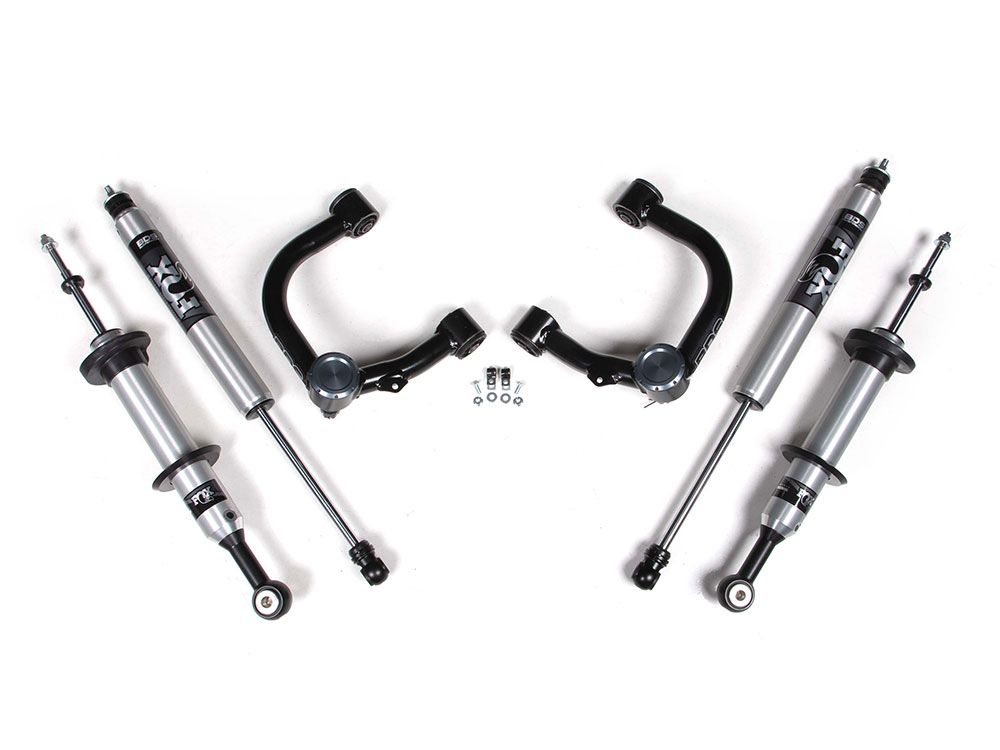

The BDS Suspension BDS829FSR 1 inch snap ring coilover suspension lift kit for the Toyota Tacoma truck will allow for fitment of up to 265/75R16 tires for a great off-road look. Featuring Fox 2.0 performance IFP Struts that are adjustable in height allowing up to 1 inch of lift due to the snap ring grooves. These coilovers utilize the factory coil springs and top plates making this a more affordable coilover lift option.

The specially tuned Fox 2.0 Performance IFP struts are non-reservoir struts, designed to be used with the factory spring/top plate and offer the option to adjust the front ride height based on the snap rings grooves, ensuring a level ride. This is a direct bolt-in replacement for the factory assemblies which improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion. The Internal Floating Piston (IFP) is put in place in order to eliminate oil aeration.

Also included is a front pair of performance upper control arms, designed for improved strength and suspension travel. Built from thick wall 1.5" tubing the control arms utilize an indexed ball joint cup, repositioning the upper ball joints and allowing for more travel under suspension droop. The upper control arms included high quality greaseable ball joints and rubber bushings, providing a quiet operation and superior corrosion resistance over OEM arms.

Matching the performance of the front end, rear Fox 2.0 IFP shocks are supplied.

Features and Benefits:

  • Lifts front of Tacoma 1 inches
  • High performance tubular upper control arms with Clevite OEM style rubber bushings
  • UCA (upper control arms) give improved suspension travel
  • Fox 2.0 Performance Series IFP Struts included
  • Fox 2.0 Performance Series IFP shocks included
  • Proudly made in the USA, using only premium quality components
  • Average Install Time: 3-4 hours
  • Difficulty level (easy 1 - 5 Complicated:) 2
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations:

  • 265/75R16 w/stock wheels and stock backspacing

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Important Notes1. Minor welding required
2. Requires frame bracket modification
3. Strut compressor required for installation
4. Stock wheels cannot be reinstalled
5. System will work on 2WD PreRunner models
6. Can not use 17" wheels.
7.Kit will work with TRD PRO models, but will only net .5" of lift
8.TRD Skid plate must be modified to be reinstalled
Vehicle Fitment
Year Fitment2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS829FSR
Item Numberbds_bds829fsr
Product LineLeveling Kits
Lift Height1 inch
