2" 2024-2026 Toyota Tacoma 4WD Fox 2.5 Performance HTO Coilover Leveling kit by BDS Suspension

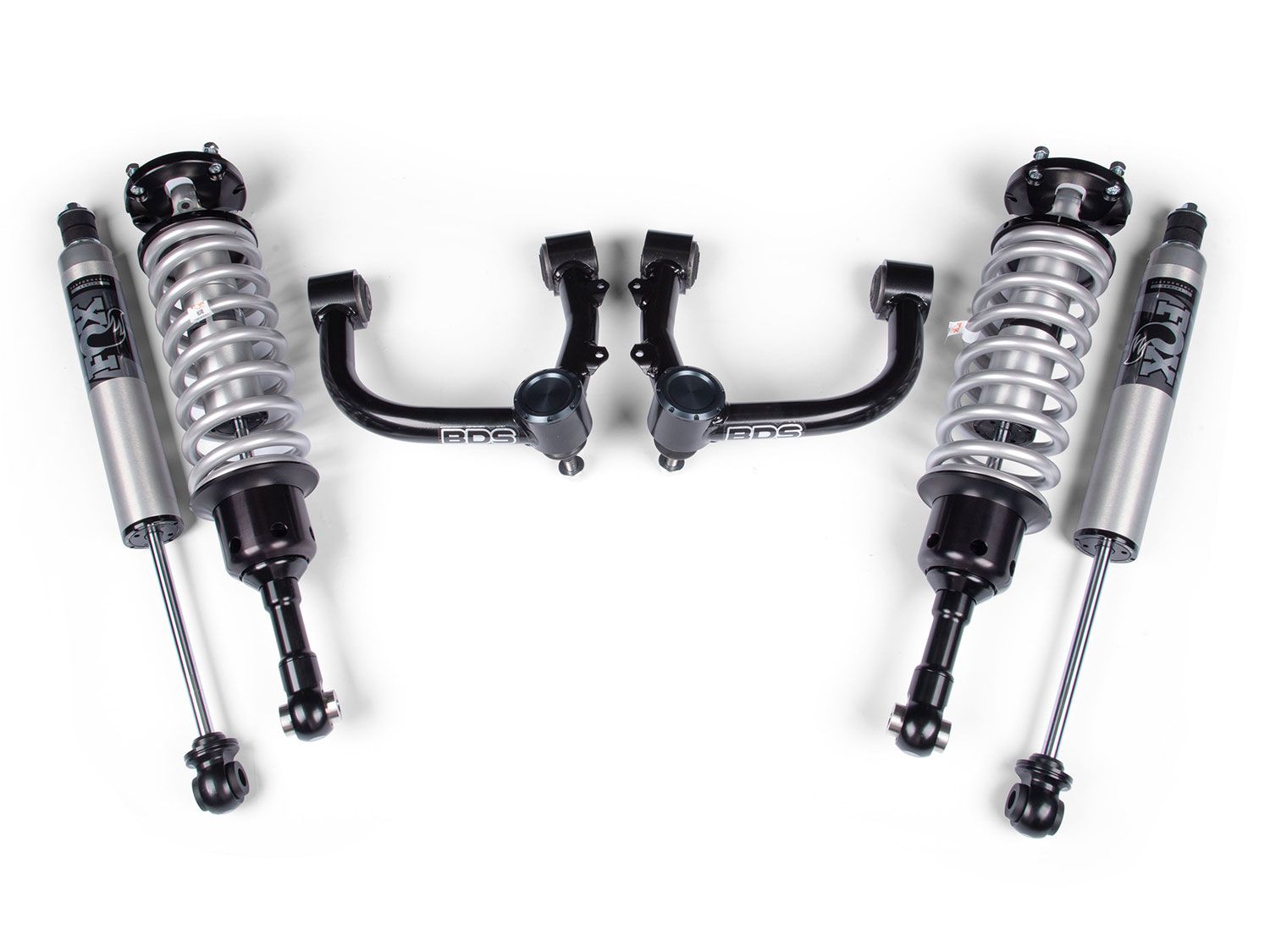

The BDS BDS843FPS 2-Inch Suspension Leveling Kit with FOX 2.5 Performance Series HTO coilovers and rear shocks for 2024-up Toyota Tacoma models is a performance-focused suspension upgrade that increases front ride height, improves tire clearance, and provides greater suspension control on pavement and off-road terrain. The system combines FOX 2.5 Performance Series HTO front coilovers with tune-matched rear shocks and heavy-duty BDS tubular upper control arms. Approximately 2 inches of front lift creates a more level stance while providing clearance for up to 33-inch tires.

Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing to increase strength and improve front suspension geometry at the taller ride height. Indexed ball joint cups reposition the ball joints to maintain more favorable operating angles, increase usable suspension travel, and support proper alignment compared with the factory upper control arm configuration. The geometry-corrected control arms work with the FOX coilovers to create a stronger and more capable front suspension system for Tacoma builds used for daily driving, trail exploration, and demanding off-road terrain.

FOX 2.5 Performance Series HTO coilovers and rear shocks use large 2.5-inch impact-extruded aluminum bodies to increase fluid capacity and promote effective heat dissipation during demanding use. Hydraulic Top Out technology provides position-sensitive rebound damping as the suspension approaches full extension, helping control top-out forces and maintain a more composed suspension response over uneven terrain. Hard chrome-plated, heat-treated 5/8-inch alloy steel shafts provide durability under repeated suspension loads, while the fully serviceable design supports long-term performance.

The tune-matched FOX 2.5 Performance Series HTO rear shocks complement the front coilovers to provide balanced damping throughout the Tacoma suspension. Increased shock capacity and position-sensitive rebound control help improve body control, suspension consistency, and overall ride quality across changing road and trail conditions. Combined with BDS upper control arms and a 2-inch front lift, the BDS843FPS delivers a well-rounded Tacoma suspension upgrade with increased wheel travel, improved geometry, added tire clearance, and enhanced off-road capability.

Features & Benefits

• Provides approximately 2 inches of front suspension lift for a more level stance
• Designed for 2024-up Toyota Tacoma models
• Includes FOX 2.5 Performance Series HTO front coilovers
• Includes tune-matched FOX 2.5 Performance Series HTO rear shocks
• Matched front and rear FOX damping provides balanced suspension performance
• Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing
• Indexed ball joint cups improve front suspension geometry at the increased ride height
• Corrected ball joint positioning increases usable suspension travel over the factory upper control arms
• Revised upper control arm geometry supports proper alignment and controlled wheel movement
• FOX 2.5 Performance Series HTO shocks use 2.5-inch impact-extruded aluminum bodies
• Increased shock fluid capacity supports consistent damping during demanding use
• Hydraulic Top Out technology provides position-sensitive rebound damping near full suspension extension
• HTO technology helps reduce harsh top-out forces over uneven terrain
• 5/8-inch hard chrome plated heat-treated alloy steel shock shafts provide increased durability
• FOX Performance Series HTO shocks are fully serviceable for long-term performance
• Tune-matched rear shocks complement the front coilovers for consistent front-to-rear damping
• Improves suspension control, wheel travel, and off-road capability while maintaining everyday drivability
• Increased front ride height provides additional ground and tire clearance
• Accommodates up to 33-inch tires with properly configured wheels
