2" 2024-2026 Toyota Tacoma 4WD Fox 3.0 Factory Race Series Coilover Premium Leveling Kit by BDS Suspension

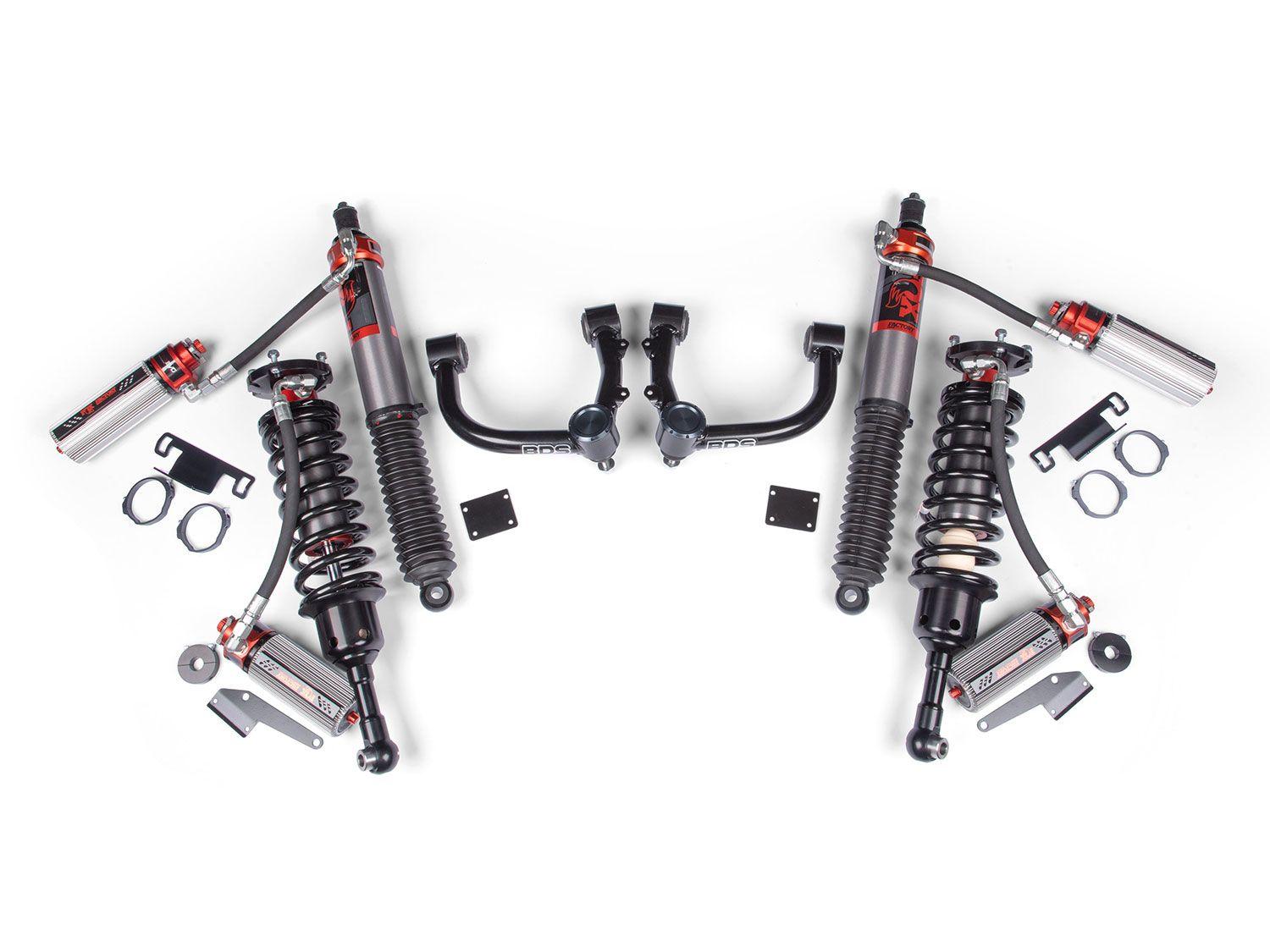

The BDS BDS843FRS 2-Inch Suspension Leveling Kit with FOX 3.0 Factory Race Series HTO coilovers and rear shocks for 2024-up Toyota Tacoma models is a high-performance suspension upgrade that increases front ride height, improves tire clearance, and delivers advanced damping control for demanding street and off-road use. The system combines FOX 3.0 Factory Race Series HTO front coilovers with tune-matched rear shocks and heavy-duty BDS tubular upper control arms. Approximately 2 inches of front lift creates a more level stance while providing clearance for up to 33-inch tires.

Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing to increase strength and improve front suspension geometry at the taller ride height. Indexed ball joint cups reposition the ball joints to maintain more favorable operating angles, support proper alignment, and increase usable suspension travel compared with the factory upper control arms. The revised geometry works with the FOX coilovers to create a stronger and more capable front suspension configuration for Tacoma builds that see daily driving, trail use, and aggressive off-road terrain.

FOX 3.0 Factory Race Series HTO coilovers and rear shocks use large 3-inch aluminum bodies with position-sensitive internal bypass technology to provide controlled damping throughout the suspension travel. The internal bypass design allows the shocks to respond differently depending on piston position, helping maintain a compliant ride through normal movement while increasing control near full compression and extension. Finned aluminum remote reservoirs with Recirculating Reservoir Bridge technology increase fluid capacity and improve heat dissipation during prolonged or demanding use.

Dual-speed compression adjusters let you tune high-speed and low-speed compression tool-free, tailoring suspension response to terrain, vehicle load, and driving conditions. Massive 7/8-inch, hard chrome-plated, heat-treated alloy steel shafts increase strength against hard impacts, while the fully serviceable construction supports long-term performance. With BDS geometry-correcting upper control arms and a 2-inch front lift, the BDS843FRS delivers race-derived suspension control, increased wheel travel, added tire clearance, and exceptional performance for serious Tacoma builds.

Features & Benefits

• Provides approximately 2 inches of front suspension lift for a more level stance
• Designed for 2024-up Toyota Tacoma models
• Includes FOX 3.0 Factory Race Series HTO front coilovers
• Includes tune-matched FOX 3.0 Factory Race Series HTO rear shocks
• Position-sensitive internal bypass technology provides controlled damping throughout suspension travel
• Internal bypass design increases damping control near full compression and extension
• FOX 3.0 Factory Race Series shocks use 3-inch aluminum bodies for increased fluid capacity
• Finned aluminum remote reservoirs improve heat dissipation during demanding use
• Recirculating Reservoir Bridge technology supports consistent damping and thermal management
• Dual Speed Compression adjusters provide independent high-speed and low-speed compression tuning
• Tool-free compression adjustment allows suspension response to be tailored for terrain, load, and driving conditions
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shafts provide increased durability
• FOX Factory Race Series shocks are fully serviceable for long-term performance
• Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing
• Indexed ball joint cups improve suspension geometry at the increased ride height
• Corrected ball joint positioning increases usable suspension travel over the factory upper control arms
• Revised upper control arm geometry supports proper alignment and controlled wheel movement
• Matched front and rear FOX damping provides balanced suspension performance
• Increased front ride height provides additional ground and tire clearance
• Accommodates up to 33-inch tires with properly configured wheels
