2" 2024-2026 Toyota Tacoma Fox 2.5 Performance Elite Coilover Leveling Kit by BDS Suspension

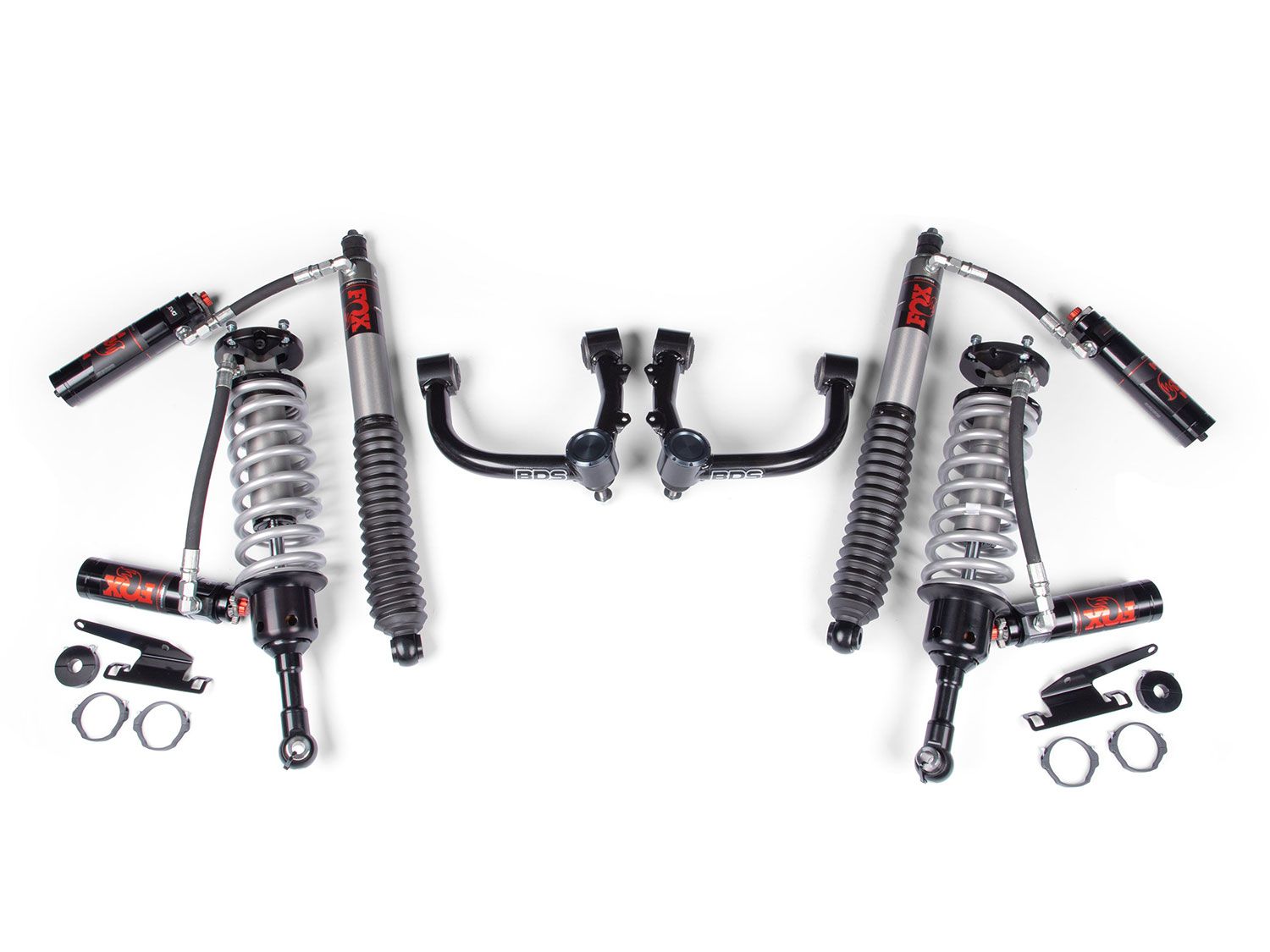

The BDS BDS843PES 2-Inch Suspension Leveling Kit with FOX 2.5 Performance Elite Series coilovers and rear shocks for 2024-up Toyota Tacoma models is a premium suspension upgrade that raises front ride height, improves tire clearance, and delivers adjustable damping for street and off-road driving. The system combines FOX 2.5 Performance Elite Series front coilovers with tune-matched rear shocks and heavy-duty BDS tubular upper control arms engineered for the increased suspension height. Approximately 2 inches of front lift creates a more level stance while providing clearance for up to 33-inch tires.

Heavy-duty BDS upper control arms are made from 1.5-inch DOM steel tubing for added strength and improved front suspension geometry at the taller ride height. Indexed ball joint cups reposition the ball joints to maintain more favorable operating angles, support proper alignment, and increase usable suspension travel compared with the factory upper control arms. The combination of geometry-corrected control arms and performance coilovers creates a stronger and more capable front suspension configuration for Tacoma builds used for daily driving, trail exploration, and more demanding off-road terrain.

FOX 2.5 Performance Elite Series coilovers and rear shocks feature 2.5-inch impact-extruded aluminum bodies with external reservoirs that separate the shock oil from the high-pressure nitrogen charge. The increased fluid capacity and remote reservoir design improve heat management and damping consistency during extended or aggressive driving. Massive 7/8-inch, hard chrome-plated, heat-treated alloy steel shafts add strength, while the FOX Dual Speed Compression adjusters let you tune suspension response for terrain, load, and speed.

The matched FOX 2.5 Performance Elite Series suspension package offers greater damping capacity and adjustability than a standard non-reservoir shock system. Independent high-speed and low-speed compression adjustment lets you fine-tune body control, impact response, and overall ride characteristics without replacing suspension components. Combined with BDS upper control arms and a 2-inch front lift, the BDS843PES delivers a performance-focused Tacoma suspension upgrade with increased wheel travel, added tire clearance, adjustable damping, and improved control on pavement and off-road terrain.

Features & Benefits

• Provides approximately 2 inches of front suspension lift for a more level stance
• Designed for 2024-up Toyota Tacoma models
• Includes FOX 2.5 Performance Elite Series front coilovers
• Includes tune-matched FOX 2.5 Performance Elite Series rear shocks
• Matched front and rear FOX damping provides balanced suspension performance
• Heavy-duty BDS upper control arms are constructed from 1.5-inch DOM steel tubing
• Indexed ball joint cups improve suspension geometry at the increased ride height
• Corrected ball joint positioning increases usable suspension travel over the factory upper control arms
• Revised upper control arm geometry supports proper alignment and controlled wheel movement
• FOX 2.5 Performance Elite Series shocks use 2.5-inch impact-extruded aluminum bodies
• External reservoirs increase fluid capacity and improve heat management during demanding use
• Reservoir design separates shock oil from the high-pressure nitrogen charge for consistent damping
• Massive 7/8-inch hard chrome-plated heat-treated alloy steel shafts provide increased durability
• Dual Speed Compression adjustment allows suspension response to be tuned for terrain, load, and vehicle speed
• Independent high-speed compression adjustment helps control larger and more abrupt suspension impacts
• Independent low-speed compression adjustment allows additional tuning of body control and ride response
• FOX Performance Elite Series shocks are fully serviceable for long-term performance
• Improves suspension control and wheel travel while maintaining everyday drivability
• Increased front ride height provides additional ground and tire clearance
• Accommodates up to 33-inch tires with properly configured wheels
