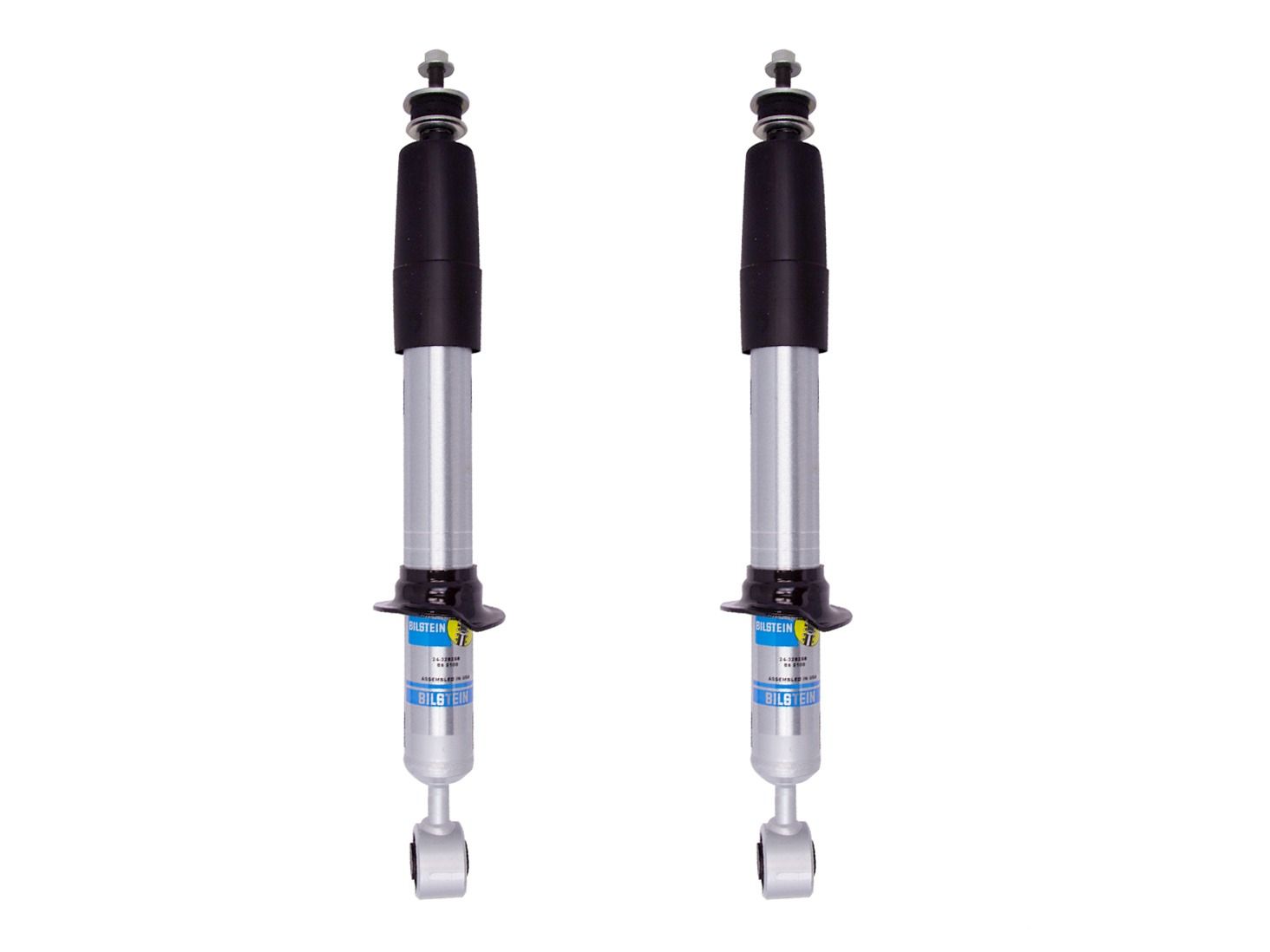

Tundra 2022-2024 Toyota 4WD & 2WD - Bilstein FRONT 5100 Series Adjustable Height Shocks (0-2.4" Front Lift / Pair)

Bilstein B8 5100 (Ride Height Adjustable) 24-329200 shock absorbers designed for the Toyota Tundra 4wd & 2wd feature multiple snap-ring grooves in the body to allow for different spring seat positions, providing 0 to 2.4 inches of front lift with OE springs (depending on application). These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting.  Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein Adjustable Height 5100 Series shocks are perfect for trucks and SUVs to add a small lift and oversized tires.  The extra demands larger tires and a taller stance require more suspension performance.  Bilstein's patented digressive valving is perfect for these conditions.

This package includes the driver and passenger side shocks.

Features & Benefits

• Adjustable Lift Height, Multiple Positions
• Great solution to level vehicle
• Includes (2) Shocks; driver and passenger sides
• Front shocks adjust from 0 to 2.4 inches of front lift height
• High-Pressure Mono-Tube Design
• 46mm digressive piston with a self-adjusting deflective disc valve setting
• Replaces Factory Struts, Keeps Coil Springs
• Snap-ring grooves (6 total) in the body allow included spring seat to sit at multiple locations
• Zinc Plated Finish with Clear Coat for Maximum Protection
• Limited Lifetime Warranty

Shock Specs

• Extended Length: 20.22 inches
• Compressed Length: 15.91 inches
• Finish: Zinc Plated
• Body: Snap Ring Grooved
• Body Diameter: 46mm

All LIft Height Settings:

• Position #1: Stock (4WD & 2WD)
• Position #2: .7 inch (4WD), .6 inch (2WD)
• Position #3: 1.3 inch (4WD), 1.1 inch (2WD)
• Position #4: 1.8 inch (4WD), 1.5 inch (2WD)
• Position #5: 2.3 inch (4WD), 2.0 inch (2WD)
• Position #6: Do not use (4WD), 2.4 inch (2WD)
