3" 2010-2013 Dodge Ram 2500 4wd (w/Diesel Engine) Commuter Lift System by Carli Suspension

This Carli Suspension CS-D3-COM-CS-10-D 3-inch Commuter lift system for Dodge Ram 2500 4WD diesel models is a premium lift kit that raises your vehicle enough to fit up to 37-inch x 12.5-inch tires. It is perfect for Ram owners who want the best on-road ride quality and do not plan on doing much off-roading.

This lift system features 3-inch lift front coil springs with a slightly reduced multi-rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 Performance Series shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and excellent heat dispersion. An internal reservoir with a 5/8-inch diameter, hardened steel, chrome-plated shaft is also featured.

An adjustable front track bar is included to keep the front axle appropriately centered. In typical Carli fashion, this bar has features not found in other track bars. This includes 3/8-inch DOM construction that allows for the use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear, you have the choice of no lift or upgrading to the Carli progressive add-a-pack, which replaces the factory overload spring and improves comfort, traction, and handling.

Features & Benefits:

• 3-inch front lift / 0 to 1.5-inch rear lift (optional rear lift)
• Premium lift kit optimized for on-road ride quality
• Front multi-rate coil springs - with reduced multi-rate to improve the ride quality
• Carli SPEC 2.0 IFP Front and Rear Shocks - 2" diameter aluminum body with internal reservoir
• Designed to improve ride quality for on-road use greatly
• Front Travel = 10" / Rear Travel = 11"
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Lifetime warranty on components, 1-year warranty on shocks
• Allows use of up to 37-inch x 12.5 tires

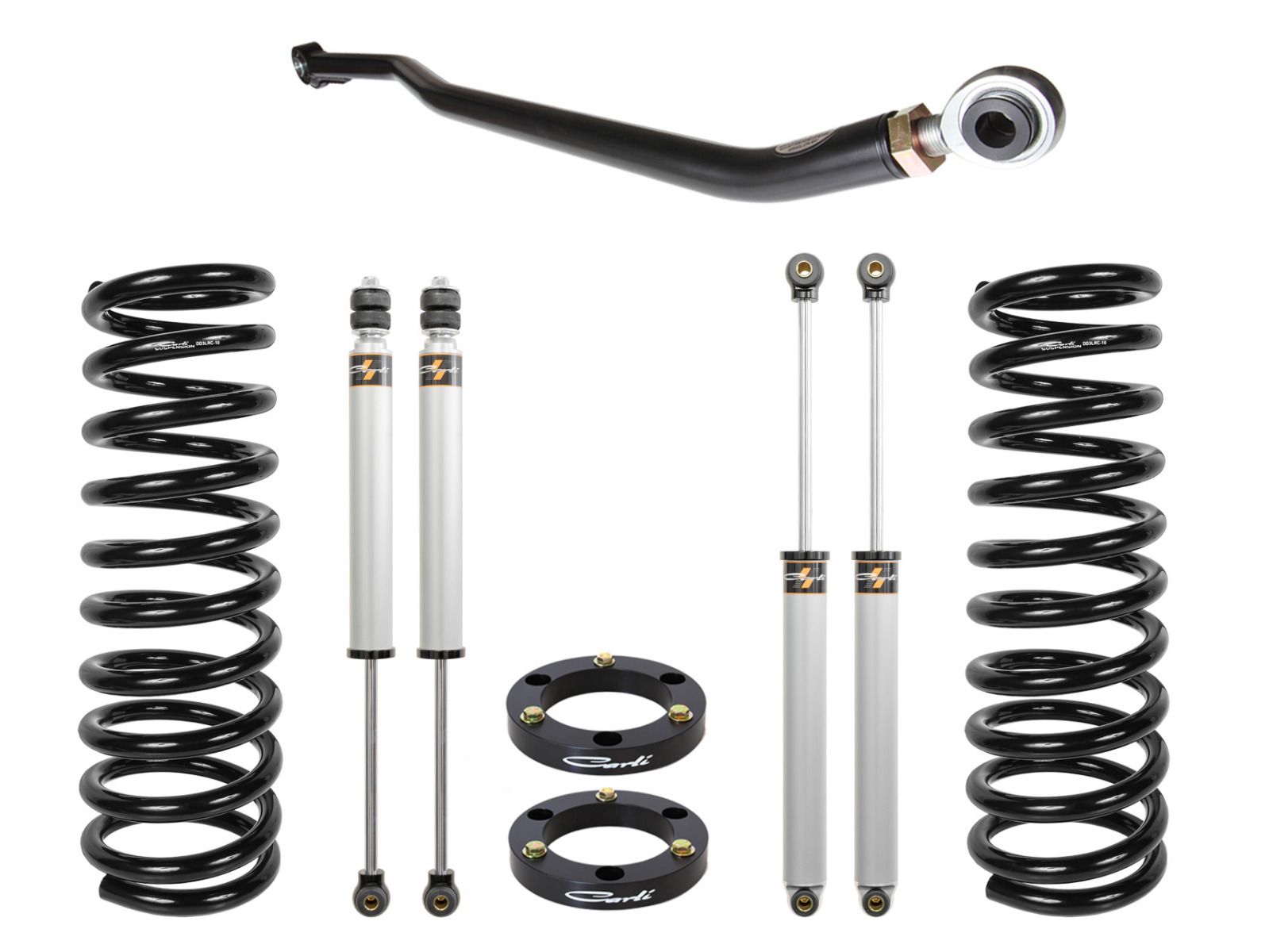

Components Included:

• CS-DLRC-10-D: Front Coil Springs
• CS-D3SPKG-CS2-IFP-D: Carli SPEC 2.0 IFP Front and Rear Shocks
• CS-DATB-03: Track Bar

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found in the option section above.
