3" 2010-2013 Dodge Ram 2500 4wd (w/Hemi Engine) Leveling System by Carli Suspension Brand: Carli Suspension | SKU: CS-DLEVEL-03-H
$830
- +
830

3" 2010-2013 Dodge Ram 2500 4wd (w/Hemi Engine) Leveling System by Carli Suspension

Brand: Carli Suspension | SKU: CS-DLEVEL-03-H
$830.00

3" 2010-2013 Dodge Ram 2500 4wd (w/Hemi Engine) Leveling System by Carli Suspension

Brand: Carli Suspension | SKU: CS-DLEVEL-03-H
$830.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply



View all Options Available for this Kit

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-DLEVEL-03-H 3 inch front leveling system for the Dodge Ram 2500 4wd Hemi models is a high quality kit that will lift the front end enough to sit level with the rear while also improving ride quality and suspension performance.

Featured in this leveling system are 3 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort. Paired with the coil springs are Carli Signature Series shock absorbers. These shocks use a 2" diameter body with Zinc plating and clear coating for corrosion resistance. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured.

Features & Benefits:

  • 3 inch front lift / 0 inch rear lift
  • High quality components
  • Front multi rate coil springs - with reduced multi rate to improve ride quality
  • Carli Signature 2.0 IFP Front and Rear Shocks - 2" diameter body with zinc plating and internal reservoir
  • Designed to improve ride quality for on-road, highway and towing/hauling
  • Front Travel = 10" / Rear Travel = stock
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 35 inch x 12.5 tires

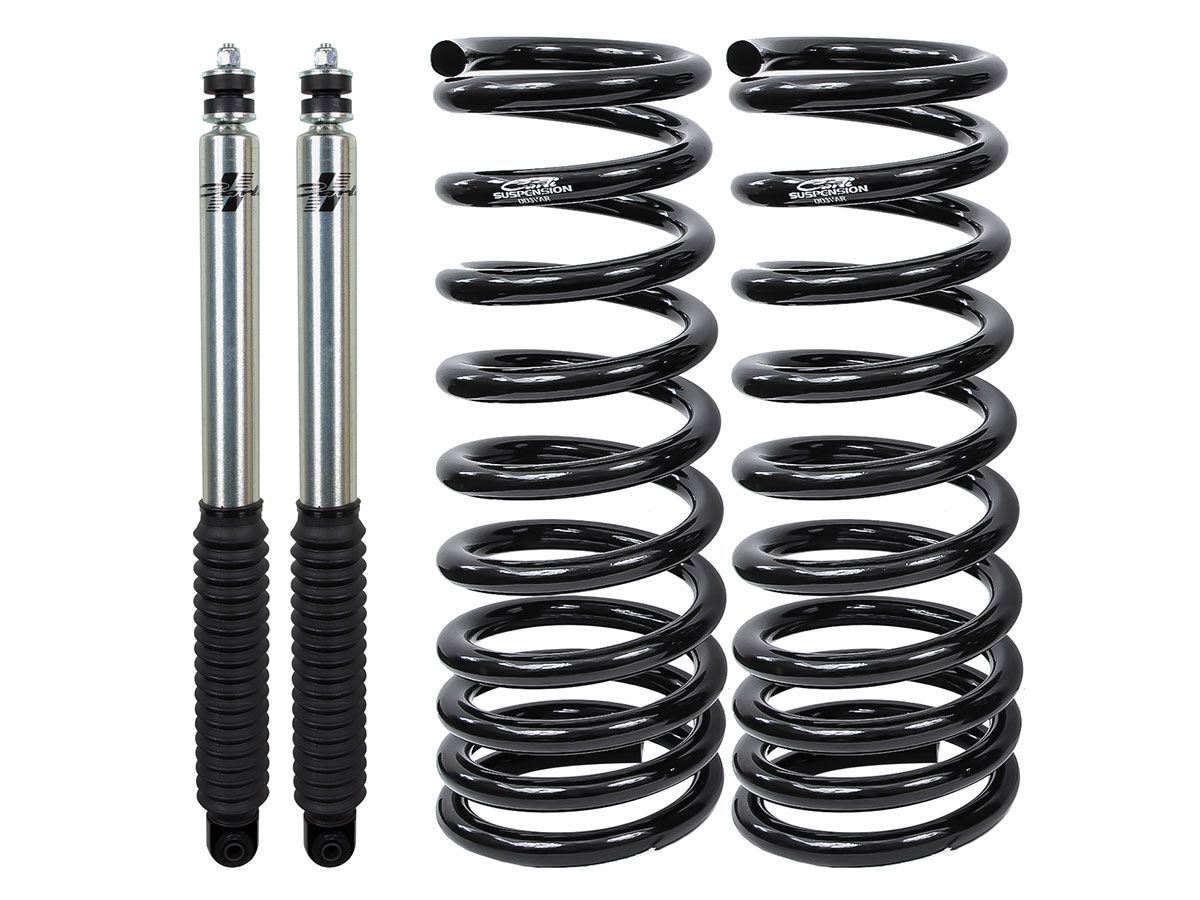

Components Included:

  • CS-DMRC-03-H: Front Coil Springs
  • AS-DSIG20FRONTSPKG-94: Carli Signature Series 2.0 IFP Shocks

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Important Notes1. Does not work with rear auto-level air suspension.
2. Fits with hemi engine only
3. Adjustable track bar not required, but recommended. The front axle will be slightly pulled to the driver side with this leveling kit. The adjustable track bar will correct this issue.
4. While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly (see options below)

Available Options

Front Sway Bar (required)
1 of 3 options
Ram 2500 2010-2013 Dodge 4WD (w/0-3" of Front Lift) Extended 10mm Front Sway Bar End Links by Carli Suspension

Carli Suspension's CS-DEL-10 Extended 10mm Front Sway Bar End Links for the Dodge Ram 2500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.

  • Adjustable length allows for fitment from stock height up to 3 inches of front lift
  • 17-4 Machined Stainless Steel
  • Eliminates sway bar binding on lifted models
  • 10mm sway bar end links
  • 1/2" FK Chromoly Rod end
  • Fits 15mm or 16mm upper sway bar link nuts
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-DEL-10 Extended 10mm Front Sway Bar End Links for the Dodge Ram 2500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.

  • Adjustable length allows for fitment from stock height up to 3 inches of front lift
  • 17-4 Machined Stainless Steel
  • Eliminates sway bar binding on lifted models
  • 10mm sway bar end links
  • 1/2" FK Chromoly Rod end
  • Fits 15mm or 16mm upper sway bar link nuts
  • Carli provides a Limited Lifetime Warranty
$265
2 of 3 options
Ram 2500 2010-2013 Dodge 4WD (w/0-3" of Front Lift) Extended 12mm Front Sway Bar End Links by Carli Suspension

Carli Suspension's CS-DEL-10-12mm Extended 12mm Front Sway Bar End Links for the Dodge Ram 2500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.

  • Adjustable length allows for fitment from stock height up to 3 inches of front lift
  • 17-4 Machined Stainless Steel
  • Eliminates sway bar binding on lifted models
  • 12mm sway bar end links
  • 1/2" FK Chromoly Rod end
  • Fitment – factory 18mm upper sway bar link nut
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-DEL-10-12mm Extended 12mm Front Sway Bar End Links for the Dodge Ram 2500 are crafted from premium 17-4 stainless steel. These adjustable end links guarantee a lifetime of use due to their superior material.

  • Adjustable length allows for fitment from stock height up to 3 inches of front lift
  • 17-4 Machined Stainless Steel
  • Eliminates sway bar binding on lifted models
  • 12mm sway bar end links
  • 1/2" FK Chromoly Rod end
  • Fitment – factory 18mm upper sway bar link nut
  • Carli provides a Limited Lifetime Warranty
$265
3 of 3 options
Ram 2500 2003-2013 Dodge 4WD (w/0-3" of Front Lift) Torsion Sway Bar by Carli Suspension

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
Read More

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
$835
Adjustable Track Bar
Ram 2500 2003-2013 Dodge 4WD (w/0-3" Front Lift) Adjustable Track Bar by Carli Suspension

Adjustable to re-center the front geometry after lifting the front-end while providing a stronger link between the suspension and steering to accommodate the larger tires.

  • Keeps front axle centered
  • Tightens Steering Feel while Extending Service Life
Read More

Adjustable to re-center the front geometry after lifting the front-end while providing a stronger link between the suspension and steering to accommodate the larger tires.

  • Keeps front axle centered
  • Tightens Steering Feel while Extending Service Life
$520
Control Arms
1 of 2 options
Ram 2500 2010-2013 Dodge 4WD (w/3" Suspension Lift) Extended Control Arms by Carli Suspension

Carli Suspension's CS-CA-MS-10 Extended Control Arm Kit for the Dodge Ram 2500 are designed for models lifted 3 inches in the front to re-center the front axle.

  • Re-centers front axle on 3" suspension kits
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • Box 0.120" wall mild steel construction
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-CA-MS-10 Extended Control Arm Kit for the Dodge Ram 2500 are designed for models lifted 3 inches in the front to re-center the front axle.

  • Re-centers front axle on 3" suspension kits
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • Box 0.120" wall mild steel construction
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
$835
2 of 2 options
Ram 2500 2010-2013 Dodge 4WD (w/3" Suspension Lift) Billet High Clearance Extended Control Arms by Carli Suspension

Carli Suspension's CS-DBCA-10 High Clearance Extended Control Arm Kit for the Dodge Ram 2500 are designed for models lifted 3 inches in the front to re-center the front axle while maximizing tire clearance.

  • Re-centers front axle on 3" suspension kits
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • 6061 Billet Aluminum Construction
  • Arms are designed for maxiumum tire clearance
  • Allows for 37 inch diameter tires (9" wide wheel, 5.75" BS) on 3 inch lift kits
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-DBCA-10 High Clearance Extended Control Arm Kit for the Dodge Ram 2500 are designed for models lifted 3 inches in the front to re-center the front axle while maximizing tire clearance.

  • Re-centers front axle on 3" suspension kits
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • 6061 Billet Aluminum Construction
  • Arms are designed for maxiumum tire clearance
  • Allows for 37 inch diameter tires (9" wide wheel, 5.75" BS) on 3 inch lift kits
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
$1360
Steering Stabilizer
1 of 3 options
Ram 2500 2008.5-2013 Dodge 4WD (T-Style Steering) Low Mount Steering Stabilizer by Carli Suspension

Carli Suspension's "Low Mount" Steering Stabilizer for the Dodge Ram 2500 will bolt into the factory location, replacing the OEM unit.  However, this is not your average replacement steering stabilizer. These Carli stabilizers feature an adjustable nitrogen charge that push's to the Left to counter-act a Right Hand Tire Pull (commonly caused by larger tires).  Pre-pressurized at 200 PSI (best for push effect), this stabilizer is equipped with a Schrader valve that allows customers to bleed the pressure to desired PSI.

  • Improves handling - Increased steering predictability, minimized volatility and reduced driver fatigue
  • Higher nitrogen charge pushes to the left to counter-act a right hand tire pull (common with larger tires)
  • IFP design (Internal Floating Piston)
  • 304 Stainless Steel Body with Aluminum Top-Cap
  • Billet Aluminum rod ends with 1/2 inch bearings
  • 17-4 stainless high-misalignment pin inside a 1/2 inch bearing for bind free performance
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • Direct bolt-on replacement for factory OEM stabilizer
Read More

Carli Suspension's "Low Mount" Steering Stabilizer for the Dodge Ram 2500 will bolt into the factory location, replacing the OEM unit.  However, this is not your average replacement steering stabilizer. These Carli stabilizers feature an adjustable nitrogen charge that push's to the Left to counter-act a Right Hand Tire Pull (commonly caused by larger tires).  Pre-pressurized at 200 PSI (best for push effect), this stabilizer is equipped with a Schrader valve that allows customers to bleed the pressure to desired PSI.

  • Improves handling - Increased steering predictability, minimized volatility and reduced driver fatigue
  • Higher nitrogen charge pushes to the left to counter-act a right hand tire pull (common with larger tires)
  • IFP design (Internal Floating Piston)
  • 304 Stainless Steel Body with Aluminum Top-Cap
  • Billet Aluminum rod ends with 1/2 inch bearings
  • 17-4 stainless high-misalignment pin inside a 1/2 inch bearing for bind free performance
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • Direct bolt-on replacement for factory OEM stabilizer
$335
2 of 3 options
Ram 2500 2008.5-2013 Dodge 4wd (w/lifted suspension & T-Style Steering) High Mount Steering Stabilizer by Carli Suspension

Carli Suspension's CS-DHMSS-03-T "High Mount" Steering Stabilizer for the Dodge Ram 2500 is a bolt-on upgrade that works with the factory OEM or Carli Low Mount Stabilizer. This stabilizer is mounted above factory location (tie-rod) and instead mounted to the drag link and chassis (near the sway bar frame mount). This Carli stabilizer features an adjustable nitrogen charge that push's to the Left to counter-act a Right Hand Tire Pull (commonly caused by larger tires).  Pre-pressurized at 200 PSI (best for push effect), this stabilizer is equipped with a Schrader valve that allows customers to bleed the pressure to desired PSI.

  • Improves handling - Increased steering predictability, minimized volatility and reduced driver fatigue
  • Higher nitrogen charge pushes to the left to counter-act a right hand tire pull (common with larger tires)
  • IFP design (Internal Floating Piston)
  • Includes all required brackets and hardware
  • 304 Stainless Steel Body with Aluminum Top-Cap
  • Billet Aluminum rod ends with 1/2 inch bearings
  • 17-4 stainless high-misalignment pin inside a 1/2 inch bearing for bind free performance
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • Corrects right tire pull, adjustable
Read More

Carli Suspension's CS-DHMSS-03-T "High Mount" Steering Stabilizer for the Dodge Ram 2500 is a bolt-on upgrade that works with the factory OEM or Carli Low Mount Stabilizer. This stabilizer is mounted above factory location (tie-rod) and instead mounted to the drag link and chassis (near the sway bar frame mount). This Carli stabilizer features an adjustable nitrogen charge that push's to the Left to counter-act a Right Hand Tire Pull (commonly caused by larger tires).  Pre-pressurized at 200 PSI (best for push effect), this stabilizer is equipped with a Schrader valve that allows customers to bleed the pressure to desired PSI.

  • Improves handling - Increased steering predictability, minimized volatility and reduced driver fatigue
  • Higher nitrogen charge pushes to the left to counter-act a right hand tire pull (common with larger tires)
  • IFP design (Internal Floating Piston)
  • Includes all required brackets and hardware
  • 304 Stainless Steel Body with Aluminum Top-Cap
  • Billet Aluminum rod ends with 1/2 inch bearings
  • 17-4 stainless high-misalignment pin inside a 1/2 inch bearing for bind free performance
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • Corrects right tire pull, adjustable
$525
3 of 3 options
Ram 2500 2008.5-2013 Dodge 4WD (w/Lifted Suspension & T-Style Steering) Opposing Steering Stabilizer Kit by Carli Suspension

This Carli Suspension CS-DSSOSK-T Opposing Steering Stabilizer kit for the Dodge Ram 2500 encompasses both the Low-Mount and High Mount Stabilizers, along with the addition of the Differential Guard and Bracket. The Differential Guard and Bracket serve the purpose of offering an alternative method for installing the low-mount stabilizer, thereby altering its corrective orientation.

  • Improves handling - Increased steering predictability, minimized volatility and reduced driver fatigue
  • True opposing steering stabilizer setup, high and low mount
  • Higher nitrogen charge pushes to the left and right to counter-act a right or left hand tire pull (common with larger tires). Each stabilizer pushes the opposite direction, can reduce charge in one to increase push in a single direction
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • IFP design (Internal Floating Piston)
  • Includes all required brackets and hardware
  • 304 Stainless Steel Body with Aluminum Top-Cap
  • Billet Aluminum rod ends with 1/2 inch bearings
  • 17-4 stainless high-misalignment pin inside a 1/2 inch bearing for bind free performance
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • Fits Lifted or Leveled vehicles only
Read More

This Carli Suspension CS-DSSOSK-T Opposing Steering Stabilizer kit for the Dodge Ram 2500 encompasses both the Low-Mount and High Mount Stabilizers, along with the addition of the Differential Guard and Bracket. The Differential Guard and Bracket serve the purpose of offering an alternative method for installing the low-mount stabilizer, thereby altering its corrective orientation.

  • Improves handling - Increased steering predictability, minimized volatility and reduced driver fatigue
  • True opposing steering stabilizer setup, high and low mount
  • Higher nitrogen charge pushes to the left and right to counter-act a right or left hand tire pull (common with larger tires). Each stabilizer pushes the opposite direction, can reduce charge in one to increase push in a single direction
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • IFP design (Internal Floating Piston)
  • Includes all required brackets and hardware
  • 304 Stainless Steel Body with Aluminum Top-Cap
  • Billet Aluminum rod ends with 1/2 inch bearings
  • 17-4 stainless high-misalignment pin inside a 1/2 inch bearing for bind free performance
  • Adjustable Nitrogen Charge - Schrader valve allows customer to bleed the pre-charged stabilizer (pressurized at 200 psi for right push, or drop to 70 psi for no directional influence)
  • Fits Lifted or Leveled vehicles only
$1160
Vehicle Fitment
MakeDodge
ModelRam 2500
Year Fitment2013, 2012, 2011, 2010
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-DLEVEL-03-H
Item Numbercar_cs-dlevel-03-h
MPN(UPC)883584151944
Product LineLeveling Kits
Lift Height3 inch
