3" 2010-2011 Dodge Ram 2500 4wd (w/Diesel Engine) Dominator Long Arm Lift System by Carli Suspension

This Carli Suspension CS-DD30-10-D-LA 3 inch Dominator Long Arm lift system for the Dodge Ram 2500 4wd diesel models is an ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires. Using custom tuned King 3" Remote Reservoir Shocks this kit is perfect for Ram owners wanting an excellent ride, but more importantly excellent off-roading capabilities. Made for the serious off-roaders!

The top feature of this lift system is the the long arm sytem that replaces the factory control arms. This awesome upgrade gives your vehicle increased suspension articulation and much better handling due to the corrected geometry. The included arm are extremely heavy duty and 50% longer than the factory arms (factory control arm mounts will need to be cut off). To take full advantage of the long arm system Carli also includes slide over-design shock towers that accomidate the longer 12 inch travel shocks.

Featured in this lift kit system are 3 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 3" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 3 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride and much improved travel and performance you will want to choose the Carli progressive rate 1" lift leaf springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a 3/4 ton spec or choose the HD version for those with 1500 lbs in the bed at all times. You can make your selection in the options section below.

Features & Benefits:

• 3 inch front lift / 0 to 1 inch rear lift (optional rear lift)
• Ultra-Premium lift kit optimized for all conditions: on-road road quality, towing and slow to high speed off-roading - For Serious Off-Roaders !
• Front linear rate coil springs - with reduced linear rate to improve ride quality
• King 3.0 Remote Resi Front and Rear Shocks - Huge 3" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
• Remote reservoir increases oil capacity for better heat management and better overall performance
• Shocks are fully serviceable and rebuild-able
• Rear lift is optional, but Carli progressive 1" lift leaf springs are highly recommended for ride quality and a level ride (see in options below)
• Long Arm System greatly improves handling and articulation
• Designed to greatly improve ride quality, handling and articulation
• Front Travel = 12" / Rear Travel = 13" (w/rear springs upgrade)
• Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
• Lifetime warranty on components, 1 year warranty on shocks
• Allows use of up to 37 inch x 12.5 tires

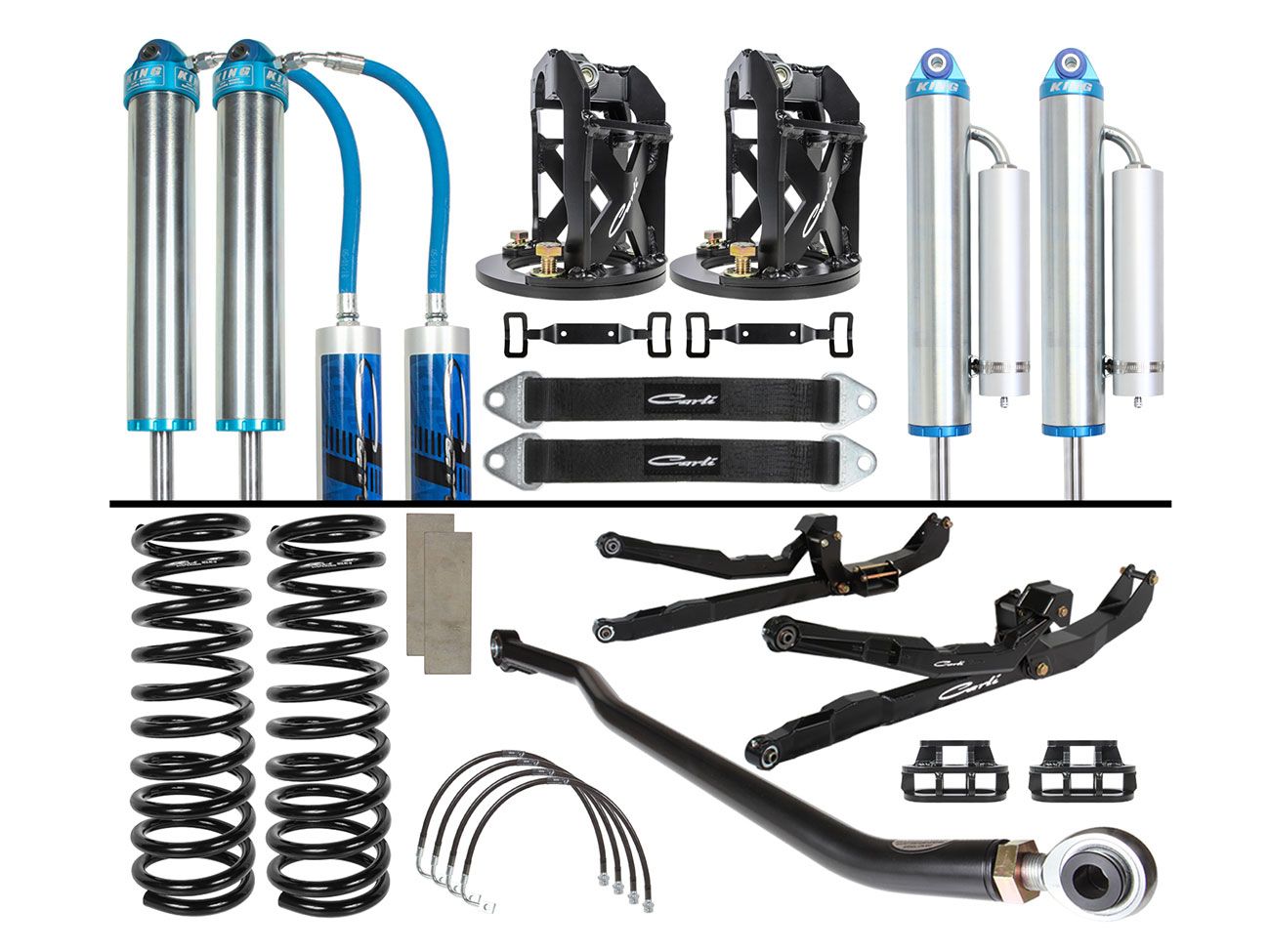

Components Included:

• CS-DLRC-10-D: Front Coil Springs
• CS-DLA3-10: Long Arm System
• CS-DATB-03: Adjustable track bar
• CS-DD30SPKG-03-D-LA: Carli Tuned King 3.0 Remote Resi Front and Rear Shocks, Resi Mounts and Limiting Straps
• CS-DFST625: Fabricated Front Shock Towers
• CS-DFBD-1: Front Bump Stop Drop
• CS-D3BBL-03: Braided Front and Rear Brake Lines
• CS-D30GUSSET: Dominator Rear Crossmember Gusset Kit
• CS-HOLESAWKIT-4.5: Hole Saw & Arbor Kit, 4.5 inch hole

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.
