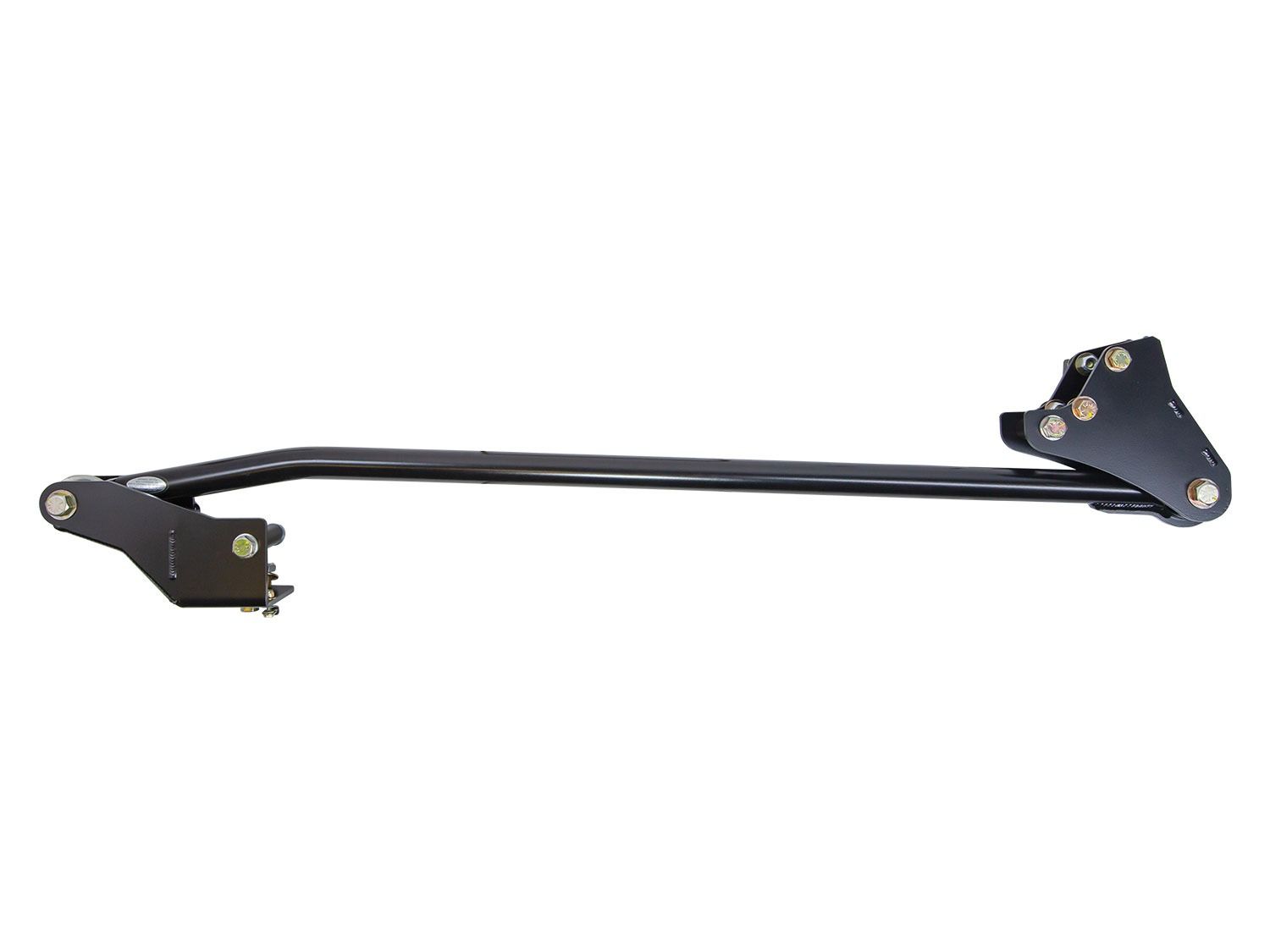

Ram 2500 2014-2025 Dodge 4WD - Extended Rear Track Bar Kit by Carli Suspension

Eliminate rear-end wander and restore precise suspension control on your 2014+ Ram 2500 4WD with the Carli Suspension Extended Rear Track Bar (CS-DATB-14-R-KIT). Engineered specifically for Rams equipped with the factory 5-link rear suspension, this track bar dramatically improves stability by correcting axle path, roll center, and lateral movement.

The Carli rear track bar is a massive 13.8 inches longer than the factory bar, allowing the rear axle to travel through a far more linear arc. This extended length significantly reduces effective track bar shortening and angle change through suspension travel—eliminating the rear “yaw” or side-to-side wag commonly felt in lifted Ram trucks. To further optimize performance, Carli raises the axle-side mount and lowers the frame-side mount, flattening the bar at ride height where the truck spends most of its time.

Constructed from 3/8-inch wall DOM steel tubing, the bar is stronger than the factory mounting brackets themselves. It threads directly into a 1-inch shank FK chromoly heim joint on the axle side, while the frame side features Carli’s NVH-isolated CUB joint with a PTFE-lined FK bearing for smooth articulation and long service life. This design delivers maximum strength and articulation without transferring noise or harshness into the cab.

Designed to work seamlessly with Carli 3.25-inch suspension systems, this rear track bar is a critical upgrade for improving handling, ride composure, and overall control—both on the highway and off-road.

Features & Benefits

• Fits 2014+ Ram 2500 4WD models
• 13.8” longer than the factory rear track bar
• Corrects rear axle path to eliminate lateral “yaw”
• Optimized rear roll center for improved balance and control
• Flattened track bar geometry at ride height
• 3/8” wall DOM steel construction for extreme strength
• Axle end features 1” shank FK chromoly heim joint
• Frame end uses NVH-isolated PTFE-lined FK bearing (CUB joint)
• Designed for Carli 3.25” suspension systems
• Power Wagon requires hardware kit CS-DATB-14-R-PWHK
• Made in the USA
