Ram 3500 2013-2024 Dodge 4WD Front Coil Spring Isolator Support by Carli Suspension Brand: Carli Suspension | SKU: CS-DD30-14-COILRETAINER
$75
- +
75

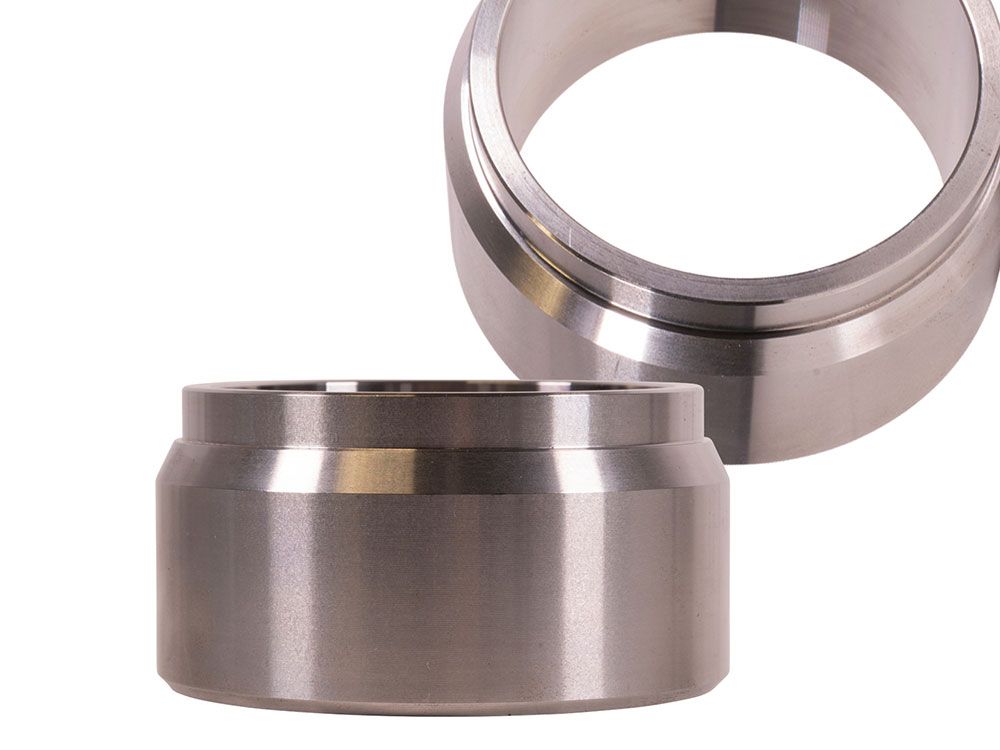

Ram 3500 2013-2024 Dodge 4WD Front Coil Spring Isolator Support by Carli Suspension

Brand: Carli Suspension | SKU: CS-DD30-14-COILRETAINER
$75.00

Ram 3500 2013-2024 Dodge 4WD Front Coil Spring Isolator Support by Carli Suspension

Brand: Carli Suspension | SKU: CS-DD30-14-COILRETAINER
$75.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Carli Suspension's CS-DD30-14-COILRETAINER Weld In Front Spring Isolator Support for your Dodge Ram 3500 are designed to be a large upgrade over the factory upper isolator which keeps coil springs stable. The factory Ram coil buckets lack substantial support for the isolator and coil, offering only a small hole for fitting. This, combined with the lower coil seat's forward and inward angle, results in spring pressure that causes forward bowing and slipping coils. It's not uncommon to find flattened isolators and coils that seem like they might slide forward and out of the bucket. This becomes even more pronounced when using big shocks, extended travel, and engaging in off-road driving with an adventurous spirit.

To address this issue effectively, Carli designed supports machined from a solid piece of mild steel. Installing them requires front suspension disassembly, cleaning of the factory coil bucket, welding, priming, and painting. Once in place, these supports blend seamlessly with the factory isolator, nearly concealed from view. With these reinforcements installed, your coil spring gains the sturdy backing it needs, ensuring it remains securely in position without any budging or slippage. Consider this upgrade as affordable insurance against any unexpected coil re-installation hassles when you venture off-the-grid!

Features & Benefits:

  • Keeps coil spring in coil buckets
  • Necessity with 3" shocks
  • Weld In Installation process
  • Machined, Mild-steel construction
  • Provides unrivaled support for coil springs
Important Notes
  • Works with 0-3.25" of suspension lift
  • Intended to be welded in place
  • There are two potential spring isolators spec’d in Ram trucks, the Standard 2500/3500 – PN 05168566AB, and Power Wagon – PN 68268825AA. Functionally, they’re interchangeable in MOST situations; however, when welding in our isolator supports, standard isolators MUST be installed in place of the Power wagon isolators, if equipped. The Standard isolators have an internal diameter of 3.875″ while the Power Wagon isolators run 3.25″ as they brace against the short “cone” to center the isolator.
  • Vehicle Fitment
    MakeDodge
    ModelRam 3500
    Year Fitment2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013
    2WD/4WD4WD
    Tech Specs
    ManufacturerCarli Suspension
    Manufacturer Part NumberCS-DD30-14-COILRETAINER
    Item Numbercar_cs-dd30-14-coilretainer
    MPN(UPC)883584149989
    Product LineCoil Spring Isolators
