6" 2014-2018 Dodge Ram 3500 4WD (w/diesel engine) Fox 2.5 Performance Elite Coilover / Radius Arm Lift Kit by BDS Suspension

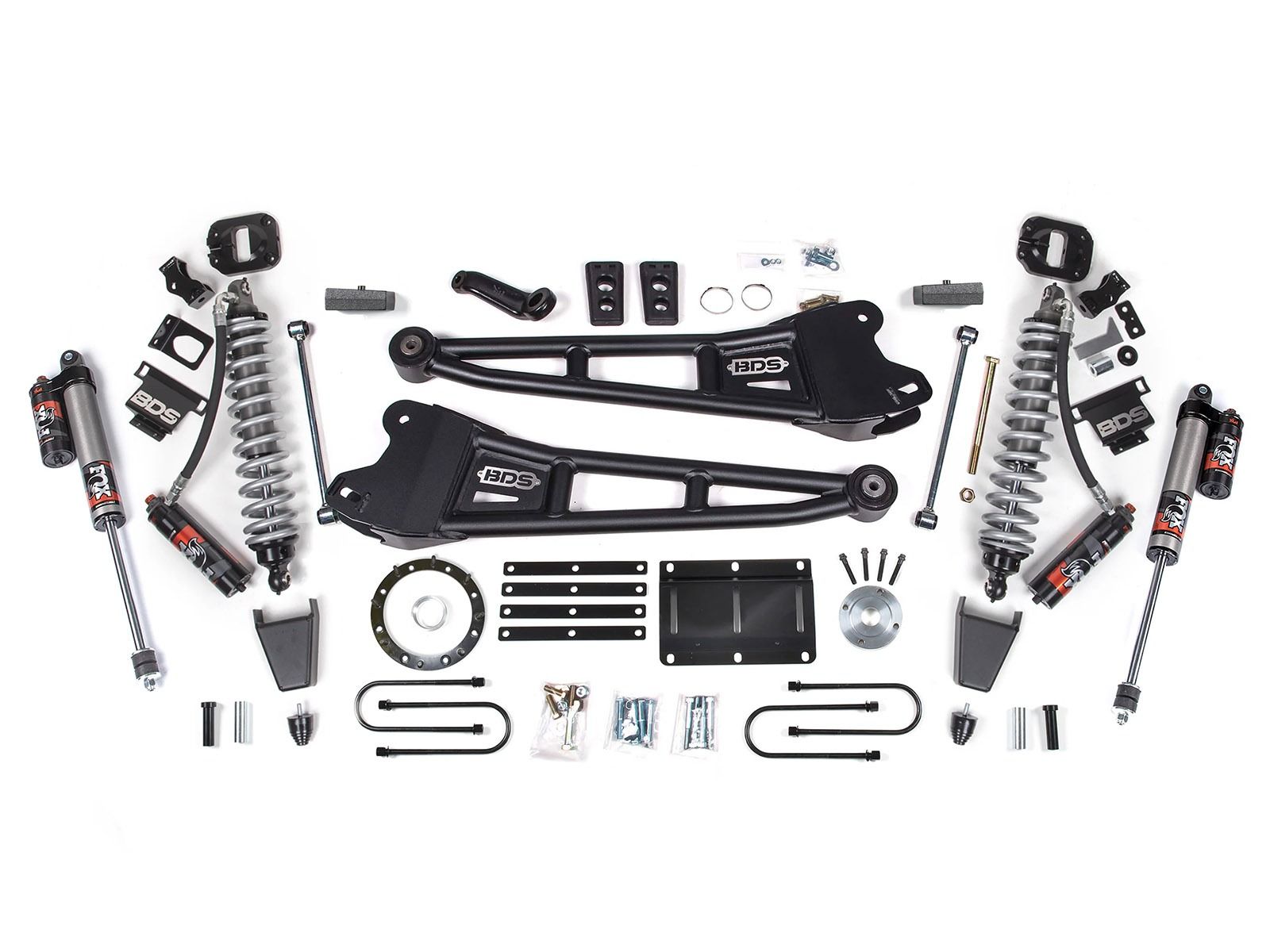

The BDS 2132PES / 2134PES 6" Radius Arm Coilover Lift Kit transforms your 2014 thru 2018 RAM 3500 4WD into a full-performance machine, engineered to handle tough trails, heavy loads, and daily driving alike. Proudly made in the USA, this system replaces the factory suspension with heavy-duty components designed for strength, control, and long-term durability.

Heavy-Duty Radius Arms

Built from high-strength tubular steel, the upgraded BDS radius arms correct caster, improve suspension geometry, and maximize ground clearance. This ensures your lifted RAM maintains proper alignment and articulation, giving you confidence both on and off the road.

FOX Coilover Conversion

The front end gets a serious performance upgrade with the BDS Coilover Conversion Kit. Mounted in the factory coil spring buckets, these FOX 2.5 Performance Elite coilovers with DSC (Dual Speed Compression) adjusters deliver a ride you can tune to perfection. Independently adjust low-speed and high-speed compression for plush comfort on the highway or firm damping on demanding terrain.

FOX Performance Elite Rear Shocks

Out back, FOX 2.5 Performance Elite shocks with DSC adjusters provide the same level of adjustability and control, keeping your truck smooth, stable, and responsive in all driving conditions.

Optional FOX Hydraulic Bump Stops

For extreme off-road use, FOX 2.0 Factory Race Series Hydro Bump Stops can be added. These race-inspired bump stops soak up hard landings and full-travel suspension impacts, adding another layer of protection and control when driving aggressively in rough terrain.

All possible SKUs depending on options selected: BDS2132PES, BDS2132PESB, BDS2134PES, BDS2134PESB

Features & Benefits

• 6-inch front lift / 4-inch rear lift
• FOX 2.5 Performance Elite coilovers with DSC adjusters mounted in factory coil buckets
• FOX 2.5 Performance Elite rear shocks with DSC adjusters for customizable ride control
• Heavy-duty tubular steel radius arms improve caster and maximize ground clearance
• Adjustable front track bar re-centers the axle after lifting
• Front sway bar correction ensures stable handling and control
• Made in the USA with unmatched strength and quality

Recommended Tires & Wheels (trimming may be required)

• 37 x 12.5 with 17 x 9 and 4.5" backspacing
• 37 x 12.5 with 20 x 9 and 4.5" backspacing
• 37 x 13.5 with 20 x 9 and 5.625" backspacing
