6" 2017-2022 Ford F250/F350 Diesel 4WD 4 Link Lift Kit by Fabtech

Brand: Fabtech | SKU: K2219 / K2219M / K2219DL
From $2,899.40 Regular Price $3,221.56

6" 2017-2022 Ford F250/F350 Diesel 4WD 4 Link Lift Kit by Fabtech

Brand: Fabtech | SKU: K2219 / K2219M / K2219DL
From $2,899.40 Regular Price $3,221.56


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

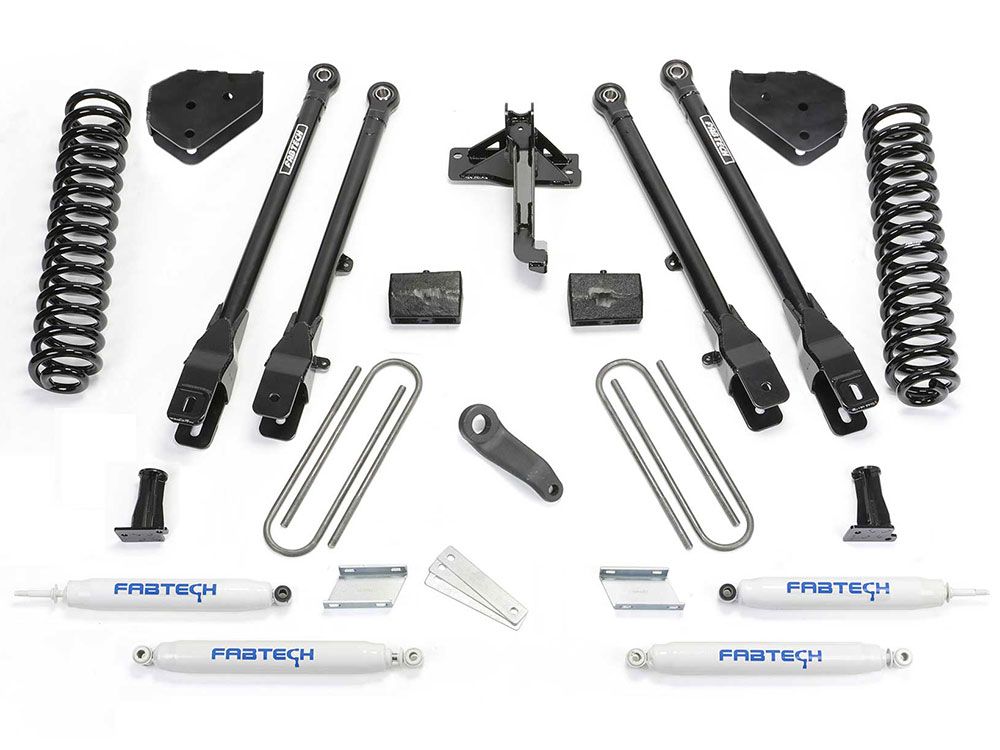

This Fabtech K2219 6 inch 4 Link Lift Kit System for the Ford F250 / F350 trucks provides unsurpassed articulation and wheel travel. Included are 2 inch diameter heavy wall links that feature race style 1 inch Uniballs for superior strength and durability. Thick 1/4 inch steel brackets secure the 4 Links to the frame without cutting or welding. It also comes with new front coil springs providing 6 inches of lift. System includes a track bar relocation bracket with a kicker brace that has been designed to center the axle under the vehicle and includes a Drop Pitman Arm. Rear lift is accomplished with lift blocks and extended length u-bolts.

Choose from three type of shock absorbers, Performance hydraulic (affordable option), Slealth monotube gas (mid-range) or Dirt Logic (premium) shocks that feature a stainless steel 2.25 inch one-piece body.

Top Features and Benefits

  • 4 Link System replaces factory radius arms for superior handling and suspension articulation¬†
  • 1 inch uniballs used in link arms for strength
  • Track bar bracket keeps axle centered
  • Extended length coil springs lift front end while maintaining ride quality
  • Black powder coated for durabiltiy
  • Allows for use of up to 37 inch tires
  • Limited Lifetime Warranty
  • 5 Year, 60,000 Mile Powertrain Warranty on select models

Tire and Wheel Fitment:

  • 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
  • 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming
  • 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming

Product Highlights

Fabtech Peformance Shocks
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.
Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate.  A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.
Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Important NotesNon Dually Models Only.
Will not fit gas motors.
Vehicles equipped with 2 piece driveshaft requires fab_fts419.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2022, 2021, 2020, 2019, 2018, 2017
2WD/4WD4WD
Tech Specs
ManufacturerFabtech
Manufacturer Part NumberK2219 / K2219M / K2219DL
Item Numberfab_k2219/k2219m/k2219dl
MPN(UPC)674866103078
Product LineLift Kits
Lift Height6 inch
SpecialCall for Price Match!
