6" 2017-2022 Ford F250/F350 4wd (w/diesel engine) Radius Arm Coilover Lift Kit by Fabtech

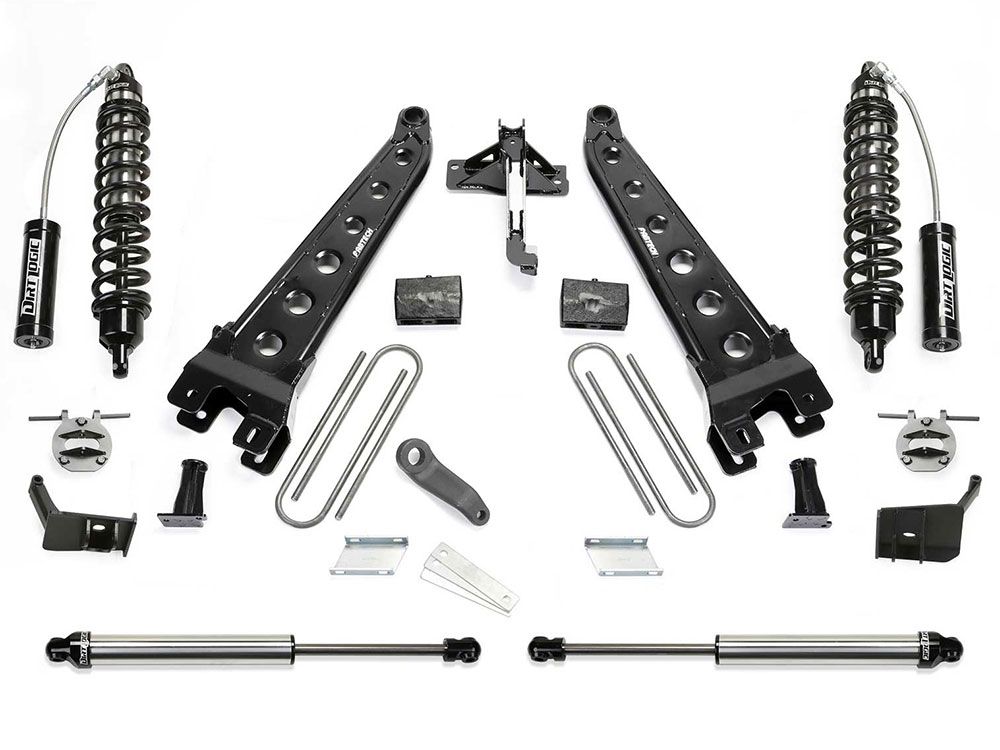

This Fabtech K2243DL 6 inch Radius Arm Coilover Lift Kit for the Ford F250 / F350 trucks will give your vehicle enough fender clearance to fit up to 37 inch diameter tires to radically change the appearance of your truck. Featuring Dirt Logic Resi Coilovers for unmatched off-road and highway suspension performance and ride quality.  The included heavy duty radius arms features a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. A Trac Bar relocation bracket with a kicker brace that has been designed to center the axle under the vehicle and includes a Drop Pitman Arm. Rear lift is accomplished with lift blocks and extended length u-bolts. Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

Top Features and Benefits

• 6 inch front lift / 4 inch rear lift for level ride
• Allows use of up to 37 inch tires
• Heavy duty tubular radius arm correct front caster
• Track bar relocation bracket centers axle
• Dirt Logic 2.5 or 4.0 Front CoilOvers for awesome ride quality and performance
• Coilover remote reservoir increases fluid capacity for better performance in all driving conditions
• Dirt Logic 2.25 rear shocks
• Drop pitman arm corrects steering angles
• Rear blocks and ubolts
• Limited Lifetime Warranty

Recommended Tires and Wheels

• 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
• 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming
• 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming
