3" Tundra 2022-2024 Toyota 4WD (w/o factory air suspension) Uniball UCA Lift Kit by Fabtech Brand: Fabtech | SKU: K7086 / K7086M / K7086DL
$1728.14
- +
1728.14

3" Tundra 2022-2024 Toyota 4WD (w/o factory air suspension) Uniball UCA Lift Kit by Fabtech

Brand: Fabtech | SKU: K7086 / K7086M / K7086DL
From $1,728.14 Regular Price $1,920.16

3" Tundra 2022-2024 Toyota 4WD (w/o factory air suspension) Uniball UCA Lift Kit by Fabtech

Brand: Fabtech | SKU: K7086 / K7086M / K7086DL
From $1,728.14 Regular Price $1,920.16


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Fabtech's K7086 3" Uni-ball upper control arm Lift Kit for the Toyota Tundra provides a more aggressive appearance while allowing use of 33"-35" tires! Factory Tundra upper control arms are replaced by Fabtech's Uniball Upper Control Arms which provide an extra degree of caster compared to the stock arms. Increased caster helps balance the steering paired with larger oversized tires. Fabtech upper control arms are constructed out of the finest materials around with .120" wall 1.25" OD 4130 Chromoly steel tubing. High quality FK Stainless PTFE lined uniball bearings are used in place of the small factory ball joints which allow for incrased suspension travel without bind. These tough upper control arms are designed for longevity and rough off-road terrains.

The factory front coilover shocks receive spacers that provide additional lift while maintaining the stock ride quality. Rear lift is achieved by utilizing a coil spring spacers, providing additional ride height. Rear shocks are replaced with the choice of Fabtech Performance shocks, Stealth shocks and Dirt Logic performance shocks, all great choices for great ride quality.

Features and Benefits:

  • Front Upper strut spacers and rear coil springs spacers maintain a factory ride
  • High quality components
  • Arms eliminate upper ball joint w/ super strong 1 inch ID stainless American Uni-ball
  • Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments
  • Chromoly tubing reduces flex found in stock arms for more positive road feel
  • 4340 Heat treated Uni-ball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature
  • Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
  • Fits 33" to 35" tires
  • Fabtech offers a 5 year, 60,000 mile powertrain warranty

Product Highlights

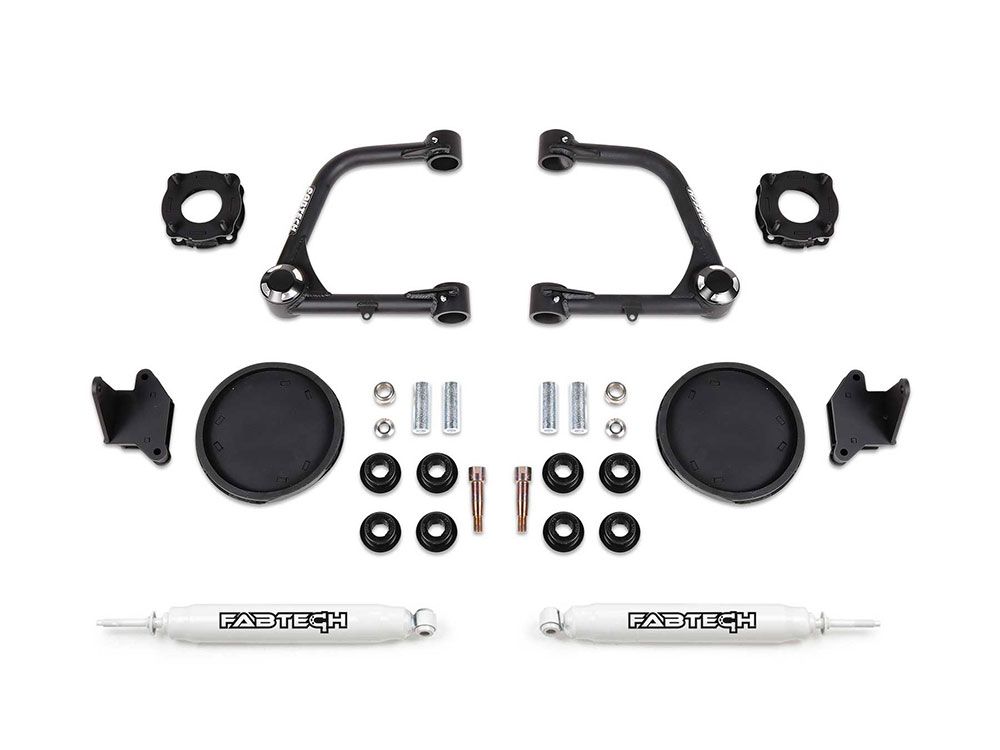

Fabtech Peformance Shocks
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.

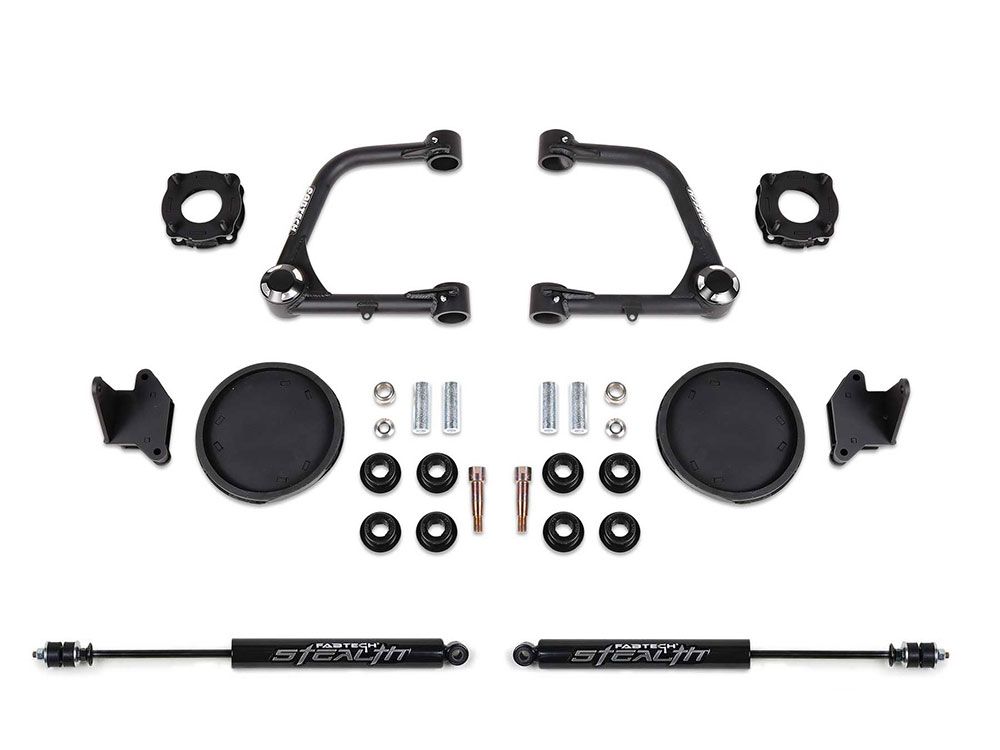

Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate.  A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.

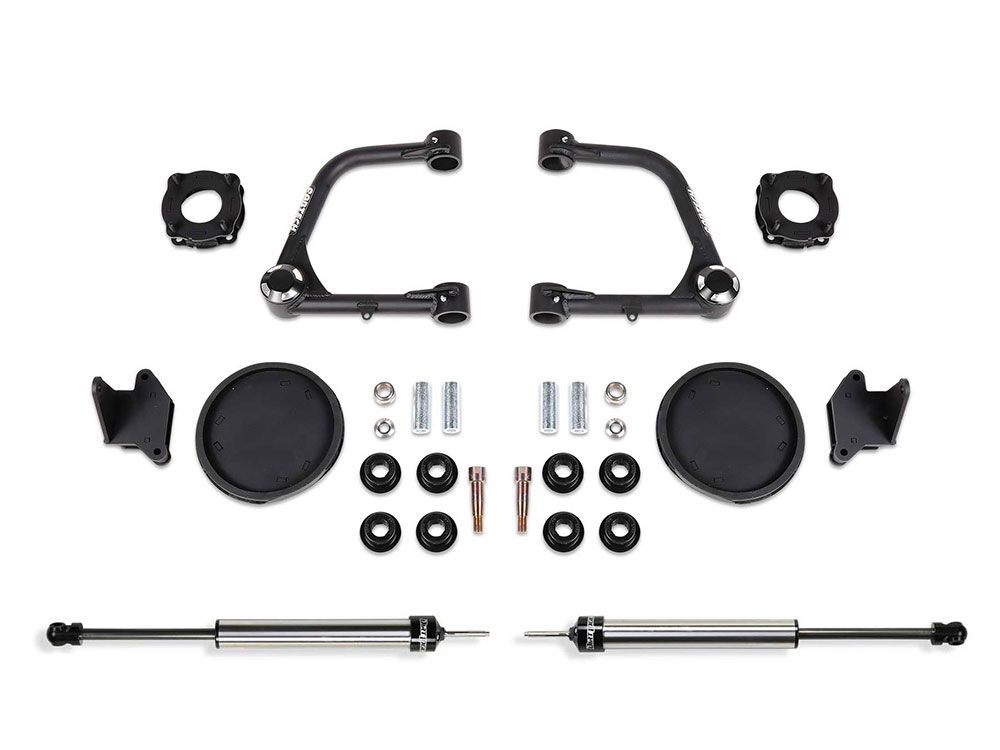

Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Important Notes
  • Does NOT fit Hybrid models
  • Does NOT fit models equipped with adaptive variable suspension shocks
  • Fits CrewMax models ONLY
  • Fits non factory air suspension vehicles ONLY
  • Vehicle Fitment
    MakeToyota
    ModelTundra
    Year Fitment2024, 2023, 2022
    2WD/4WD4WD
    Tech Specs
    ManufacturerFabtech
    Manufacturer Part NumberK7086 / K7086M / K7086DL
    Item Numberfab_k7086-k7086m-k7086dl
    MPN(UPC)674866113503
    Product LineLift Kits
    Lift Height3 inch
