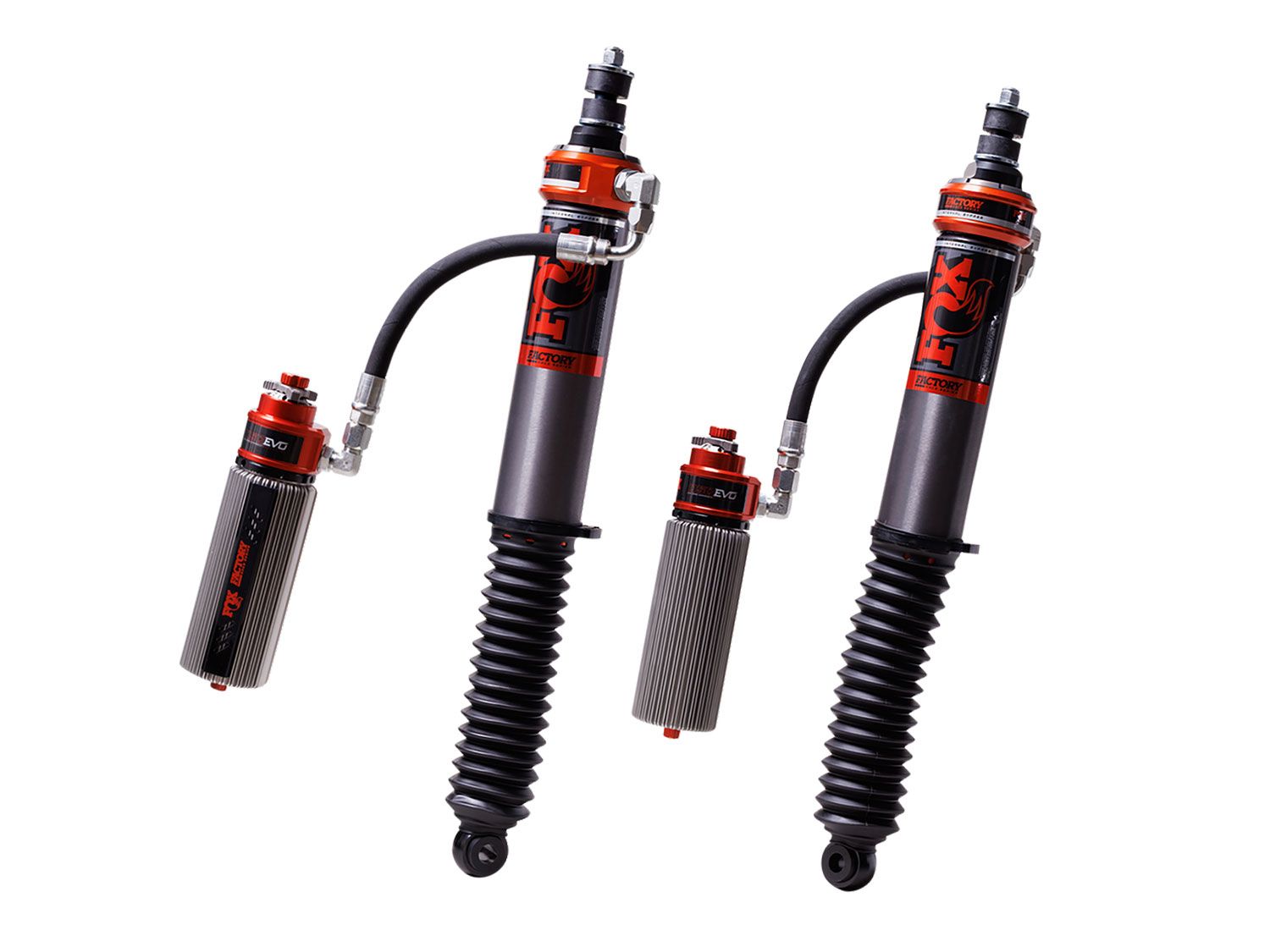

Tacoma 2024-2026 Toyota (w/0-1" lift) - Factory Race Series 3.0 Internal Bypass Adjustable Shocks (Rear Pair) by Fox Shocks

FOX 883-26-149 Factory Race Series 3.0 Internal Bypass shocks for the 4th-generation Toyota Tacoma bring true race-bred suspension technology to a bolt-on package. Designed for high-speed desert performance and aggressive off-road driving, these advanced shocks deliver both velocity- and position-sensitive damping for unmatched control across any terrain. The patented Internal Bypass system creates multiple damping zones inside the shock, allowing for plush ride comfort through small bumps while progressively increasing resistance during deep compression and rebound events. This prevents harsh bottom-outs, eliminates top-out clunks, and provides the stability needed for large impacts and fast-paced off-road conditions.

Each shock features a massive 3.0-inch Type II anodized 6061-T6 aluminum body for superior strength, corrosion resistance, and improved heat dissipation. The finned remote reservoir increases oil capacity and cooling efficiency while housing the Internal Floating Piston (IFP) and FOX’s Dual Speed Compression Evolution (DSC EVO) adjuster. DSC EVO technology utilizes Variable Valve Control on the high-speed circuit, allowing you to increase high-speed compression damping without adding preload to the shim stack, resulting in smoother small-bump sensitivity and greater big-hit capacity. With vehicle-specific valving, application-specific springs, a redundant sealing system, and race-proven hard-chromed 7/8-inch shafts, FOX 3.0 Internal Bypass shocks deliver the confidence, support, and adjustability serious Tacoma owners demand. Whether charging across open desert or pushing hard through rugged backcountry trails, these shocks provide the control needed to drive at speed with authority.

DSC EVO Adjusters

Finned remote reservoirs increase oil capacity, house an internal floating piston (IFP), and feature the DSC EVO adjuster. Using Variable Valve Control (VVC) on the high-speed compression circuit, DSC EVO adjusts damping without adding preload to the shim stack. This design delivers independent high- and low-speed tuning, improved ride comfort, and the capacity to absorb big hits—allowing you to add high-speed compression while maintaining small-bump sensitivity.

Features & Benefits:

• Race-bred FOX Factory Race Series 3.0 Internal Bypass shocks for 4th gen Tacoma
• Patented Internal Bypass technology creates multiple damping zones for superior control
• Position- and velocity-sensitive damping improves comfort and stability at all speeds
• DSC EVO adjuster with Variable Valve Control allows independent high- and low-speed compression tuning
• Adds high-speed compression damping without sacrificing small-bump sensitivity
• 3.0" impact-extruded and CNC-machined 6061-T6 aluminum shock body for maximum strength and heat dissipation
• Type II anodized finish protects against corrosion and wear
• A finned remote reservoir increases oil capacity and cooling efficiency
• Internal Floating Piston (IFP) maintains consistent damping under heavy loads
• Application-specific springs and valving optimize performance for the Tacoma
• 7/8" hard-chromed steel shafts provide serious durability and smooth action
• Redundant sealing pack (main seal, wiper seal, scraper seal) resists leaks in harsh conditions
• Stem top mount and eyelet bottom mount
• Does *not* fit leaf spring Tacoma models

Shock Specs:

• Extended Length: 26.25"
• Compressed Length: 16.28"
• Travel Length: 9.97"
• Top Mount: Stem Top
• Bottom Mount: Eyelet
