Product Description
More Information

Jack-it has put together these 2 inch Budget lift packages for the 73-87 GM ¾ 4wd. We start with the Pro Comp 2 inch front springs with u-bolts, Jack-it likes these springs because they are a 5 leaf spring pack with a 526LB spring rate. Springs include poly bushings, these bushings are the large side wall bushings. We use a 2” rear block kit and then front and rear Pro Comp ES3000 (Qty 4) shocks.  with your choice of shock boot color. Jack-it adds the front poly upper shackle bushings and a front spring and shackle eye bolt kit

There are a couple of options that you will want to check.  The 1976 model year swapped from a Dana 44 front axle to a GM 10 bolt front axle, so we have the kits set up with the proper u-bolts for each axle. Most vehicles built June 76 and earlier have the Dana 44. If you have the factory duel front shock set up you will need to order the two extra front shocks. Also want to check and see if your vehicle has the rear brake load valve 81-87 model years can have this option,  if your vehicle does you will want to order that rear extension bracket. Last there is an optional drop pitman that can be purchased also if you choose.

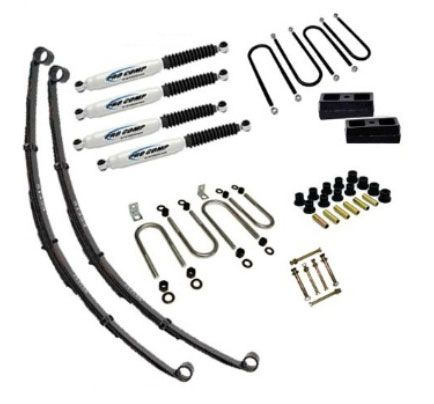

Budget Package Includes:
- Spring and Shackle Bushings
- Front Spring Eye Bolt Kit
- (4) Pro Comp Shocks w/ Boots
- U-Bolts
- Rear Blocks
- Front Pro Comp Leaf Springs

Vehicle Fitment
MakeChevy
ModelPickup 3/4 ton
Year Fitment1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberGM502SD/GM503SD/GM506SD
Item NumberGM502SD/GM503SD/GM506SD
Product LineLift Kits
Lift Height2 inch
