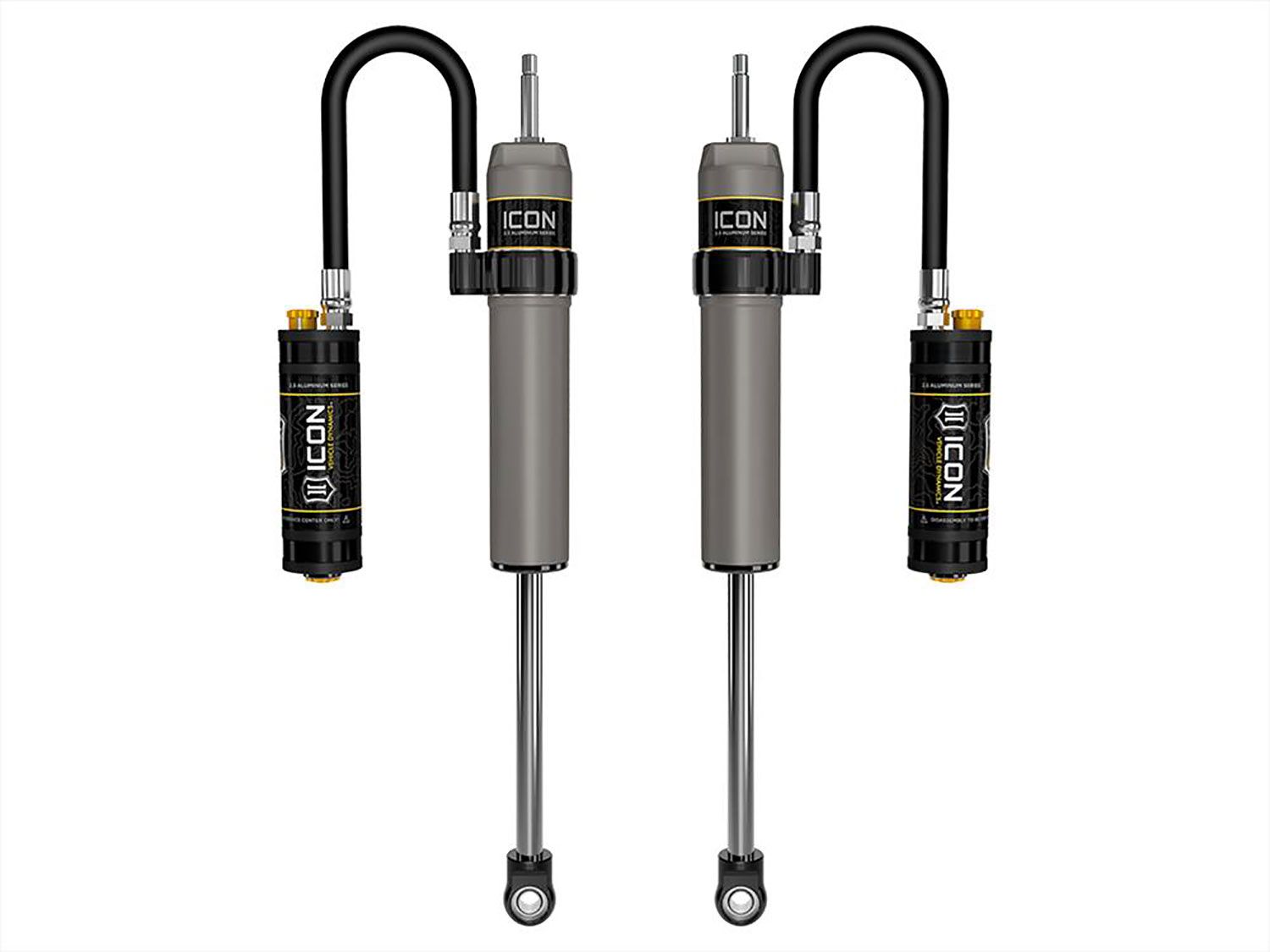

Tacoma 2024-2025 Toyota 4wd - Icon REAR 2.5 CDCV Piggyback Reservoir Shocks (fits with 0-1" Rear Lift) - Pair

ICON 57808CP 2.5 Aluminum Series shocks are engineered to deliver exceptional off-road performance and a smooth on-road ride. These shocks are tailored for each vehicle, featuring specific lengths and damping tunes. ICON's V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable, ensuring long-term usability and customization.

Certain models feature a piggyback or remote reservoir design with a unique 6061-billet aluminum manifold for enhanced performance. This manifold, positioned just below the shock's top cap, incorporates an internal Bump Zone, increasing damping force by 20%. This additional force minimizes harsh bottom-outs and improves suspension control during high-velocity compression. Key features include ICON's exclusive Compression Damping Control Valves (CDCV), which allow precise suspension tuning through fluid flow management under compression. This technology offers 10 levels of high-resolution compression adjustability with a simple knob turn, ensuring optimal performance for various terrains—be it street driving, rock crawling, or high-speed desert racing.

Constructed with one-piece, hard anodized, impact-extruded aluminum cylinders, these shocks provide excellent corrosion resistance and a consistent finish. They utilize premium grade 5WT shock oil for consistent damping across a wide temperature range. They also feature a nitrogen-charged monotube design with a remote reservoir for superior heat dissipation and reduced shock fade. Additional features include a 7/8” diameter induction-hardened, chrome-plated shock shaft, a one-piece digressive piston design with vehicle-specific valving, and PTFE-lined spherical bearings with application-specific mounting hardware. The shocks are crafted from 6061 aircraft-grade aluminum CNC machined components and come with a rubber dust boot for added shaft protection.

Features and Benefits:

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen-charged monotube design with remote reservoir
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece digressive piston design with vehicle-specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome-plated shock shaft
• Rubber dust boot included for added shaft protection
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
