6" 2011-2019 GMC Sierra 2500HD 4wd/2wd RTS Performance Lift Kit by Fabtech
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!

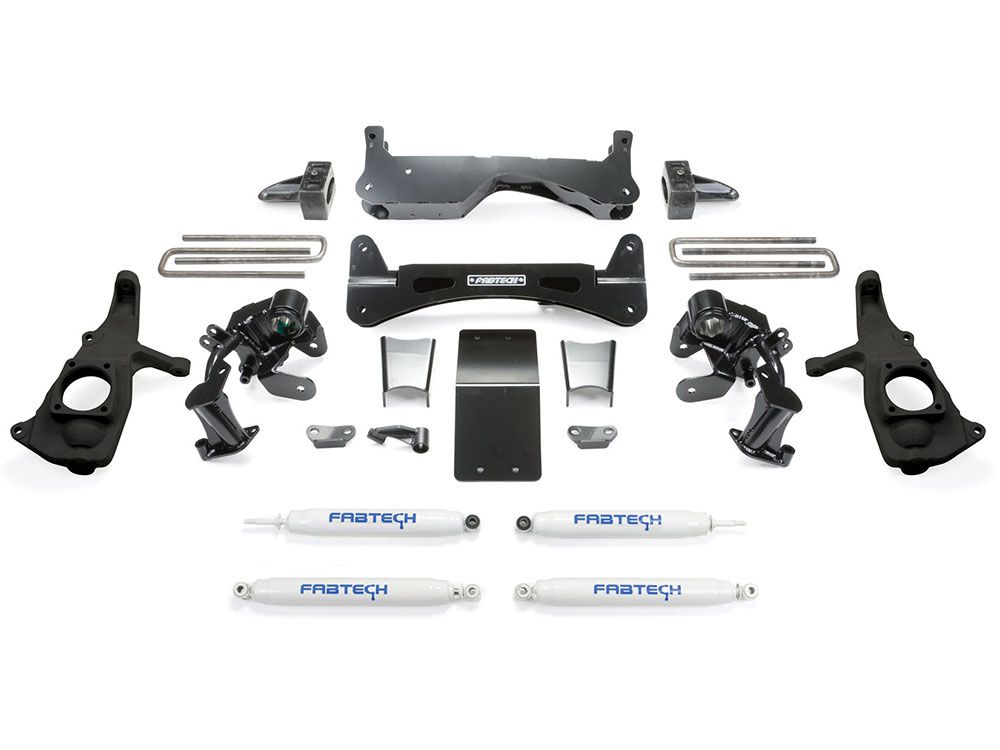

The Fabtech K1046 6 inch lift kit for the GMC Sierra 2500HD is an excellent suspension upgrade to allow for large diameter tires and an aggressive look. Using a cutting edge design this RTS kit utilizes a patent pending bracket system that keeps the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading.
The 6 inch RTS system has been designed with bracketry to retain the four front compression stops of the vehicle as GM intended. This distributes impact loads across a wide section of the frame rather than at a single point.
High arched crossmembers and front differential skid plate are constructed of 1/4 inch thick steel to resist bending from hard front suspension impacts. Only 1/4 inch thick steel provides the rigidity and strength necessary to relocate the torsion bars, bump stops and lower control arms properly.
Minimal heavy duty bracketry allow for a fast installation time with only two holes to drill and no cutting of the front diff housing. The 6 inch RTS system allows the use of both 18 inch and 20 inch diameter wheels.
Top Features and Benefits
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.
Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate. A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.
Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
|Important Notes1. Must use aftermarket 18″ wheels or larger.|
2. Fits extended and crew cab models only.
3. Does not fit GMC AT4 or Chevy Trail Boss models.
|Year Fitment||2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011|
|Manufacturer Part Number||K1046|
|Product Line||Lift Kits|
|Lift Height||6 inch|
|Special||Call for Price Match!|
