3.5" 2011-2019 GMC Sierra 2500HD/3500HD 4wd/2wd Basic Lift Kit w/Ball Joint UCA by Fabtech Brand: Fabtech | SKU: K1055 / K1055M / K1056DL
$1422.25
- +
1422.25

3.5" 2011-2019 GMC Sierra 2500HD/3500HD 4wd/2wd Basic Lift Kit w/Ball Joint UCA by Fabtech

Brand: Fabtech | SKU: K1055 / K1055M / K1056DL
From $1,422.25 Regular Price $1,580.28

3.5" 2011-2019 GMC Sierra 2500HD/3500HD 4wd/2wd Basic Lift Kit w/Ball Joint UCA by Fabtech

Brand: Fabtech | SKU: K1055 / K1055M / K1056DL
From $1,422.25 Regular Price $1,580.28


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

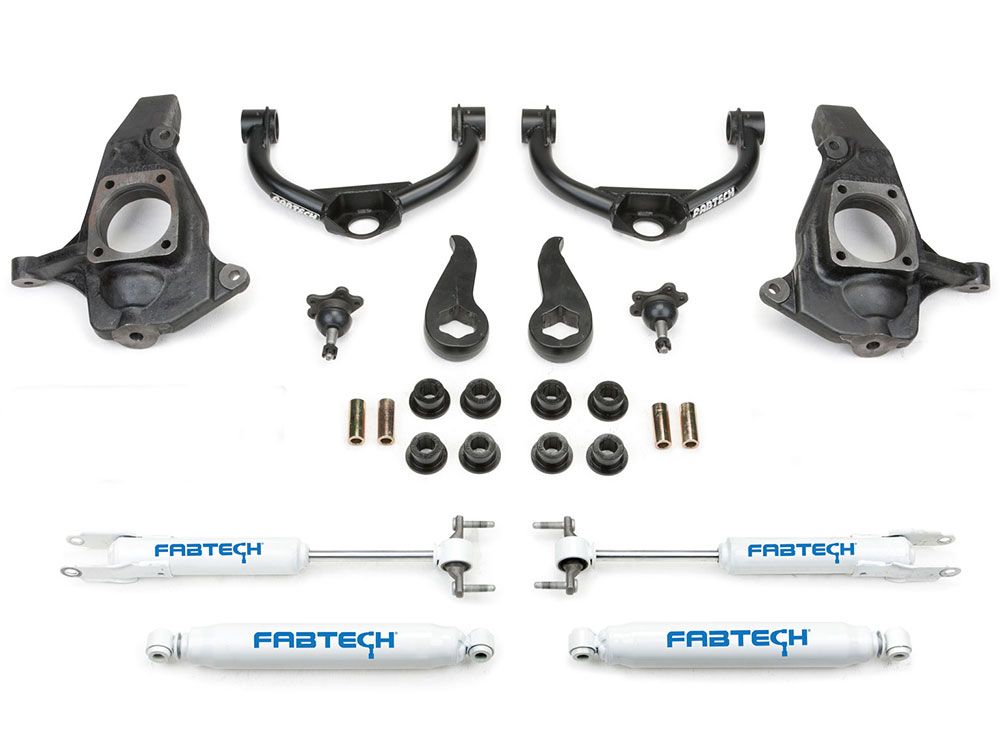

This Fabtech K1055 / K1055M 4 inch lift kit for the GMC Sierra 2500HD / 3500HD trucks is a great suspension upgrade that will allow for use of up to 35 inch diameter tires. Ideal for street and moderate offroad use, this system utilizing replacement upper control arms constructed of 1.50" OD .120" thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift.

There is no loss of ground clearance with this system as the stock lower control arms, torsion bars and front differential do not need to be relocated.

This suspension lift kit will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension.


Features and Benefits

  • Allows for use of 35 inch tall tires
  • Tubular upper control arms include heavy duty extended range ball joints that provide an additional 2 inches of travel over stock
  • No loss of ground clearance
  • No cutting, welding or drilling required for installation
  • 35" tires max and most of the time this size of tire requires a bunch of trimming to clear. Jack-it recommends running a 33 tall tire with this kit

Shock Options

  • Fabtech Performance Shocks (twin tube hydraulic) - These affordable shocks use a twin tube hydraulic design with 9-stage valving for great dampening performance
  • Fabtech Stealth Shocks (monotube gas) - These monotube gas shocks feature an amazing black finish with distinct raised nameplate and are ideal for oversized tires
  • Fabtech Dirt Logic Shocks (stainless steel body) - Featuring a huge 2.25" OD stainless steel body with a 7/8" NitroSteel black piston rod these shocks are the premium option in the Fabtech lineup
Important NotesStock 18 and 20 inch tires and wheels can be used.
Larger tires can not be installed on stock wheels.
Will not fit standard cab models.
Will not fit 17 inch wheels.
Vehicle Fitment
MakeGMC
ModelSierra 2500HD, Sierra 3500HD
Year Fitment2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerFabtech
Manufacturer Part NumberK1055 / K1055M / K1056DL
Item Numberfab_k1055
MPN(UPC)674866035430
Product LineLift Kits
Lift Height3.5 inch
SpecialCall for Price Match!
