8" 2008-2016 Ford F250/F350 4wd Radius Arm (w/rear springs) by Fabtech

Brand: Fabtech | SKU: K2128 / K2128M / K2128DL
As low as $3,150.07 Regular Price $3,500.08

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Fabtech K2128 8 inch lift kit for the Ford F250 / F350 4wd truck models is a massive lift that will allow for use of up to 37 inch diameter tires. Featuring Fabtech's patented Radius Arms with full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front coil springs lift the truck 8 inches. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift options include a block and u bolt kit, replacement leaf springs.

Choose your shocks:  Performance (hydraulic), Stealth monotube (mid-range) or Dirt Logic with a stainless steel body (premium gas).

Top Features and Benefits

  • Allows use of up to 37 inch diameter tires
  • Heavy Duty Tubular Radius Arms correct front end geometry and alignment
  • Track bar bracket keeps front axle centered
  • Sway bar drop brackets keep sway bar from binding
  • Drop pitman arm maintains proper steering angles
  • Rear leaf springs
  • Limited Lifetime Warranty

Product Highlights

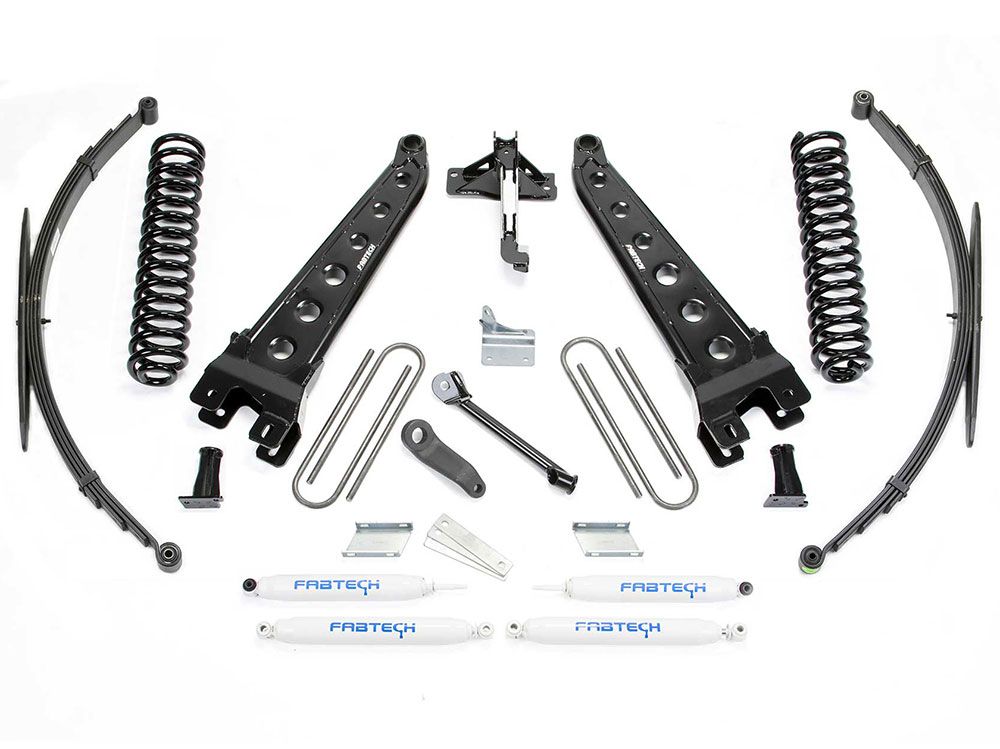

Fabtech Peformance Shocks
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.

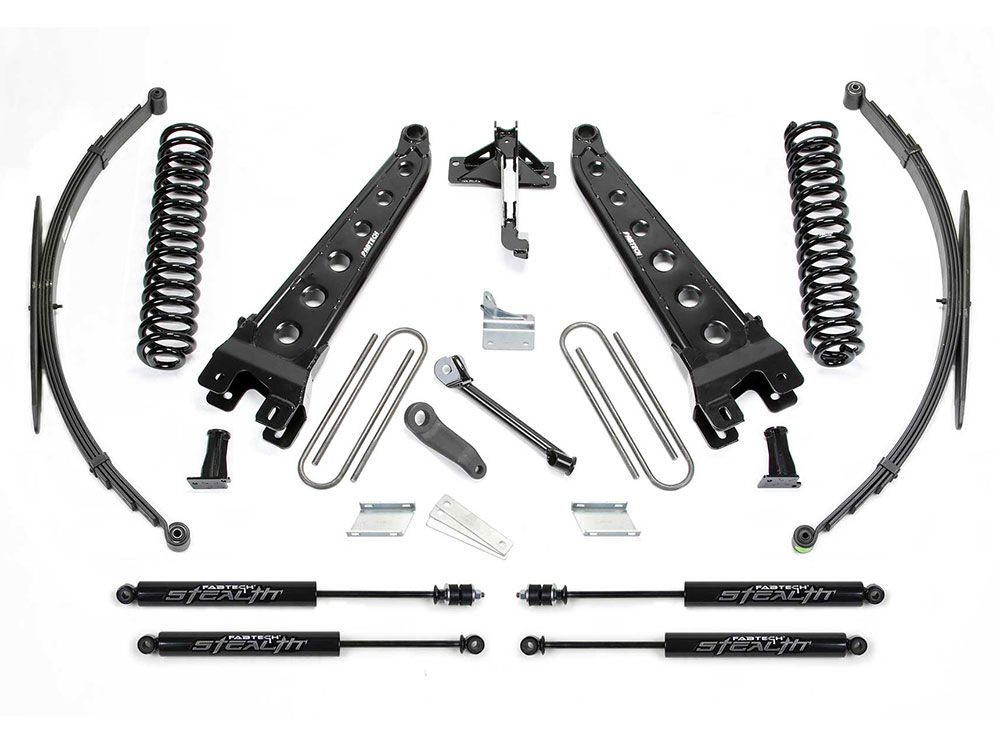

Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate.  A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.

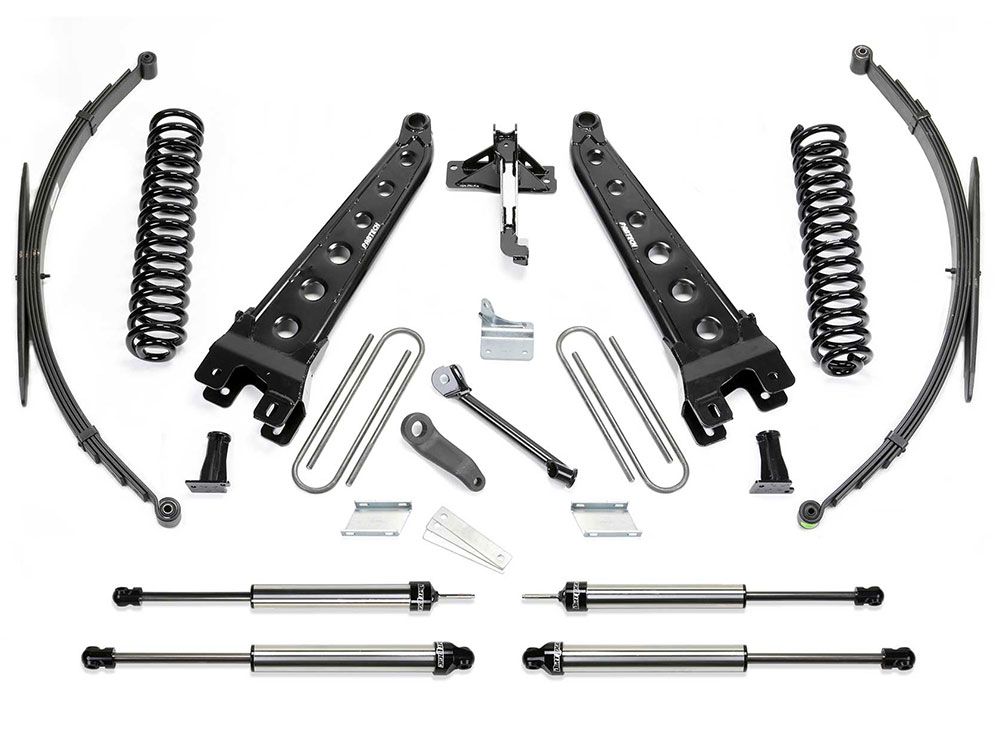

Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Important Notes1. Non dually models only.
2. Front drive shaft modification may be required to clear exhaust on gas motor.
3. Rear leaf springs may reduce load carrying capacity.
Vehicle Fitment
ModelF250, F350
Year Fitment2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008
Tech Specs
Manufacturer Part NumberK2128 / K2128M / K2128DL
Item Numberfab_k2128-k2128m-k2128dl
Product LineLift Kits
Lift Height8 inch
