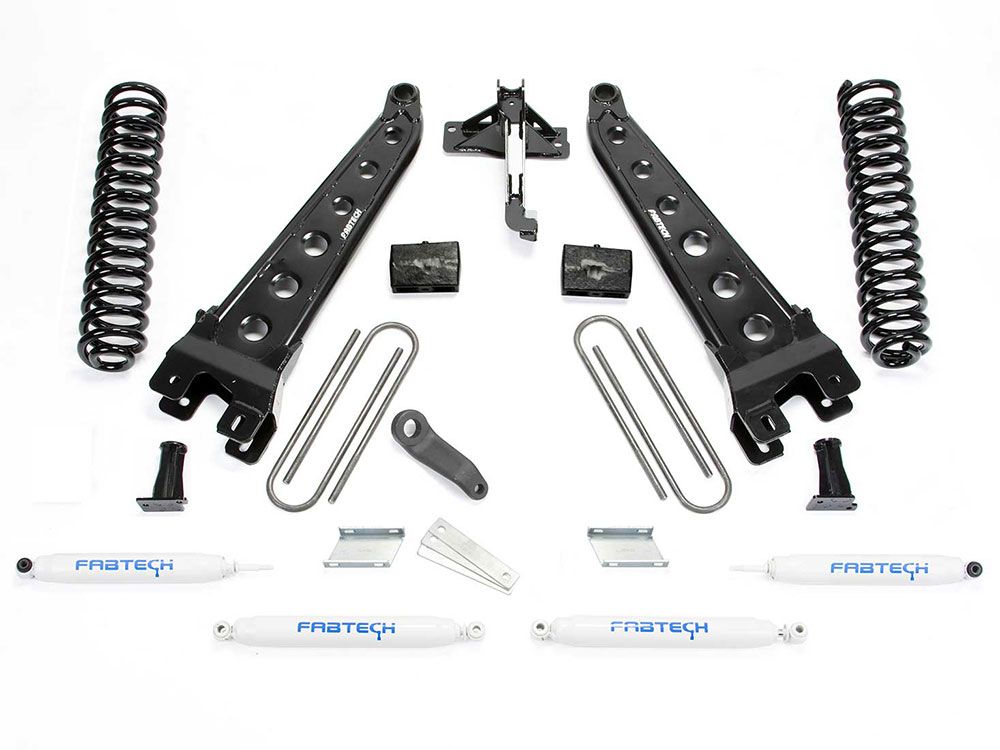

6" 2017-2022 Ford F250/F350 Diesel 4wd Radius Arm Lift Kit by Fabtech

Brand: Fabtech | SKU: K2218 / K2218M / K2218DL
From $2,297.95


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548

Complete your lift with a tire & wheel package

  • No more hassle
  • Fitted for you lifted truck
  • Free mounting & balancing
Product Description
More Information

This Fabtech K2218 6 inch Radius Arm Lift Kit for the Ford F250 / F350 trucks will give your vehicle enough fender clearance to fit up to 37 inch diameter tires to radically change the appearance of your truck. The included heavy duty radius arms features a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front coil springs providing 6 inches of lift. A Trac Bar relocation bracket with a kicker brace that has been designed to center the axle under the vehicle and includes a Drop Pitman Arm. Rear lift is accomplished with lift blocks and extended length u-bolts.

Top Features and Benefits

  • 6 inch front lift / 4 inch rear lift for level ride
  • Allows use of up to 37 inch tires
  • Heavy duty tubular radius arm correct front caster
  • Track bar relocation bracket centers axle
  • Choose your shocks: Performance, Stealth or Dirt Logic
  • Drop pitman arm corrects steering angles
  • Rear blocks and ubolts
  • Limited Lifetime Warranty

Recommended Tire and Wheel Fitment:

  • 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
  • 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming
  • 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming
View Fabtech K2218 / K2218M / K2218DL Instruction Manual

Product Highlights

Fabtech Peformance Shocks
Affordable Option: These shocks absorber uses twin tube hydraulic construction with 9 stage valving for great ride control. Designed to function great on and off-road using heavy duty components like a 9/16 inch piston rod and 1 3/8 inch OD piston. Featuring a classic white finish.
Fabtech Stealth Shocks
Mid-Range Option: These all black monotube gas shocks feature a 50mm OD seamless steel body with a distinct raised metal nameplate.  A 46mm high flow piston separates gas from oil for a consistant ride. Designed to give a superior ride on and off-road while looking great.
Fabtech Dirt Logic Shocks
Premium Option: Dirt Logic are high performance shocks that feature a 2.25 inch OD stainless steel body that looks amazing while resisting corrosion. The large body allows for a massive 7/8 inch piston rod and 2 inch billet aluminum piston. These shocks are excellent for lifted trucks with larger tires.
Important Notes- Non Dually Models Only.
- Will not fit gas motors.
- Vehicles equipped with 2 piece driveshaft requires fab_fts419.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2022, 2021, 2020, 2019, 2018, 2017
2WD/4WD4WD
Tech Specs
ManufacturerFabtech
Manufacturer Part NumberK2218 / K2218M / K2218DL
Item Numberfab_k2218_k2218m_k2218dl
MPN(UPC)674866103061
Product LineLift Kits
Lift Height6 inch
