4" 2017-2022 Ford F250/F350 4wd (w/diesel engine) 4 Link Lift Kit (w/Dirt Logic Resi Front Shocks) by Fabtech

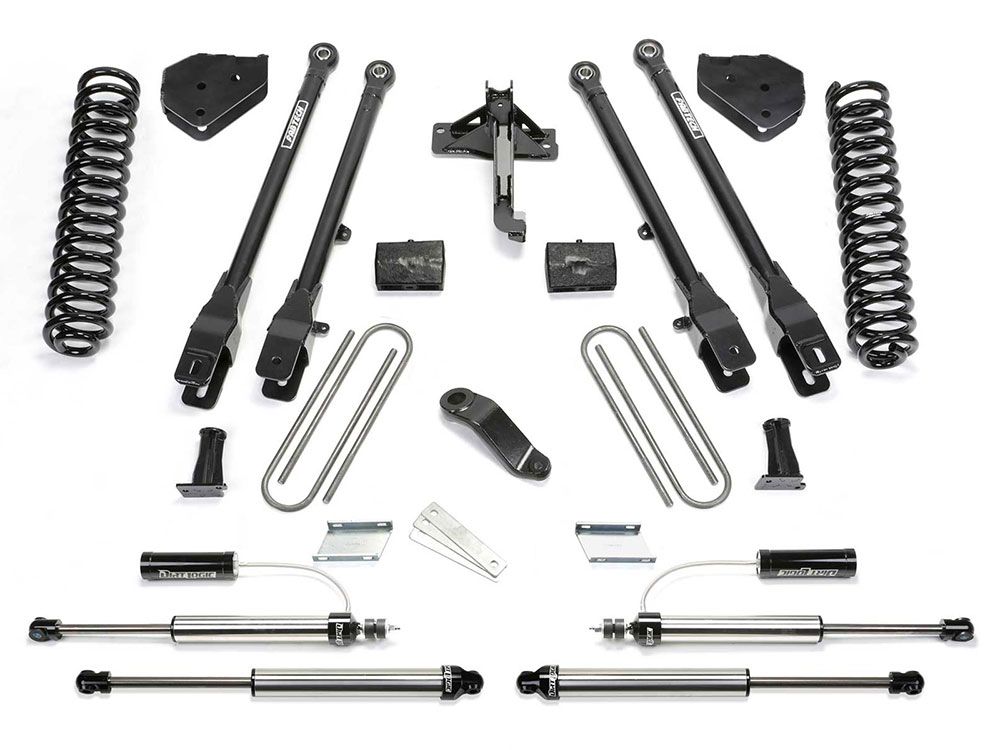

The Fabtech K2290DL 4 inch Lift Kit for the Ford F250 / F350 is an awesome suspension upgrade that not only allows for use of up to 35 inch diameter tires, but great improves suspension performance.  Featuring a bolt-on 4-Link System that provides unsurpassed articulation and wheel travel. These 2 inch diameter heavy wall links feature race style 1 inch Uniballs for superior strength. Thick 1/4 inch steel brackets secure the 4 Links to the frame without cutting or welding. It also comes with new front coil springs providing 4 inches of lift. System includes a Trac Bar relocation bracket with a kicker brace that has been designed to center the axle under the vehicle and includes a Drop Pitman Arm. Rear lift is accomplished with lift blocks and extended length u-bolts.

This kit uses the excellent performing Dirt Logic shock absorbers.  With Resi front shocks for additional fluid and better dampening.  These shocks feature a stainless steel 2.25 inc body that looks great while protecting the shock from the elements.

Top Features and Benefits

• 4-Link system replaces factory radius arms for amazing articulation and wheel travel
• Dirt Logic front and rear shocks, with Resi front shocks
• Improved handling for highway and dirt conditions
• 2" diameter heavy wall link arms
• 5 ton joints for extreme durability
• Front coil springs
• Track bar relocation bracket to keep front axle centered
• Sway bar drop brackets maintain proper sway bar angles
• Drop pitman arm for corrected steering anlges
• Rear axle blocks and ubolts
• Limited Lifetime Warranty

Recommended Tires and Wheels

• 35/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
• 35/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming
• 35/12.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming
