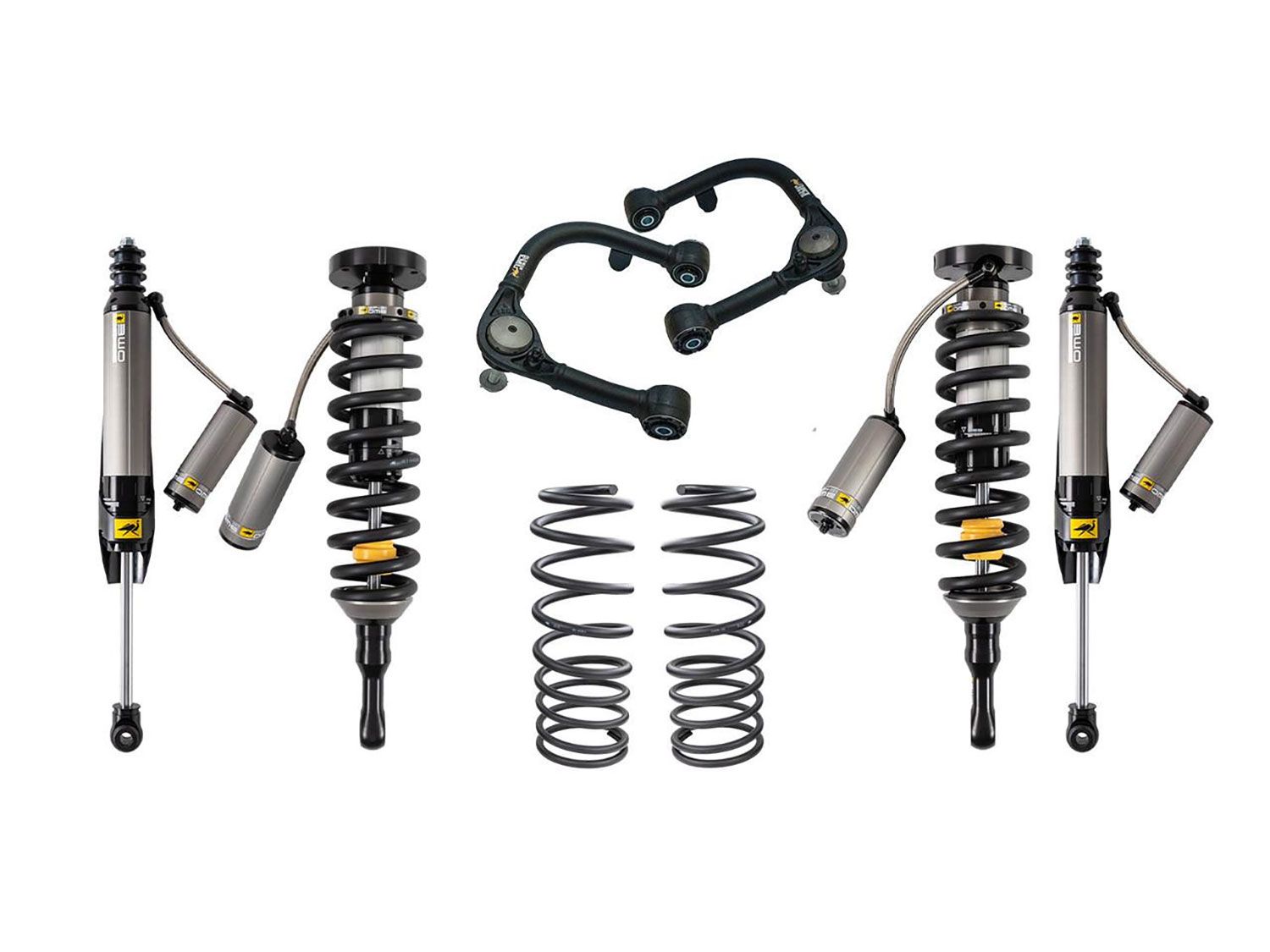

3" 2024-2026 Toyota Tacoma BP-51 Lift Kit (w/upper control arms) by Old Man Emu

Old Man Emu 1209K / 1211K / 1213K Suspension Lift Kit for the 4th Generation Toyota Tacoma is a fully integrated, tuned-and-matched system engineered to deliver premium ride quality, control, and durability across a wide range of driving conditions. Designed specifically for the Tacoma platform, this kit accounts for how the vehicle is outfitted and the environments it will encounter, ensuring consistent performance without suspension sag or ride degradation over time.

At the core of this system are Old Man Emu BP-51 coilovers / shock absorbers—advanced, user-adjustable internal bypass dampers developed and manufactured in-house by ARB. Featuring independent on-vehicle adjustment with 10 levels of compression and 10 levels of rebound, BP-51 shocks allow precise tuning to match varying loads, terrain, and driving styles. The internal bypass design delivers position-sensitive damping, providing a smooth, compliant ride at normal travel while increasing control near the end of the stroke to manage larger impacts and rough terrain.

This suspension kit is tuned to provide approximately 3 inches of front lift for vehicles carrying 0–330 lbs of additional front-end weight, along with 2 inches of rear lift on unloaded up to 880 lbs setups. Remote-mounted aluminum reservoirs increase oil volume for improved cooling and consistent damping during extended off-road use. The 6061-grade aluminum shock bodies feature a Type III hard-anodized finish for excellent heat dissipation and corrosion resistance.

Designed as a true bolt-in solution, the Old Man Emu kit installs using factory mounting locations and includes upgraded upper control arms to correct suspension geometry and maintain proper alignment after lifting. The result is a refined, highly capable suspension system that enhances comfort, stability, and control both on-road and off-road, making it well-suited for daily driving, overlanding, and demanding trail use.

Features and Benefits:

• Old Man Emu 1209K suspension lift kit designed for the 4th-generation Toyota Tacoma
• Tuned and matched integrated system engineered for ride quality, control, and long-term durability
• Provides approximately 3 inches of front lift for vehicles with 0–330 lbs of added front-end weight
• Delivers approximately 2 inches of rear lift on unloaded to 880 lbs rear configurations
• Includes Old Man Emu BP-51 internal bypass coilovers and rear shocks
• BP-51 shocks feature independent on-vehicle adjustment with 10 levels of compression and 10 levels of rebound
• Internal bypass technology provides position-sensitive damping for comfort at ride height and control at end zones
• Remote-mounted aluminum reservoirs increase oil volume for improved cooling during extended off-road use
• 6061-grade aluminum shock bodies with Type III hard-anodized finish for heat dissipation and corrosion resistance
• Vehicle-specific bolt-in design uses factory mounting locations with no modification required
• Includes upgraded upper control arm to correct suspension geometry and maintain proper alignment
• Designed to prevent suspension sag when accessories or additional weight are added
• Suitable for daily driving, overlanding, and demanding off-road terrain
• Manufactured and tested in-house by ARB to meet strict quality and durability standards
