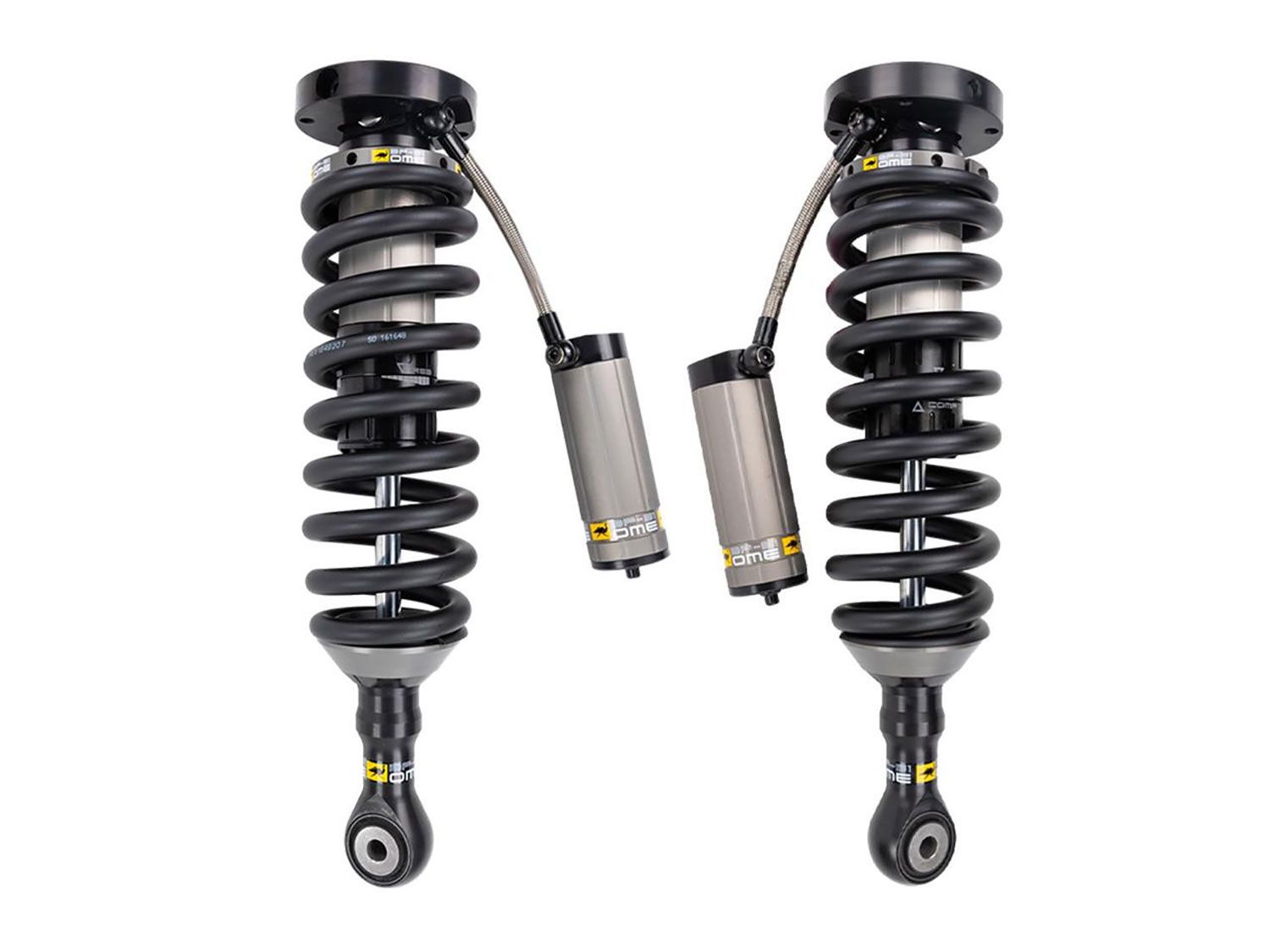

Tundra 2022-2026 Toyota Front BP-51 Coilovers (Pair) by Old Man Emu

Old Man Emu 3208K BP-51 Coilovers for the 3rd Generation Toyota Tundra are engineered for drivers who want premium suspension performance while retaining flexibility for future rear suspension upgrades. Designed as part of Old Man Emu’s tuned-and-matched integrated suspension lineup, this kit focuses on delivering exceptional ride quality, control, and durability, depending on how the vehicle is outfitted and used.

Unlike conventional adjustable shocks, BP-51 units feature independent on-vehicle adjustment of both compression and rebound, with 10 levels available for each. This allows precise tuning to match varying driving conditions, terrain types, and added front-end weight.

The BP-51 internal bypass design provides position-sensitive damping, delivering a smooth and compliant ride during everyday driving while progressively increasing control as the shock approaches full compression or extension. This helps absorb large impacts, reduce harsh top-out, and maintain stability over corrugations, rocks, and uneven terrain.

This kit is specifically tuned for the 3rd-generation Toyota Tundra to provide approximately 3 inches of front lift for vehicles carrying 0–330 lbs of additional front-end weight. It is designed as a front suspension system only and does not include rear shocks or rear springs, making it ideal for builds where the rear suspension will be selected separately based on load or use. Constructed from 6061-grade aluminum with a Type III hard-anodized finish, the BP-51 coilovers offer excellent heat dissipation, corrosion resistance, and long-term durability. Remote-mounted oil reservoirs increase oil volume for improved cooling and consistent performance during extended off-road use. Designed as a direct bolt-in replacement using factory mounting locations, the Old Man Emu 3208K delivers a premium suspension upgrade with no cutting or vehicle modification required.

Features and Benefits:

• Designed specifically for the 3rd generation Toyota Tundra with approximately 3 inches of front lift for vehicles carrying 0–330 lbs of added front-end weight
• Part of Old Man Emu’s tuned and matched integrated suspension system for improved ride quality, control, and durability
• Includes Old Man Emu BP-51 front coilover struts with advanced internal bypass technology
• Independent on-vehicle adjustment with 10 levels of compression and 10 levels of rebound tuning
• The internal bypass design provides position-sensitive damping for comfort during normal driving and increased control on rough terrain.
• Remote-mounted oil reservoirs increase oil volume for improved cooling and consistent off-road performance.
• Constructed from 6061-grade aluminum with a Type III hard-anodized finish for superior heat dissipation and corrosion resistance
• Vehicle-specific tuning developed and manufactured in-house by ARB’s Old Man Emu engineers
• Direct bolt-in installation using factory mounting locations with no cutting or vehicle modification required
• Front suspension system only; does not include rear shocks or rear springs, allowing rear setup to be customized separately.
• Includes sway bar spacer and BP-51 shock fitting hardware for proper installation and geometry
