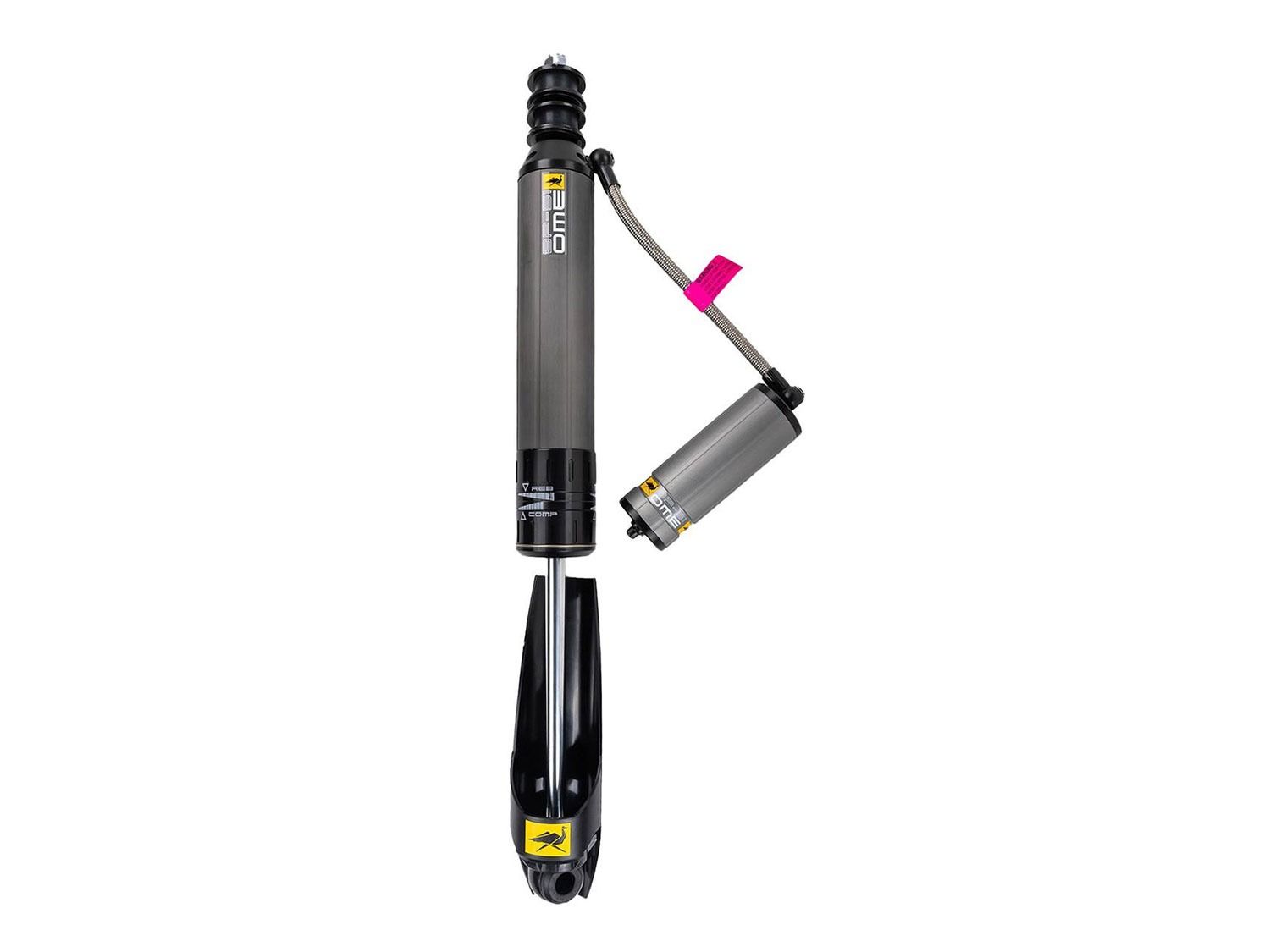

Tundra 2022-2026 Toyota Rear BP-51 Shock by Old Man Emu

Old Man Emu BP-51 Rear Shock Absorber, Part Number BP5160068, is engineered for the 3rd generation Toyota Tundra to deliver race-proven suspension performance for everyday driving and demanding off-road use. Developed and extensively tested in Australia, the BP-51 brings advanced motorsport technology to a bolt-on, vehicle-specific shock that enhances comfort, control, and durability without requiring vehicle modifications.

At the core of the BP-51 is a large-bore, position- and velocity-sensitive internal bypass design paired with a remote reservoir. This technology allows the shock to provide a smooth, compliant ride during normal driving while progressively increasing damping force near the end zones to control harsh impacts, bottom-outs, and chassis movement when driving off-road. External adjusters provide 10 levels of compression and 10 levels of rebound tuning, allowing precise, on-vehicle ride customization to suit terrain, load, and driving style. Constructed entirely from 6061-T6 aluminum with a Type III 40-micron hard-anodized finish, the BP-51 rear shock offers exceptional heat dissipation, corrosion resistance, and protection from stone damage. Designed, engineered, tested, and manufactured in-house by ARB’s Old Man Emu suspension team, the BP-51 rear shock delivers consistent, fade-free performance and long-term reliability for drivers who demand premium suspension performance both on and off the road.

Features and Benefits:

• Rear BP-51 shock absorber explicitly designed for 3rd generation Toyota Tundra applications
• Part number BP5160068 featuring race-proven BP-51 internal bypass technology
• Position- and velocity-sensitive damping delivers comfort during daily driving with increased control in harsh off-road conditions.
• Internal bypass design increases damping force at end zones for improved chassis control and bottom-out resistance.
• Large 51mm (2-inch) internal bore provides increased oil volume for consistent, fade-free performance.
• External, on-vehicle adjustment with 10 levels of compression tuning
• External, on-vehicle adjustment with 10 levels of rebound tuning for precise ride customization
• Remote-mounted reservoir increases oil capacity and helps manage heat during extended off-road use
• Constructed from a 6061-T6 aluminum body and reservoir with a Type III 40-micron hard anodized finish
• Hard anodized aluminum construction improves heat dissipation, corrosion resistance, and protection from stone damage
• Bolt-on, application-specific design installs without vehicle modifications
• Designed, developed, tested, and manufactured entirely in-house by ARB’s Old Man Emu engineering team
• Built to deliver exceptional ride comfort on-road and maximum control in demanding off-road environments
