Tundra 2022-2025 Toyota Front MT64 Coilover Strut by Old Man Emu

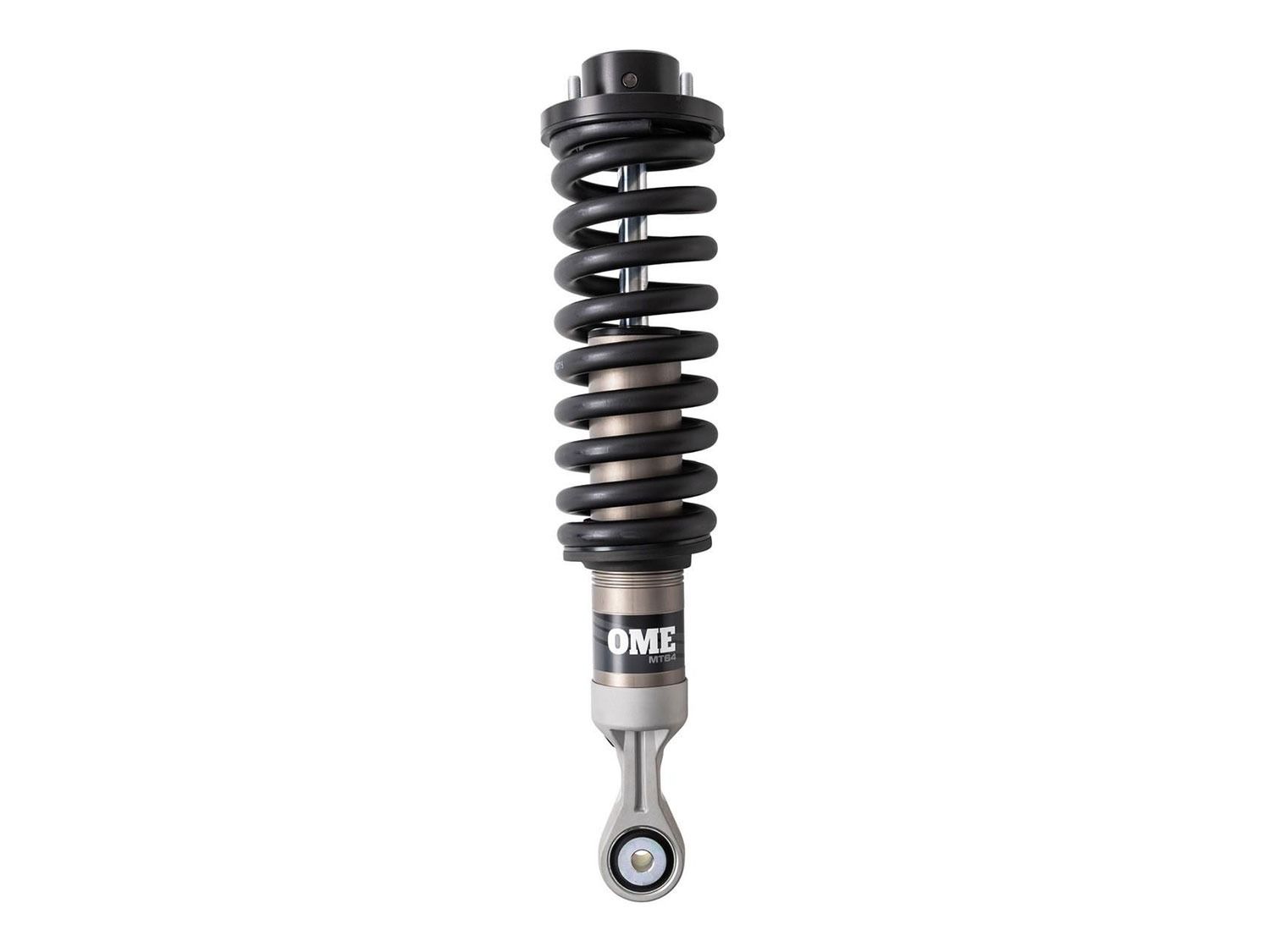

The Old Man Emu MT64 Coilover Assembly (Part Number MT64996005) for the 3rd Generation Toyota Tundra is engineered to deliver exceptional ride quality, control, and durability across a wide range of driving conditions. Designed as a proper all-around solution, this coilover is equally capable of handling demanding overlanding expeditions, daily driving, and custom builds that range from stock to heavily accessorized vehicles.

At the core of the MT64 is a massive 2.8-inch monotube aluminum shock body paired with vehicle-specific damping, allowing the suspension to manage heat efficiently while maintaining consistent performance over long distances and rough terrain. Supplied as a fully preassembled coilover, this unit bolts directly onto your Tundra, simplifying installation and reducing downtime. From the factory, it is set to deliver approximately 3 inches of front lift on a stock-weight vehicle, with the flexibility to adjust ride height between 1.75 and 3 inches using the integrated snap-ring grooves. Built using aerospace-grade aluminum with a hard-anodized finish, the MT64 coilover offers excellent corrosion resistance, impact protection, and heat dissipation. Digressive valving responds instantly to changing surface conditions, while a hydraulic end-zone top-out provides added cushioning at full extension to reduce harsh impacts. The result is a smooth, controlled ride that inspires confidence both on pavement and off the beaten path.

Designed, engineered, and manufactured by ARB’s Old Man Emu suspension team, the MT64 coilover is backed by extensive real-world testing and a 3-year warranty. For Tundra owners seeking a refined, durable, and highly capable front suspension solution, the MT64 delivers comfort, control, and reliability mile after mile.

Features and Benefits:

• Preassembled MT64 front coilover explicitly designed for the 3rd-generation Toyota Tundra
• Factory set to provide 3 inches of front lift on vehicles with stock front-end weight
• Adjustable 6-position snap-ring spring seat allows lift adjustment from 1.75 to 3 inches
• Complete coilover assembly provides direct bolt-on installation with no modification required
• Massive 2.8-inch monotube aluminum shock body increases oil volume for improved heat control
• Vehicle-specific damping tuned for balanced on-road comfort and off-road performance
• Aerospace-grade aluminum construction dissipates heat faster than steel and resists stone damage
• Forged body cap and rod ends reduce weight while maintaining structural strength
• Digressive valving reacts instantly to changing terrain conditions
• Hydraulic end-zone top-out adds cushioning at full extension to reduce harsh impacts
• Large 64mm internal bore allows bigger piston and shim stacks for refined damping control
• Double-bonded rubber bushings reduce noise, vibration, and harshness
• 7/8-inch hard chrome piston rod provides improved strength and stability
• Military-spec hard anodized finish offers superior corrosion resistance
• Replaceable high-density polyethylene shaft guard protects against debris damage
• Multi-lip combo seal designed to handle high pressure, heat, and shaft speeds
• Backed by ARB’s global support network with a 3-year warranty
• Designed, engineered, and manufactured by ARB’s Old Man Emu suspension team
