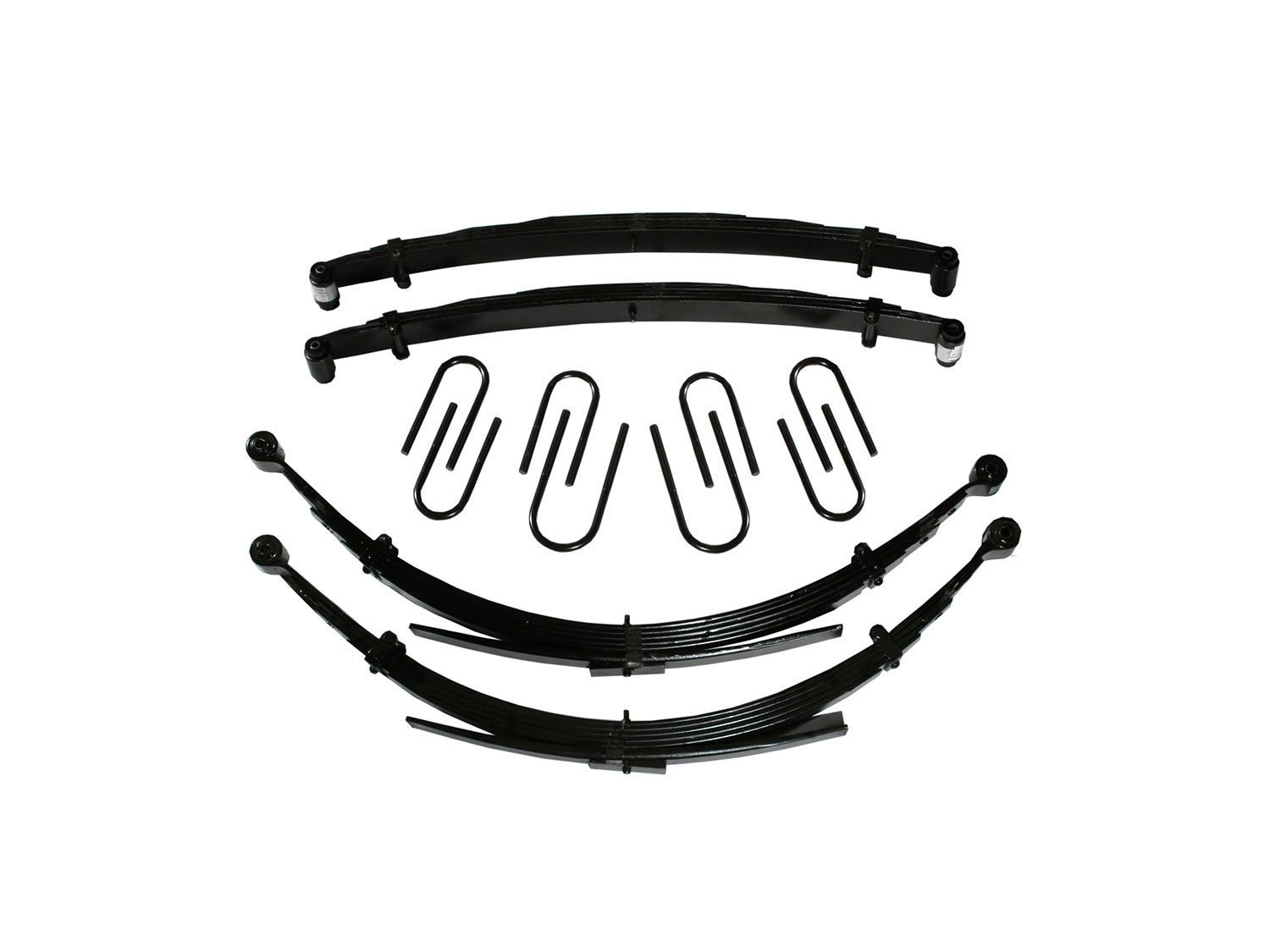

6" 1977-1986 GMC Pickup 1 ton 4WD Lift Kit (w/rear leaf springs) by Skyjacker
From $1,485.35
FREE SHIPPING !!
on orders +$149, exclusions apply
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Got Questions? We can help!
888-452-2548
Product Description
The Skyjacker C160CKS 6-Inch Suspension Lift System for 1977-1986 GMC 1-Ton 4WD pickup trucks is designed to provide substantial ground clearance, increased tire clearance, and a commanding lifted stance for classic heavy-duty Chevy trucks. With 6 inches of suspension lift and clearance for up to 37x12.50 tires, this system is well suited for trucks being built for increased off-road clearance and a more aggressive appearance. Multiple Skyjacker shock options allow the suspension to be configured around the desired ride and damping characteristics. The C160CKS is designed around the factory leaf-spring suspension platform and provides the increased suspension height needed to accommodate larger tires and additional ground clearance. Installation is rated as intermediate and requires no cutting or welding. Available shock configurations include Skyjacker Black MAX shocks for dependable everyday performance, Hydro 7000 hydraulic shocks for smooth and controlled damping, Nitro 8000 nitrogen-charged shocks for increased control and handling, and M95 monotube shocks for consistent damping performance and improved heat management. Features & Benefits
|
| Important Notes1. Driveline / Exhaust Modifications may be necessary. 2. Transfer Case Lowering Kit # TCL15 May Be Needed. 3. Recommended 4-inch offset drag link available: GMDL4 4. Fitted leafs are available for additional weight capacity (big block or diesel engine) 6 inch FLC160, 8 inch FLC180, use ubolt kit UCCF 5. If equipped with a front sway bar, lowering brackets required: 4-inch lift SBL20, 6-8 inch lift SBL40 6. Recommended brake lines: 1979-1987 6-8 inch lift front #FBL29 and rear RBL20, 1973-1978 6-8 inch lift front #FBL28 and rear #RBL20. 7. Drop pitman arm CA50 and steering block SB60 are required, but sold separately or as options. Needed to maintain proper steering angles. 8. Note: This lift kit is available to purchase without shocks; however, extended shocks are required to install properly. |
Vehicle Fitment
| Make | GMC |
|---|---|
| Model | Pickup 1 ton |
| Year Fitment | 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977 |
| 2WD/4WD | 4WD |
Tech Specs
| Manufacturer | Skyjacker |
|---|---|
| Manufacturer Part Number | C160CKS |
| Item Number | skj_c160cks |
| MPN(UPC) | 803696118383 |
| Product Line | Lift Kits |
| Lift Height | 6 inch |
