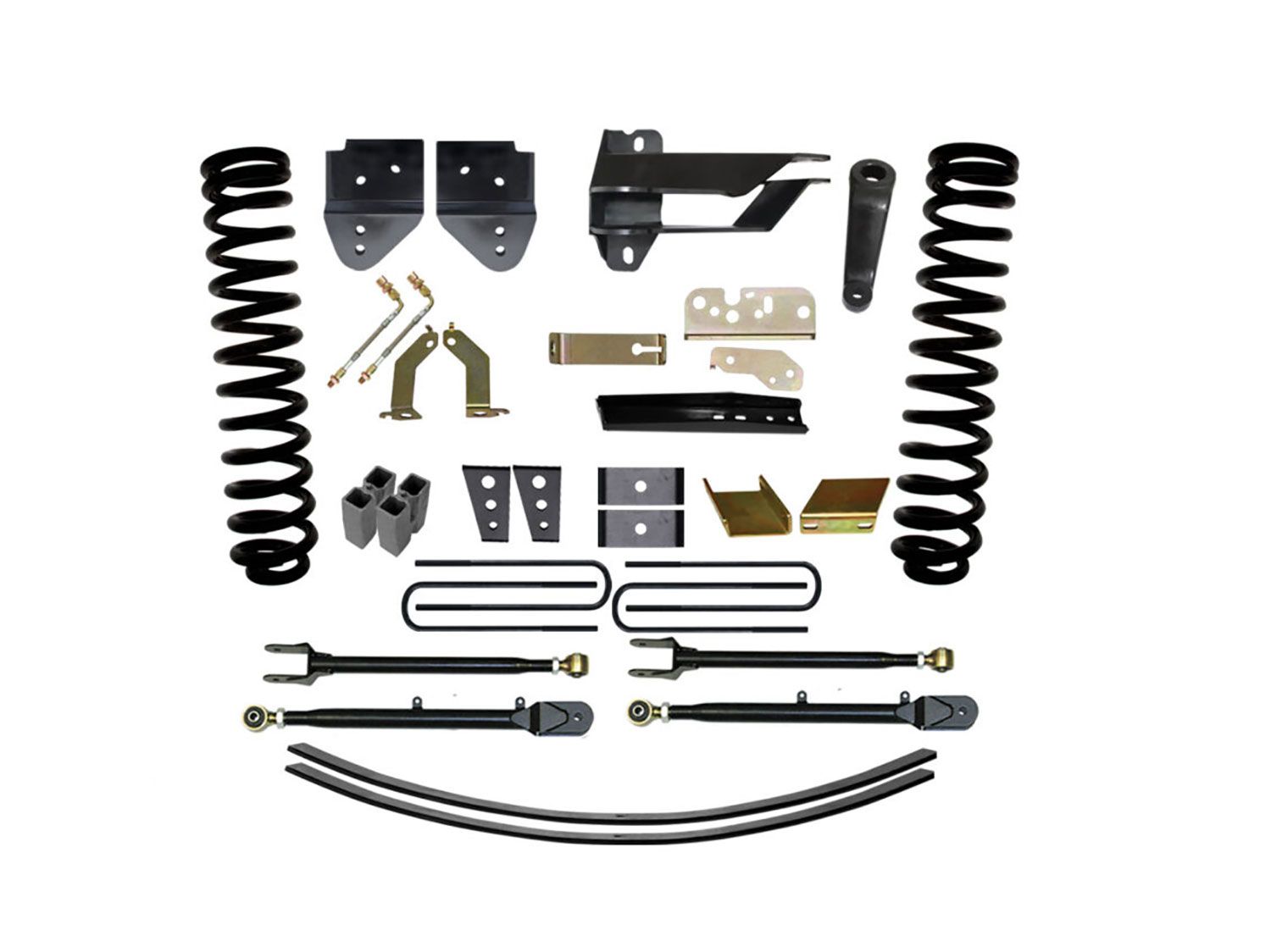

8.5" 2017-2022 Ford F250/F350 (w/Diesel Engine) 4-Link Lift Kit by Skyjacker

Skyjacker’s F17852K 8.5" 4-Link Conversion System for the Ford F250 and F350 Super Duty delivers an exceptional suspension upgrade that replaces the factory radius arm setup with fully adjustable upper and lower Flex Links. Built from 2” OD x .250 wall DOM tubing, these heavy-duty control arms allow precision caster tuning for improved handling and alignment on lifted setups.

This complete system re-engineers the suspension geometry for increased articulation, control, and ride quality. Skyjacker’s variable-rate Softride® coil springs are custom-tuned for Super Duty 4WD diesel applications, maximizing wheel travel and smoothing out on- and off-road driving conditions. A high-strength track bar relocation bracket secures the front crossmember to keep the axle centered, while a drop pitman arm corrects the steering angle. Additional components include sway bar lowering brackets, front bump stop spacers, front brake line extensions, and a steering stabilizer relocation bracket, all designed to provide precise handling and improved stability. The rear lift is achieved using a 5.5" block and U-bolt kit combined with Softride® Add-A-Leafs, ensuring a more level stance and enhanced load support. The system also includes E-brake relocation brackets, rear bump stop spacers, braided stainless rear brake line extensions, and rear exhaust hanger brackets.

Features and Benefits:

• Replaces OEM radius arms with fully adjustable upper and lower Flex Links for precise caster alignment
• Variable-rate Softride® front coil springs tuned for Super Duty 4WD diesel improve ride quality and travel
• Max tire and wheel size: 38x12.50/17-20x9 w/5" backspacing
• Includes heavy-duty track bar relocation bracket, drop pitman arm, and sway bar lowering brackets
• Rear lift achieved with 5.5" blocks, U-bolts, and Softride® Add-A-Leafs for a leveled stance and added support
• Front and rear ADX 2.0 Remote Reservoir Monotube Shocks offer rapid response and enhanced off-road performance
• Choose between Skyjacker's Hydro 7000, Nitro 8000, Black Max, M95, and ADX shocks
• The comprehensive kit includes bump stop spacers, brake line extensions, a steering stabilizer bracket, and exhaust hangers.

Skyjacker Hydro 7000 Shocks

• Hydraulic action provides smooth on-road comfort and reliable off-road damping.
• Twin-tube construction ensures consistent performance and extended shock life.
• Multi-stage valving adapts to a variety of driving conditions and terrains
• White finish with red polyurethane bushings adds a clean, classic look

Skyjacker Nitro 8000 Shocks

• High-pressure nitrogen gas is charged for faster shock response and reduced fade.
• Multi-stage valving delivers a balanced ride on and off the road
• Twin-tube construction ensures durability under heavy-duty use
• Designed for lifted vehicles to enhance stability and control

Skyjacker M95 Monotube Gas Shocks

• High-pressure nitrogen gas is charged for consistent performance and reduced fade.
• Monotube design with a 46mm piston for fast heat dissipation and superior damping control
• Vehicle-specific valving ensures a smooth, controlled ride on and off-road
• Durable, sleek silver finish resists corrosion and adds a clean aesthetic

Skyjacker Black MAX  Shocks

• Twin-tube design with foam-cell technology for fade-free performance in extreme conditions
• 360° arc-welded mounting ends for superior strength and durability
• Black satin finish for a rugged, corrosion-resistant look
• Engineered with vehicle-specific valving for a smooth, controlled ride quality
