|Manufacturer Part Number||05-04-32-400-002|
Sport Tow/Haul Leveling:

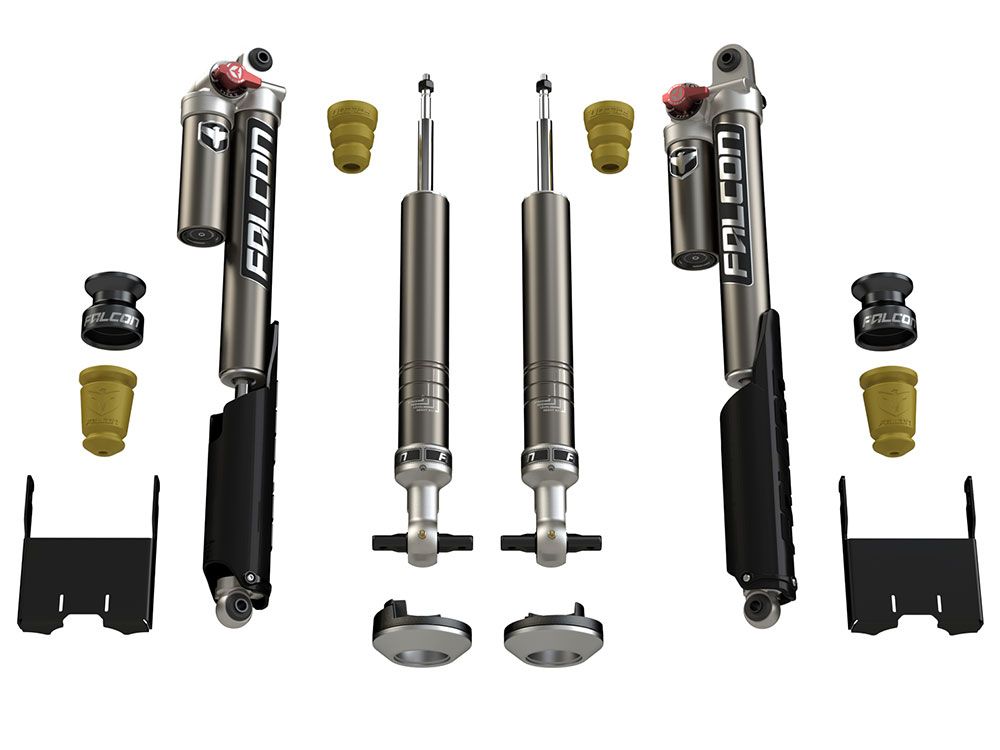

The 2015+ Ford F-150: Falcon Sport Tow/Haul Leveling Shock Absorber System pairs monotube front shock absorbers with adjustable piggyback rear shock absorbers. The rear shocks feature a three-position Fast Adjust Knob that allows the driver to select from Comfort & Control, Moderate Tow/Haul, and Heavy Tow/Haul settings.
ZRT - Zone Rate Tuning:
Zone Rate Tuning (ZRT) manipulates the factory linear-rate spring tuning to produce three distinct performance zones with a more exaggerated spring curve to tackle various driving conditions.
An internal negative-rate spring offsets the factory spring’s preload while in the Extension Zone. This eliminates top out clunk and shock stress at full extension, while softening tire landing and reducing body roll on impact during aggressive driving.
The factory spring rate is unaffected in Drive Zone for a comfortable and controlled ride. A provided progressive microcellular bump stop effectively retunes the spring rate while in Compression Zone to reduce bottoming and body roll during aggressive driving.
VOD - Volume Optimized Damping:
Traditional velocity sensitive shock absorbers react quickly during low speed driving causing excessive “head toss” on rough terrain – or even driveways. Conventional damping then firms up during faster speeds resulting in a jarring ride.
Falcon’s proprietary Volume Optimized Damping (VOD) features a digressive linear valve that produces quicker ramp up for increased damping volume, which improves vehicle feedback and control during low-speed driving. VOD also improves the shock absorber’s ability to reduce bottoming out at full compression during faster speeds or over uneven terrain.
• Front: 0-2.25”
• Leveling monotube shock absorbers
• Adjustable piggyback shock absorbers
Features & Benefits
Sport Tow/Haul Leveling:
• Front leveling monotube shock absorbers w/ fixed rate damping optimized for on- & off-road driving
Falcon Truck Shocks:
• Vehicle-specific shock absorbers
|Important Notes||• Do not use tow/haul modes while unladen as the increased rear stiffness could upset the balance between the front and rear of the vehicle, which could lead to loss of vehicle control. • Never exceed factory tow/haul ratings.|
|Front/Rear||Front and Rear Kit|
|Shock Series||Falcon Series|
