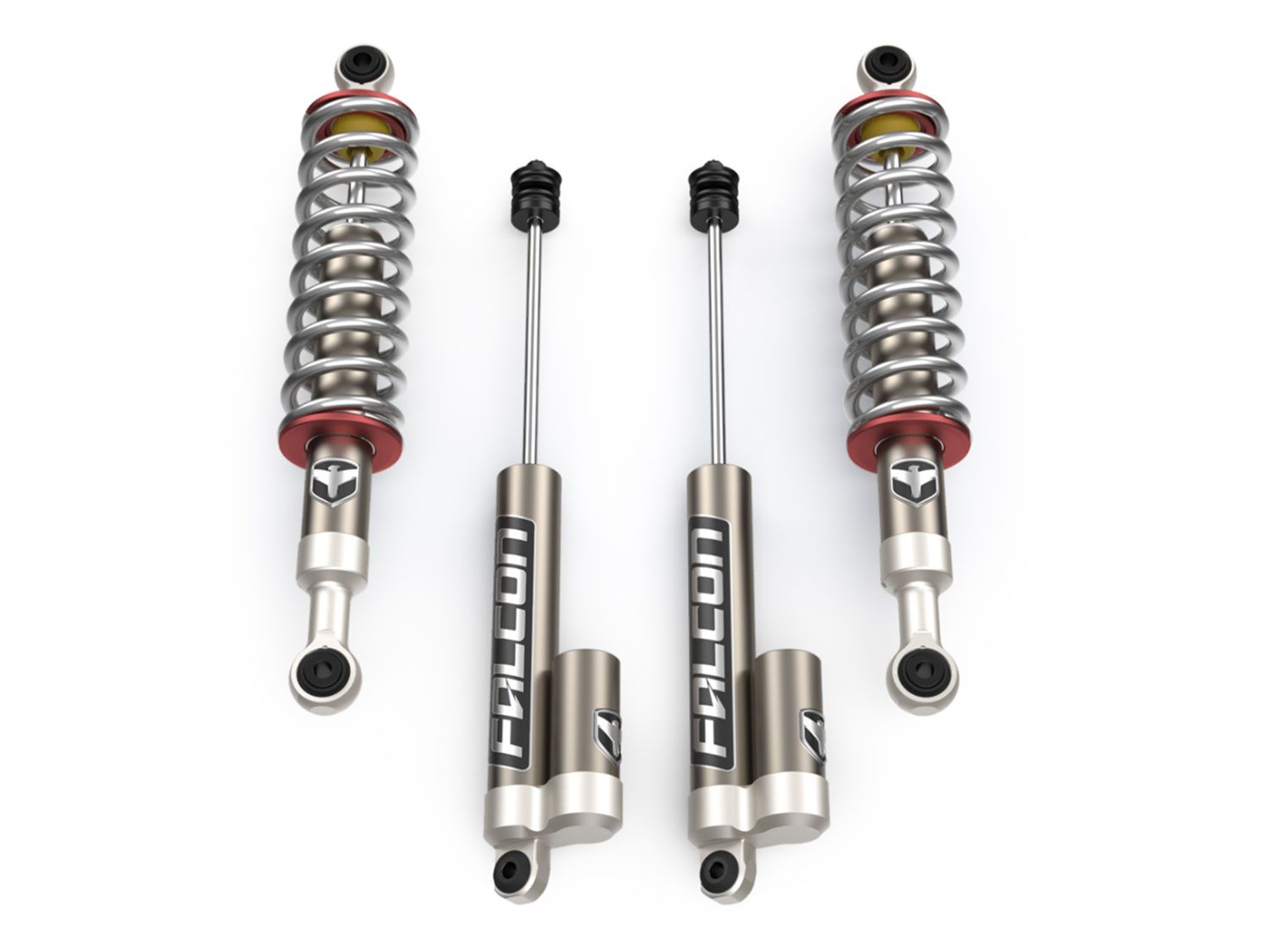

2.5" Toyota Tacoma 2005-2023 4WD - Falcon 1.2 Complete Leveling System by Teraflex

The 08-04-12-400-002, 1.2 Falcon Coilover 2.5 inch Leveling System for 2nd and 3rd Gen Toyota Tacoma is engineered to enhance both ride quality and performance in all driving conditions. Featuring fully assembled front coilover shocks with pre-installed, vehicle-specific springs, this system offers up to 2.5 inches of adjustable leveling to unlock the Tacoma’s full suspension potential.

Installation is quick and efficient thanks to the included ‘Top Hat’ front upper mount, which simplifies the process and improves overall functionality. The front coilovers are precisely tuned to complement the Tacoma’s suspension, delivering balanced on-road comfort and off-road capability. Multiple snap ring grooves allow fine-tuning of ride height to meet specific needs. In the rear, piggyback shocks provide superior stability and cooling, with vehicle-specific tuning to ensure optimal control and articulation. Built from high-strength 6061-T6 aluminum alloy and featuring advanced technologies like VOD (Volume Optimized Damping) and OGS (Oil/Gas Separator), this system is designed to withstand harsh conditions while maintaining consistent, high-performance damping.

Features and Benefits:

• Up to 2.5 inches of adjustable leveling via multiple snap ring grooves
• Fully assembled front coilovers with pre-installed, vehicle-specific springs
• ‘Top Hat’ front upper mount for faster installation and improved performance
• Optimized tuning for balanced on-road comfort and off-road capability
• Piggyback rear shocks for superior stability and cooling
• Optimized fitment ensures unobstructed suspension travel and articulation
• 1.8-inch rear shock body with 0.5-inch shaft for robust performance
• 6061-T6 aluminum alloy shock body resists impacts and protects internal components
• Induction-hardened chrome-plated shafts resist corrosion and rock damage
• Hard-anodized billet piston with Teflon bronze wear band and O-ring
• VOD technology reduces shock bottoming at full compression
• OGS prevents cavitation for consistent damping performance
• High-quality sealed spherical bearings for long service life
• Red Line synthetic oil with anti-wear and lubricity agents
• Tested to 1,000-hour salt spray corrosion resistance standards
• 3.5 hour install time
• Fully serviceable and rebuildable design
• Designed, engineered, and assembled in-house from domestic and global components
• 1-year warranty
