5.5" 2015-2022 GMC Canyon Lift Kit by Zone

Brand: Zone | SKU: C39
As low as $1,106.78 Regular Price $1,383.47

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

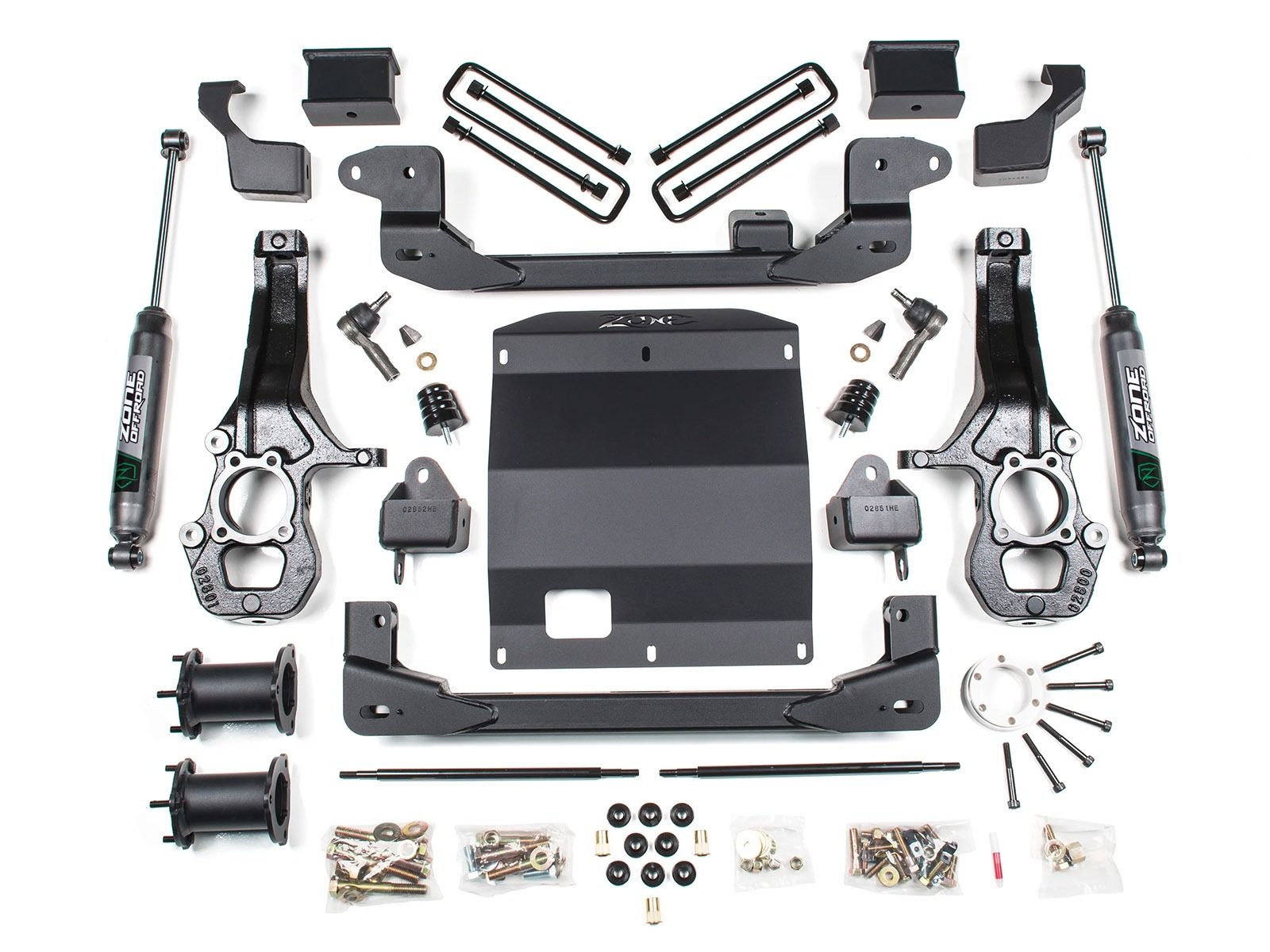

This Zone Off-Road C39 5.5 inch lift kit for the GMC Canyon is an excellent suspension upgrade to allow for larger diameter tires and give the your truck an awesome aggressive look. Featuring ductile cast iron steering knuckles that position the critical steering and control arm mounting location to work in harmony with the heavy-duty fabricated crossmembers. Along with new crossmembers, the provided differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft.  A full width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Moving up, the factory struts are retained and relocated with top spacers to gain the full 5.5" of lift. The top spacers do not require any strut disassembly and properly angle and position the struts to eliminate binding thru wheel travel. Extended sway bar links, bump stop extensions and brake line relocation are also included to make this a complete kit. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front.

Top Features and Benefits

  • 5.5 inch front lift / 4 inch rear lift
  • Allows use of 305/55 tires
  • Massive Ductile Cast Iron Steering Knuckles
  • Heavy Duty Fabricated Crossmembers
  • Front Differential Relocation System to Correct CV Shaft Angles
  • Allows the Use of Factory Driveshafts
  • Heavy Duty full width Differential Skid Plate
  • Full Height front Strut Spacer
  • No strut Disassembly Required
  • Extended Sway Bar Links
  • High Strength Black Powder Coat Finish
  • Maintains Factory Ride Quality Handling Characteristics
  • Limited Lifetime Warranty
Important Notes- The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel may be experienced.
- Minor welding required for steering stops when combined with certain tire/wheel combinations - see installation instructions.
- Inner fender trimming.
- Fits Gas and Diesel models.
- Note: If purchasing this lift kit without shocks please be sure to supply extended shocks which are required to install the kit properly.
Vehicle Fitment
MakeGMC
ModelCanyon
Year Fitment2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
2WD/4WD4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberC39
Item Numberzon_c39n
Product LineLift Kits
Lift Height5 inch
