5.5" 2019-2024 Dodge Ram 3500 (w/Gas Engine) 4WD Radius Arm Lift Kit by Zone

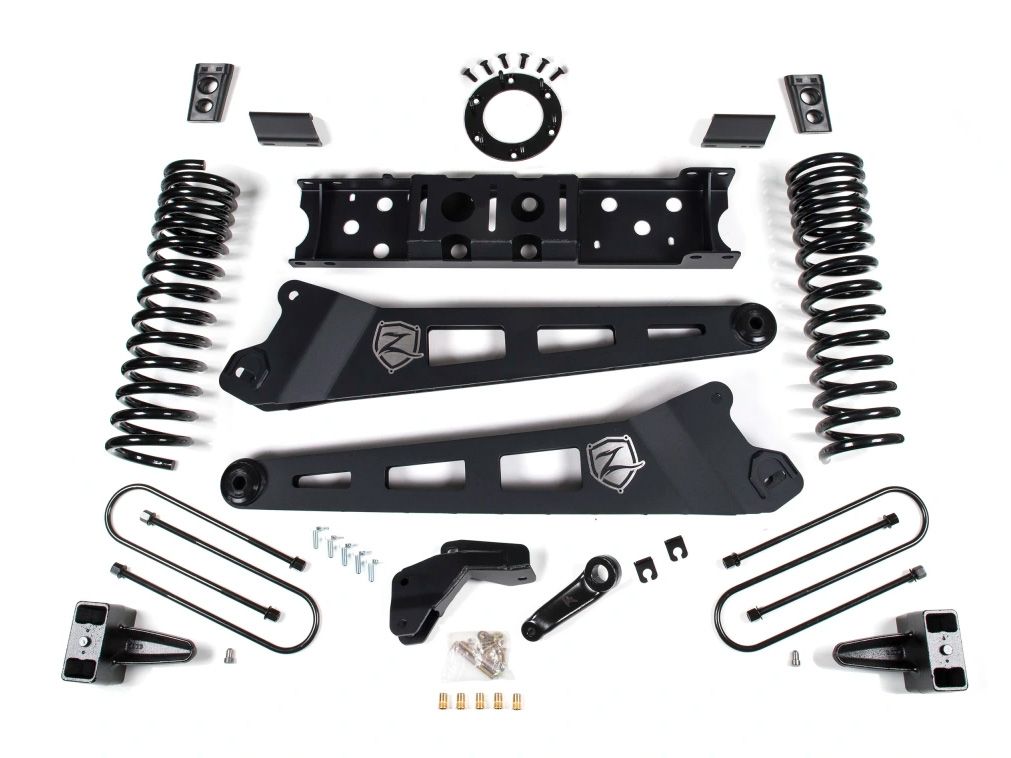

This Zone Off-Road D121 / D122 5.5 inch lift kit for the Dodge Ram 3500 is an excellent upgrade to allow for use of up to 37 inch diameter tires. Featuring massive radius arms made with 1/4 inch steel for optimal ground clearance compared to other drop bracket kits on the market. A dropped pitman arm and track bar relocation bracket are included in the 5.5 inch system to properly align the front axle after lifting. Rear lift blocks raise the rear 5 inches for a level stance.

Features and Benefits:

• Provides 5.5" of front lift / 5" of rear lift
• Allows for use of 37 inch diameter tires
• 1/4 inch boxed radius arms with oversize greaseable bushings
• Progressive rate front coil springs
• Track bar bracket and dropped pitman arm included to correct steering geometry
• HD transmission crossmember and t-case indexing ring to correct front driveline angles
• Sway bar drop brackets to maintain the OE sway bar angle
• Front bump stop spacers
• Front and rear brake line relocation brackets
• Install time: 7-9 hours
• Made in the USA
• Limited Lifetime Warranty
