4" 2015-2020 Ford F150 4WD Lift Kit by Zone Brand: Zone | SKU: F47 / F47N / F47F
$1308.7
- +
1308.7

4" 2015-2020 Ford F150 4WD Lift Kit by Zone

Brand: Zone | SKU: F47 / F47N / F47F
From $1,308.70

4" 2015-2020 Ford F150 4WD Lift Kit by Zone

Brand: Zone | SKU: F47 / F47N / F47F
From $1,308.70


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

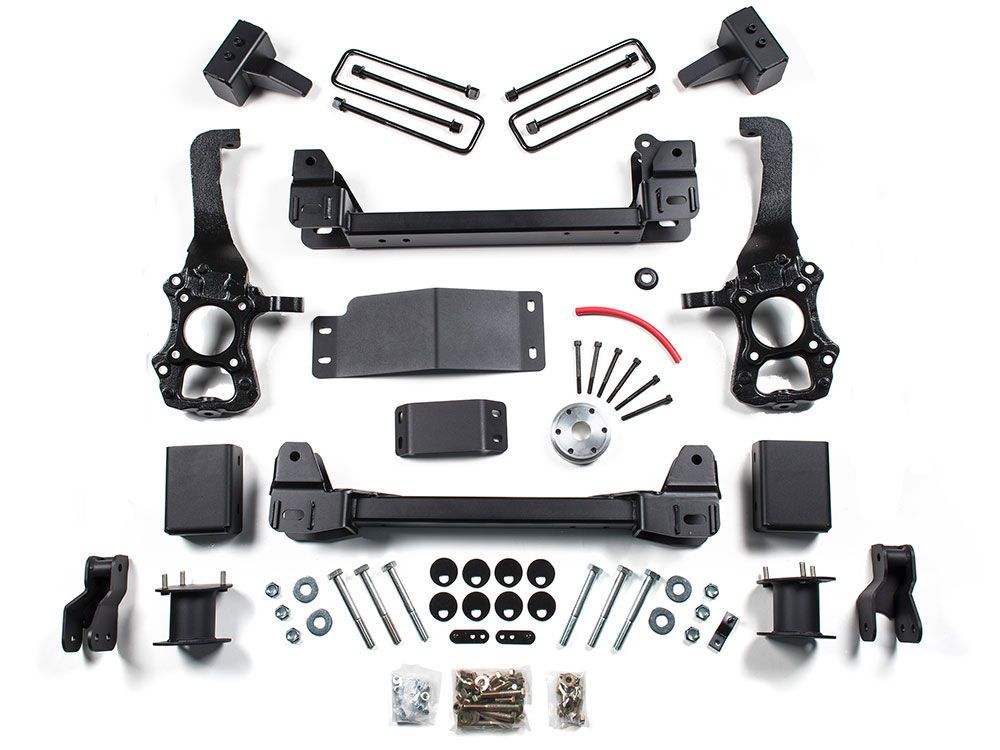

The Zone Off-Road F47 4 inch lift kit for the 2015 thru 2020 Ford F150 4wd is an excellent suspension upgrade to transform your truck.  Once installed you will have clearance to fit up to 35 x 12.5 tires for an aggressive off-road look. Featuring two heavy duty 1-piece crossmembers and massive ductile cast iron steering knuckles. Differential relocation brackets place the front differential for perfect CV angles and still allow for the factory front driveshaft to perform as is should. The 4" of lift is provided by bolt-on strut spacers do not require disassembly of the factory struts to install. New eccentric cam bolts make adjusting the alignment easy, sway bar drops adjust the sway bar to its optimum position and a heavy 1/4" thick differential skid plate protects the underside when off driving off road. In the rear, full cast iron lift blocks with integrated bump stop wings provide enough lift to level the truck nicely.

Top Features and Benefits

  • Allows use of 35 inch diameter tires
  • Front and rear heavy duty 1-piece lower control arm crossmembers
  • Massive ductile cast iron steering knuckles
  • Full differential relocation bracket system included to properly correct CV shaft angles
  • Includes bolt-on strut spacers - strut disassembly not required
  • New eccentric cam bolts included for easy alignment
  • Includes sway bar relocation brackets to achieve optimum position for sway bar
  • 1/4" thick differential skid plate included
  • Install time: 8 to 10 hours
  • Made in the USA
  • Limited Lifetime Warranty

Recommended Tires and Wheels

  • Max Tire Size: 37 x 12.5, Wheel Size: 18 x 9, Back Spacing: 5-5.5 inches
  • Max Tire Size: 37 x 12.5, Wheel Size: 20 x 9, Back Spacing: 5-5.5 inches
Important NotesRequires frame bracket modification
18" wheels should be test fit to ensure proper tie rod end clearance. Wheel profiles can vary between manufacturers
Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire
Vehicles equipped with a 2-piece rear driveshaft may require carrier bearing drop kit D5405
Depending on wheel selection, minor trimming may be required to fit tire
- Note: If purchasing this lift kit without shocks please be sure to supply extended shocks which are required to install the kit properly.
Vehicle Fitment
MakeFord
ModelF150
Year Fitment2020, 2019, 2018, 2017, 2016, 2015
2WD/4WD4WD
Tech Specs
ManufacturerZone
Manufacturer Part NumberF47 / F47N / F47F
Item Numberzon_f47n
Product LineLift Kits
Lift Height4 inch
