6" 2015-2020 Ford F150 4WD Lift Kit by Zone

Brand: Zone | SKU: F53N
As low as $1,308.70

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

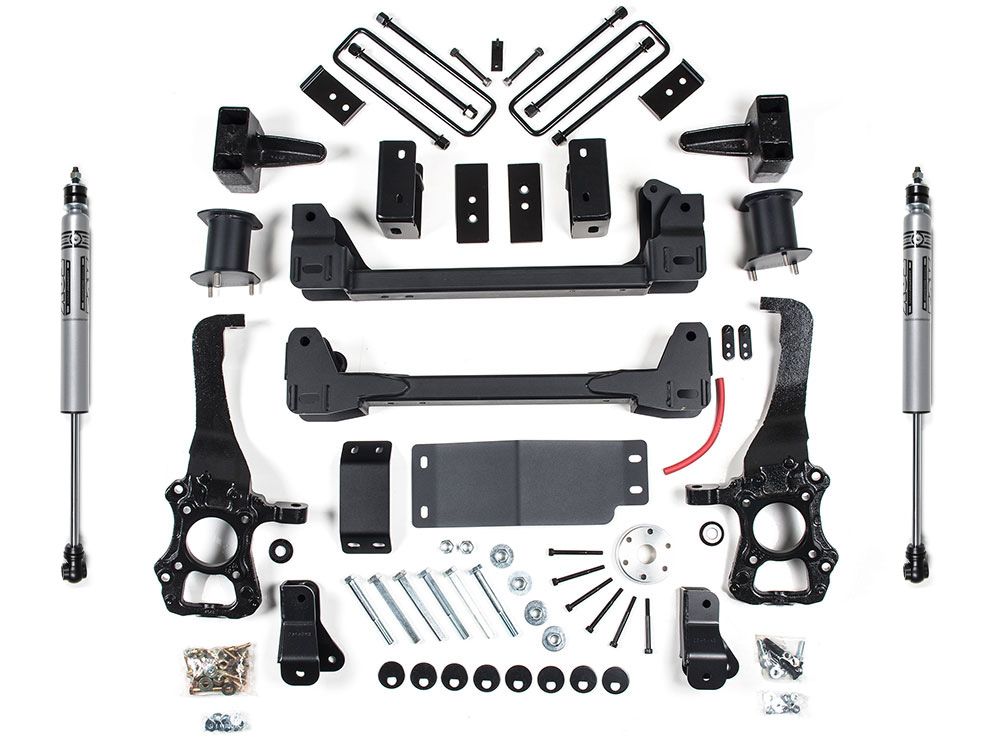

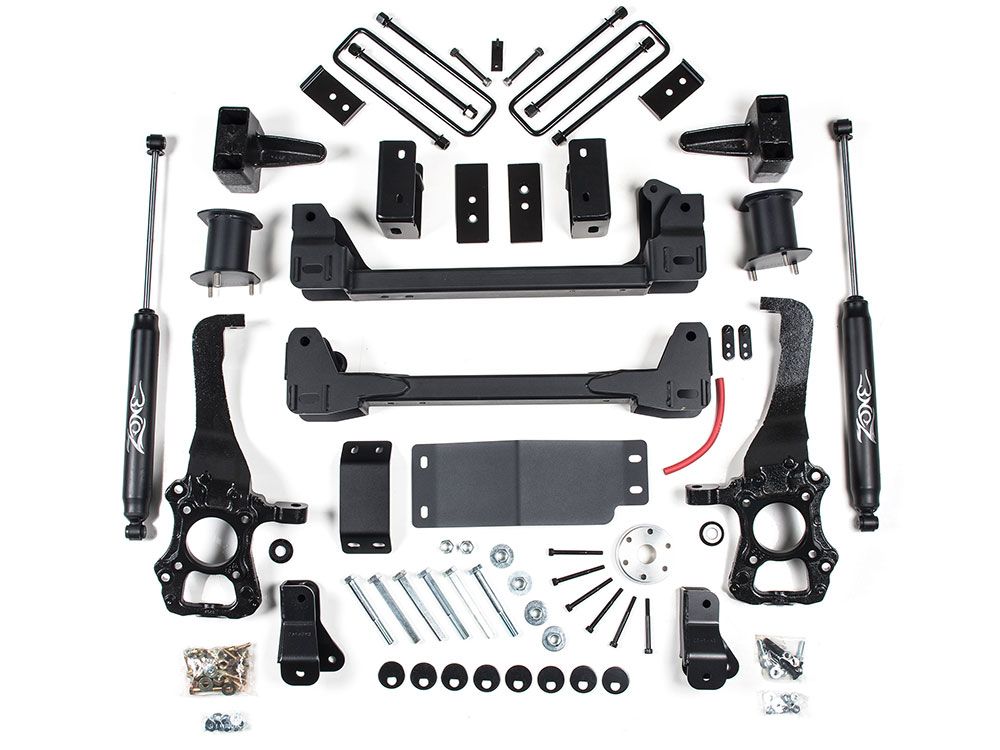

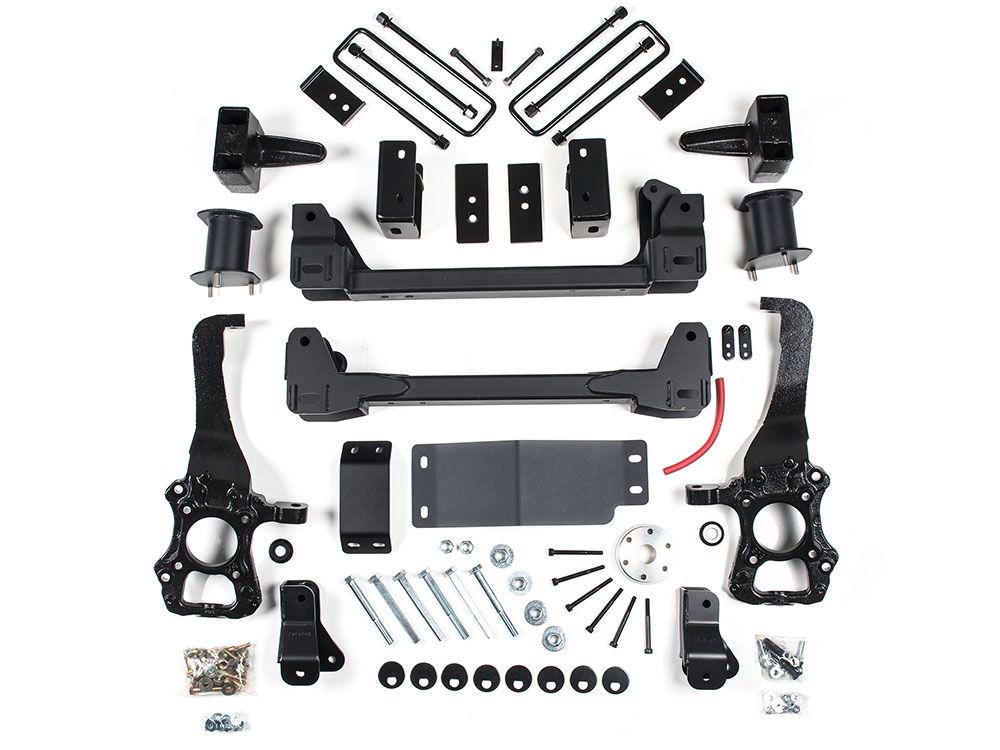

This Zone Off-Road F53 / F85 6 inch lift kit for the Ford F150 is built around 2 heavy duty 1-piece lower control arm crossmembers and massive ductile cast iron steering knuckles. Differential relocation brackets place the front differential for perfect CV angles and still allow for the factory front driveshaft to perform as is should. The 6" of lift is provided by bolt-on strut spacers that do not require disassembly of the factory struts to install. New eccentric cam bolts make adjusting the alignment easy, sway bar drops adjust the sway bar to its optimum position and a heavy 1/4" thick differential skid plate protects the underside when off driving off road.

In the rear, full 4" or 5" cast iron lift blocks with integrated bump stop wings provide enough lift to level the truck nicely. Rear Hydro or optional Nitro shocks finish out the installation and provide enough clearance for a maximum sized tire of 37x12.50.

Featured Technology & Benefits:

  • Front and rear heavy duty 1-piece lower control arm crossmembers
  • Massive ductile cast iron steering knuckles
  • Full differential relocation bracket system included to properly correct CV shaft angles
  • Includes bolt-on strut spacers - strut disassembly not required
  • New eccentric cam bolts included for easy alignment
  • Includes sway bar relocation brackets to acheive optimum position for sway bar
  • 1/4" thick differential skid plate included
  • Rear Blocks with integrated bump stop wings
  • Max recommended tire size: 37x12.50 (see tire/wheel fitment below)
  • Limited Lifetime Warranty

Quick Specs:

  • Front Lift Height: 6″
  • Front Lift Method: Strut Spacer
  • Rear Lift Height: 4" or 5″
  • Rear Lift Method: Blocks
  • Install Time Hrs: 8-10
  • Difficulty Level 1-5: 4
  • Wheel Size: 18 x 9
  • Back Spacing: 5 - 5.5″
  • Max Tire Size: 37x12.50
  • Wheel Size: 20 x 9
  • Back Spacing: 5 - 5.5″
  • Max Tire Size: 37x12.50
Important Notes- Requires frame bracket modification
- 18" wheels with 5-5.5" of backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance
- 18" or larger diameter wheels required. Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire 37x12.50 tires may require some trimming
- Vehicles equipped with a 2 piece rear driveshaft and carrier bearing may require carrier bearing drop kit # D5405
- Kit includes a 5" rear block kit (#F2639) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is available in the options if a more level stance is preferred.
- Models equipped with Auto 4wd may require front driveshaft replacement
- Note: This lift kit is available to purchase without shocks, however extended shocks are required to install properly
Vehicle Fitment
Year Fitment2020, 2019, 2018, 2017, 2016, 2015
Tech Specs
Manufacturer Part NumberF53N
Item Numberzon_f53n
Product LineLift Kits
Lift Height6 inch
