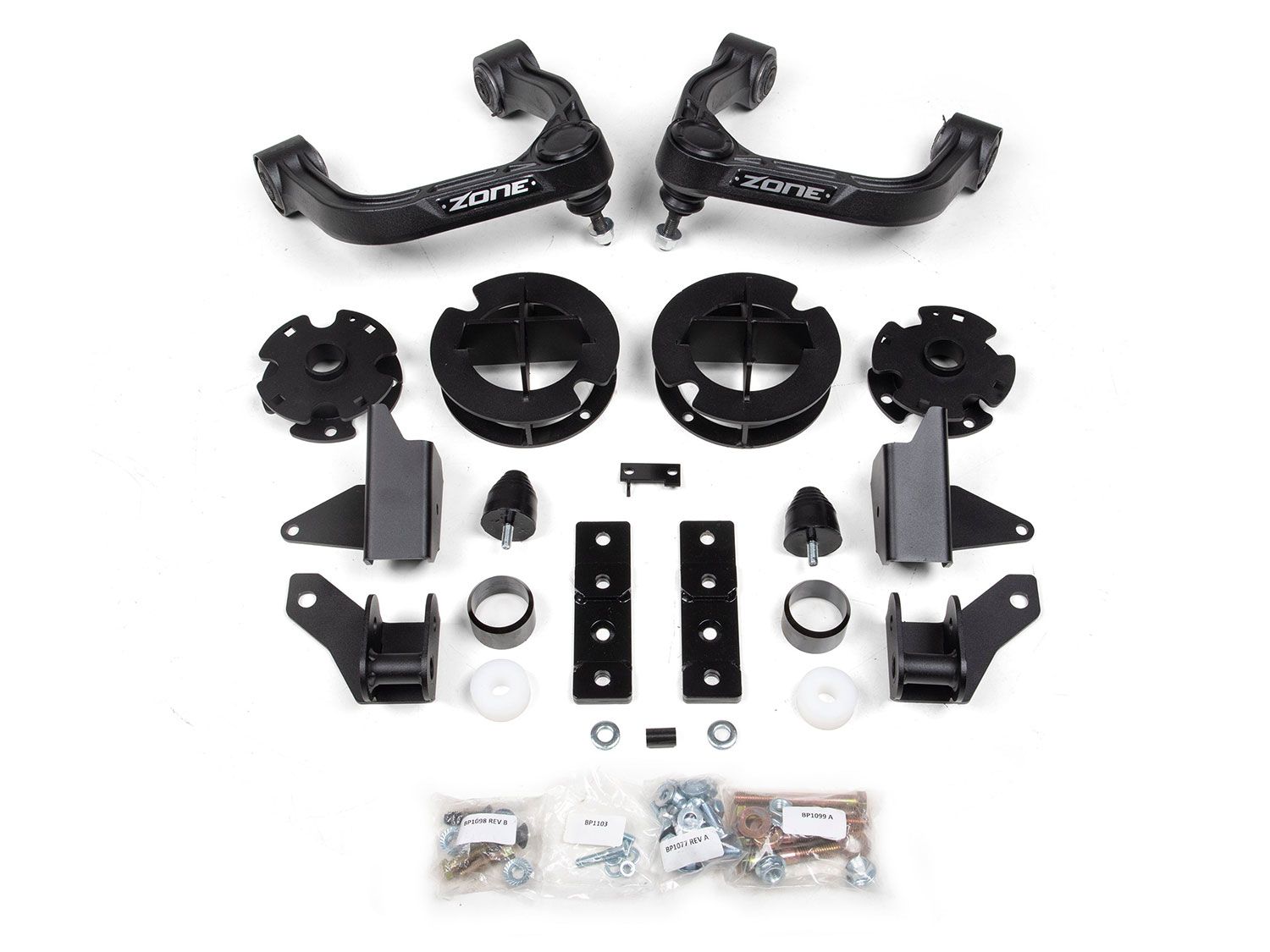

3.5" 2024-2026 Toyota Tacoma 4WD Lift Kit (w/upper control arms) by Zone

The Zone Offroad ZONT20 3.5-Inch Suspension Lift Kit for 2024-up Toyota Tacoma 4WD models increases ground clearance, improves tire clearance, and enhances suspension capability while maintaining controlled street and trail performance. The system provides approximately 3.5 inches of front lift and 2 inches of rear lift using front preload and upper strut spacers, heavy-duty Zone upper control arms, rear spring spacers, and supporting suspension hardware. Rear shock configurations include no replacement shocks with rear shock extension brackets, Zone Nitro Series shocks, or FOX 2.0 Adventure Series shocks.

The front suspension uses preload and upper strut spacers to raise ride height while retaining the factory front strut assemblies. Heavy-duty cast Zone upper control arms replace the factory components and feature repositioned ball joints engineered to improve suspension geometry and maximize usable travel at the taller ride height. This configuration provides the additional clearance needed for larger tires while supporting proper alignment, predictable steering response, and controlled suspension movement.

At the rear, spring spacers provide approximately 2 inches of lift to complement the taller front suspension and create a balanced, aggressive stance. The no-shock configuration retains the factory rear shocks using included shock extension brackets, while Zone Nitro Series and FOX 2.0 Adventure Series rear shocks provide upgraded damping options. With properly configured wheels, the ZONT20 fits up to 315/70R17 tires, adding substantial tire clearance without sacrificing everyday drivability.

Zone Nitro Series rear shocks use nitrogen-charged twin-tube construction with 10-stage velocity-sensitive valving for responsive damping across changing street and trail conditions. FOX 2.0 Adventure Series rear shocks feature 2-inch steel monotube bodies, internal floating pistons, 5/8-inch hard chrome-plated shafts, race-developed high-flow pistons, and application-specific valving for consistent suspension control and improved heat management. With three rear shock configurations and geometry-correcting upper control arms, the ZONT20 provides a versatile suspension upgrade for Tacoma builds focused on increased clearance, larger tires, and improved on- and off-road capability.

Features & Benefits

• Provides approximately 3.5 inches of front lift and 2 inches of rear lift
• Designed for 2024-up Toyota Tacoma 4WD models
• Front preload and upper strut spacers provide increased ride height while retaining the factory front struts
• Heavy-duty cast Zone upper control arms improve suspension strength and lifted geometry
• Repositioned upper control arm ball joints help maximize suspension travel at the increased ride height
• Upper control arm design supports proper alignment and controlled suspension movement
• Rear spring spacers provide approximately 2 inches of additional rear ride height
• Front and rear lift components create a balanced and aggressive stance
• Provides increased ground clearance and additional room for larger tire combinations
• Accommodates up to 315/70R17 tires with properly configured wheels
• Available without replacement rear shocks using rear shock extension brackets
• Rear shock extension brackets allow the factory shocks to operate with the increased ride height
• Available with Zone Nitro Series rear shocks
• Zone Nitro Series shocks use nitrogen-charged twin-tube construction
• Zone Nitro Series shocks feature 10-stage velocity-sensitive valving for responsive suspension control
• Zone Nitro Series shocks feature dual-welded ends and self-lubricating seals for durability
• Available with FOX 2.0 Adventure Series rear shocks
• FOX 2.0 Adventure Series shocks use 2-inch steel monotube bodies
• Internal floating piston design separates shock oil from the gas charge for consistent damping
• FOX 2.0 Adventure Series shocks feature 5/8-inch hard chrome plated heat-treated alloy steel shafts
• Race-developed high-flow pistons provide responsive suspension damping
• Application-specific FOX valving provides controlled street and off-road performance
