3.5" 2024-2026 Toyota Tacoma TRD Off-Road 4WD 4WD Lift Kit (w/upper control arms) by Zone

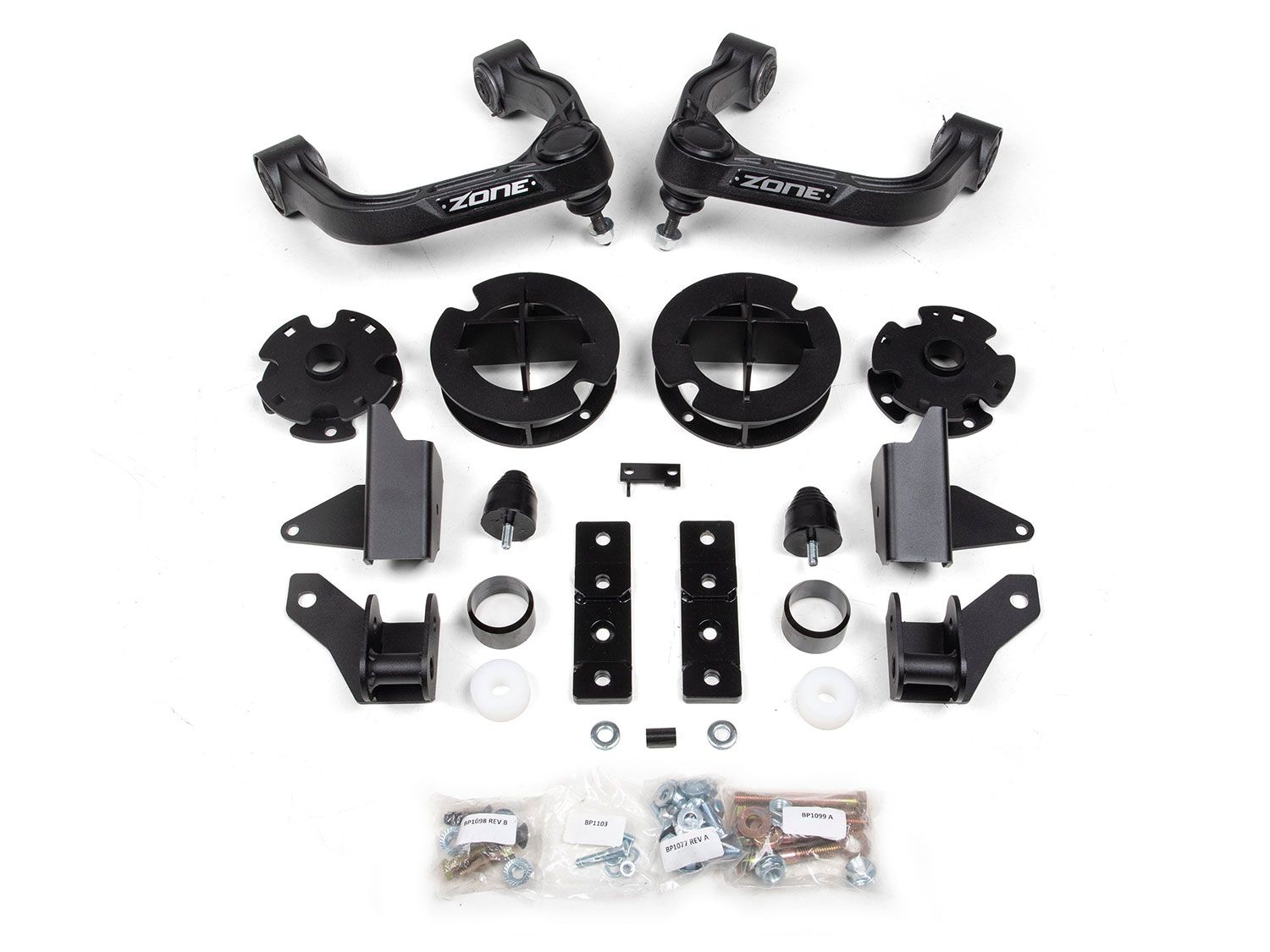

The Zone Offroad ZONT21 3.5-Inch Suspension Lift Kit for 2024-up Toyota Tacoma TRD Off-Road 4WD models increases ground clearance, tire clearance, and suspension capability while maintaining controlled street and trail performance. The system combines front preload and upper strut spacers, heavy-duty Zone upper control arms, rear spring spacers, and supporting suspension components to provide approximately 3.5 inches of front lift and 2 inches of rear lift. Rear shock options include factory shock relocation (no replacement shocks), Zone Nitro Series rear shocks, or FOX 2.0 Adventure Series rear shocks.

The front suspension uses preload spacers and upper strut spacers to raise ride height while keeping the factory front strut assemblies. Heavy-duty cast Zone upper control arms replace the factory components and feature repositioned ball joints to improve suspension geometry and maximize usable travel at the taller ride height. This combination provides the clearance needed for larger tires while maintaining proper front suspension movement, alignment capability, and predictable handling.

At the rear, suspension spacers provide approximately 2 inches of lift to complement the taller front suspension and create a balanced, aggressive stance. The no-shock configuration retains the factory rear shocks and includes shock relocation brackets, while optional Zone Nitro Series or FOX 2.0 Adventure Series shocks deliver upgraded damping performance. With properly configured wheels, the ZONT21 fits up to 315/70R17 tires, adding substantial tire clearance while preserving everyday drivability.

Zone Nitro Series rear shocks use a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving for responsive damping across changing road and trail conditions. FOX 2.0 Adventure Series rear shocks use 2-inch steel monotube bodies with internal floating pistons, 5/8-inch hard chrome plated shafts, race-developed high-flow pistons, and application-specific valving for consistent suspension control and improved heat management. With three rear shock configurations and geometry-correcting upper control arms, the ZONT21 provides a versatile suspension upgrade for Tacoma TRD Off-Road builds focused on increased clearance, larger tires, and improved capability.

Features & Benefits

• Provides approximately 3.5 inches of front lift and 2 inches of rear lift
• Designed for 2024-up Toyota Tacoma TRD Off-Road 4WD models
• Front preload and upper strut spacers provide increased ride height while retaining the factory front struts
• Heavy-duty cast Zone upper control arms improve strength and lifted suspension geometry
• Repositioned upper control arm ball joints help maximize suspension travel at the increased ride height
• Upper control arm design supports proper alignment and controlled suspension movement
• Rear spring spacers provide approximately 2 inches of additional rear ride height
• Front and rear lift components create a balanced and aggressive stance
• Provides increased ground clearance and additional room for larger tire combinations
• Accommodates up to 315/70R17 tires with properly configured wheels
• Available without replacement rear shocks using factory rear shock relocation brackets
• Shock relocation brackets allow the factory rear shocks to operate with the increased ride height
• Available with Zone Nitro Series rear shocks
• Zone Nitro Series shocks use nitrogen-charged twin-tube construction
• Zone Nitro Series shocks feature 10-stage velocity-sensitive valving for responsive suspension control
• Zone Nitro Series shocks feature dual-welded ends and self-lubricating seals for durability
• Available with FOX 2.0 Adventure Series rear shocks
• FOX 2.0 Adventure Series shocks use 2-inch steel monotube bodies
• Internal floating piston design separates shock oil from the gas charge for consistent damping
• FOX 2.0 Adventure Series shocks feature 5/8-inch hard chrome plated heat-treated alloy steel shafts
• Race-developed high-flow pistons provide responsive suspension damping
• Application-specific FOX valving provides controlled street and off-road performance
