Pickup 1/2 ton, 3/4 ton 1973-1987 Chevy 4wd - Rear 6" Lift Leaf Spring (52" length) by BDS Suspension Brand: BDS Suspension | SKU: BDS001609
$243.15
- +
243.150000

Pickup 1/2 ton, 3/4 ton 1973-1987 Chevy 4wd - Rear 6" Lift Leaf Spring (52" length) by BDS Suspension

Brand: BDS Suspension | SKU: BDS001609
Special Price $243.15 Regular Price $255.95

Pickup 1/2 ton, 3/4 ton 1973-1987 Chevy 4wd - Rear 6" Lift Leaf Spring (52" length) by BDS Suspension

Brand: BDS Suspension | SKU: BDS001609
Special Price $243.15 Regular Price $255.95


free shipping truck PREMIUM FREIGHT ITEM
A $99.95 (for pair or single) freight and processing fee applies, what is premium freight


Single Leaf Spring (Sold INDIVIDUALLY. Order two for complete set.)

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

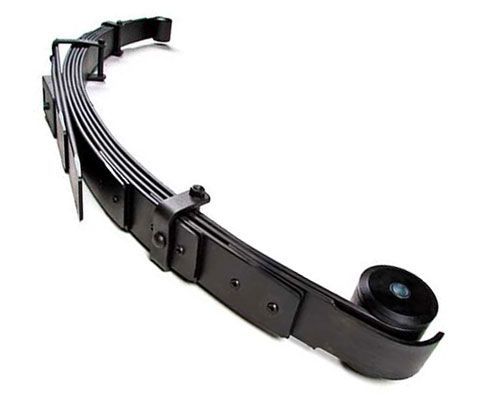

This BDS Suspension BDS001609 Leaf Spring for the Chevy Pickup 1/2 ton is shot-peened, increasing tensile strength and reducing fatigue while lessening the material thickness required. The thinner material provided in this kit allows for increased wheel travel and provides a softer ride. Anti friction pads are placed between the leaves, reducing friction within the spring and noise from the metal to metal contact, improving the longevity of the springs. Tapered and roll pointed leaves add flexibility and provide an even deflection rate. Tapering also allows for a smoother transition between leaves as compression takes place, resulting in a softer ride with increased wheel travel. Bolt style leaf alignment clamps prevent leaves from fanning out and allow the leaves to twist and flex, yielding higher articulation. Each spring uses hydraulic stress to reduce fatigue in the steel, preventing sagging.

Features and Benefits

  • Eye to Eye Dimension: 48.25
  • Free Height Dimension: 11
  • Eye to Center Pin Front: 26.5
  • Eye to Center Pin Rear: 28
  • Eye (F/R) diameters: 1.5/1.15
  • Designed for 6 inch lifts only
  • 6 leafs per leaf pack
  • Width 2.5"
  • Center Pin Size 3/8"
Important Notes1. Leaf springs sold individually, quantity (2) required.
2. Fits models with factory leaf springs measuring 52 inches eye to eye. Some models are equipped with 56-inch springs; these springs will not fit those models.
Vehicle Fitment
MakeChevy
ModelPickup 1/2 ton, Pickup 3/4 ton
Year Fitment1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS001609
Item Numberbds_bds001609
MPN(UPC)658848611249
Product LineLeaf Spring
Lift Height6 inch
Front/RearRear
Spring Height6"
Number Of Leaves6
Eye to Center Pin (Front x Rear)26.5 x 28
