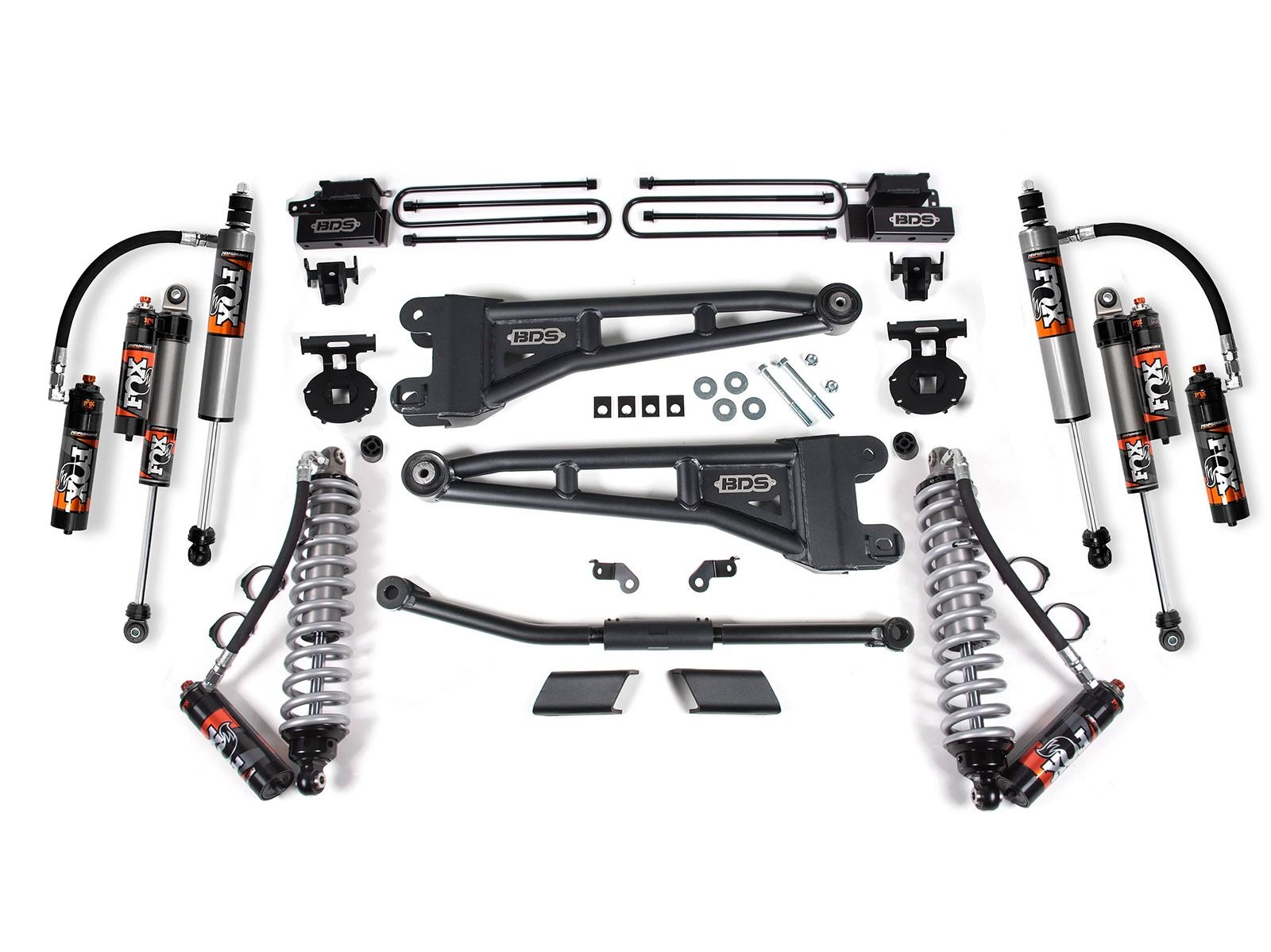

2.5" 2023-2026 Ford F450 4WD Fox Performance Elite CoilOver Radius Arm Lift Kit by BDS Suspension

This BDS Suspension BDS13075FPE 2.5-inch coilover lift kit is the ultimate premium suspension system for the Ford F450 Super Duty trucks. Featuring Fox 2.5 Performance Elite Remote Reservoir Coil-Overs with DSC (dual speed compression) adjustments to fine-tune your ride with the turn of a dial. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance, and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle. The front axle remains centered with the use of a heavy-duty adjustable track bar. Sway bar drop brackets keep the factory bar from binding.

Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs) are included for the front and rear.

1" bolt-on lift block and new black e-coated u-bolts to level stance while retaining the factory rear springs for ride quality and tow capacity

Top Features and Benefits

• 2.5-inch front lift / 1-inch rear lift
• Ultimate Premium Suspension Lift Kit for Ford F450 models
• Fox 2.5 Performance Elite Coilovers replace factory coil springs for unmatched comfort and performance
• Coilovers feature DSC (dual speed compression) to allow fine-tuning of your ride with the turn of a dial
• 2.5-inch ProRide Coil Springs feature a smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Fox 2.5 Performance Elite Front and Rear Shocks
• Allows use of up to 35-inch tires
• Average Install Time: 5 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Tire & Wheel Combinations

• Front Wheel 35" x 12.50" w/20 x 8.25 and 8.76" back spacing
• Rear Outer 35" x 12.50" w/20 x 8.25 and -3.33" back spacing
• Rear Inner 35" x 12.50" w/20 x 8.25 and 9.11" back spacing

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
