2" 2014-2020 Ford F150 4WD Leveling Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1553FSR
$1696.14
- +
1696.140000

2" 2014-2020 Ford F150 4WD Leveling Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1553FSR
Special Price $1,696.14 Regular Price $1,730.75

2" 2014-2020 Ford F150 4WD Leveling Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1553FSR
Special Price $1,696.14 Regular Price $1,730.75


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

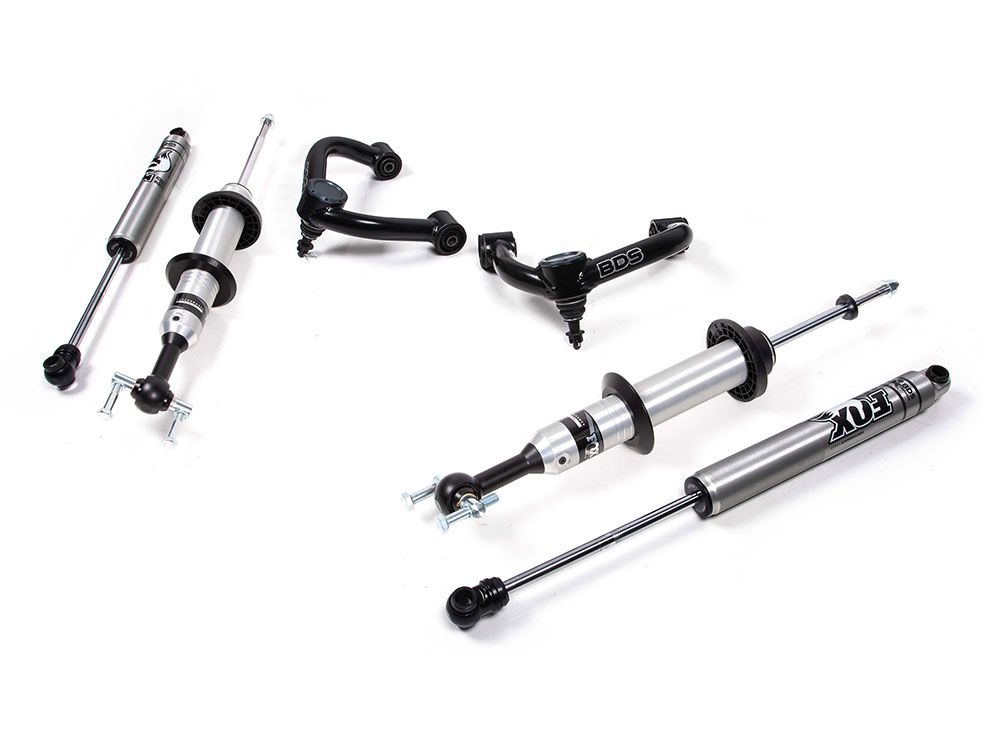

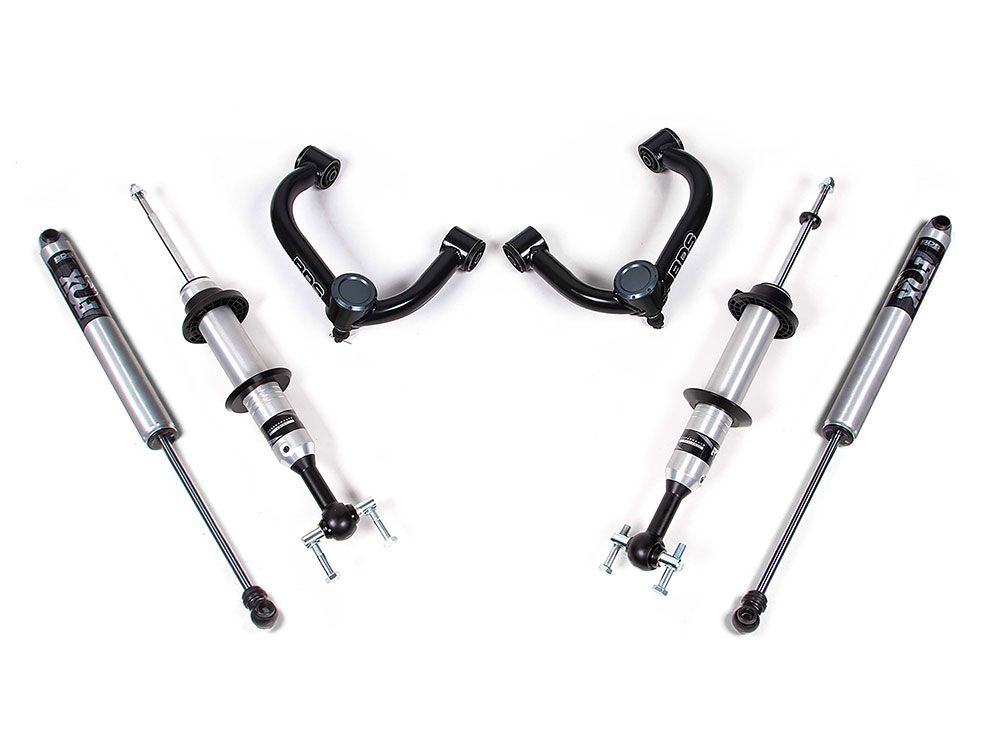

The BDS Suspension BDS1553FSR 2 inch snap ring coilover leveling kit for the Ford F150 truck will allow for fitment of up to 35 inch diameter tires for a great off-road look. Featuring Fox 2.0 performance IFP Struts that are adjustable in height from 0 inches to 2 inches due to the snap ring grooves. These coilovers utilize the factory coil springs and top plates making this a more affordable coilover lift option.

The specially tuned Fox 2.0 Performance IFP struts are non-reservoir struts, designed to be used with the factory spring/top plate and offer the option to adjust the front ride height based on the snap rings grooves, ensuring a level ride. This is a direct bolt-in replacement for the factory assemblies which improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion. The Internal Floating Piston (IFP) is put in place in order to eliminate oil aeration.

Also included is a front pair of performance upper control arms, designed for improved strength and suspension travel. Built from thick wall 1.5" tubing the control arms utilize an indexed ball joint cup, repositioning the upper ball joints and allowing for more travel under suspension droop. The upper control arms included high quality greaseable ball joints and rubber bushings, providing a quiet operation and superior corrosion resistance over OEM arms.

Matching the performance of the front end, rear Fox 2.0 IFP shocks are supplied.

Features and Benefits:

  • Lifts front 2 inches to sit level with rear
  • Fox 2.0 Performance Series IFP Struts included
  • Fox 2.0 Performance Series IFP shocks included
  • Heavy duty tubular upper control arms with Clevite OEM style bushings
  • Allows use of up 35 inch tires
  • Proudly made in the USA, using only premium quality components
  • Average Install Time: 3 hours
  • Difficulty level (easy 1 - 5 Complicated:) 3
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • 35x12.50" w/20 x 9 and 5.5" backspacing
  • 33x12.50" w/20 x 9 and 5.5" backspacing

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Vehicle Fitment
MakeFord
ModelF150
Year Fitment2020, 2019, 2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1553FSR
Item Numberbds_bds1553fsr
Product LineLeveling Kits
Lift Height2 inch
