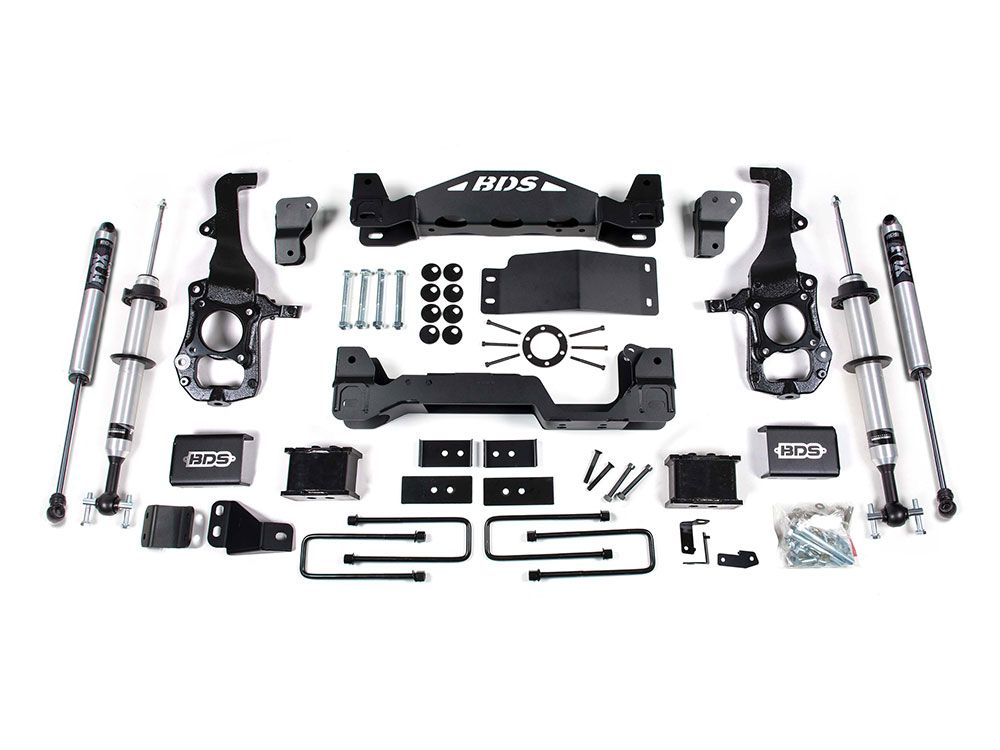

6" 2021-2025 Ford F150 4wd Fox Snap Ring Coilover Lift Kit by BDS Suspension

The BDS Suspension BDS1579FSR / 1900FSR 6-inch snap ring coilover suspension lift kit for the Ford F150 truck will allow for fitment of up to 37-inch diameter tires for a great off-road look. Features Fox 2.0 performance coilovers that are adjustable from 4 to 6 inches due to the snap ring grooves. These coilovers utilize the factory coil springs and top plates, making this a more affordable coilover lift option.

This lift kit includes a 1/4 inch thick steel laser cut high clearance cross member designed to give maximum clearance and provide a rock-solid mounting point for the factory lower control arms. Heavy-duty front skid plates connect the cross members while protecting steering and driveline components. Correct steering geometry is maintained using new ductile iron steering knuckles that keep the ESC system compatible. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 3 to 4-inch tall axle blocks (replacing factory blocks) with extended ubolts.

Features and Benefits:

• Lifts vehicle 6 inches
• Fox 2.0 Performance Series Coilovers (uses factory coil springs)
• 1/4 Inch Steel High Clearance Crossmembers
• Heavy Duty Front Skid Plate
• High Clearance design for maximum clearance
• Ductile Iron Heavy Duty Steering Knuckles
• Multi-Point Front Differential Relocation System
• Allows use of up to 37-inch tires
• Proudly made in the USA, using only premium quality components
• Average Install Time: 8-10 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus

Tire & Wheel Combinations

• 37x12.50" w/20 x 9 and 5" backspacing
• 35x12.50" w/20 x 9 and 5" backspacing

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase. Click here for more info
