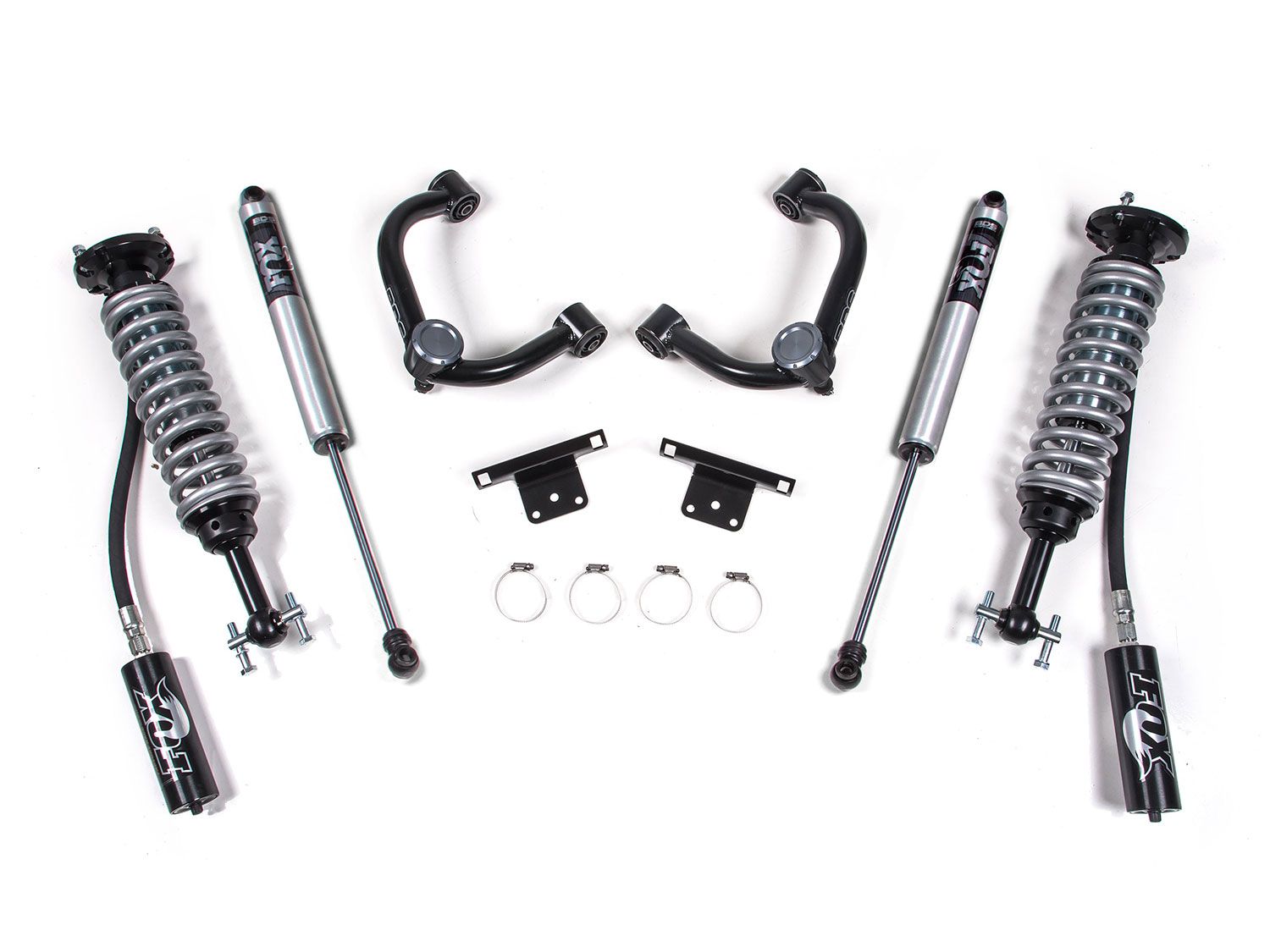

2" 2009-2013 Ford F150 4WD Fox 2.5 Coilover Leveling Kit by BDS Suspension

BDS1586F 2" Lift Kit with FOX 2.5 Coilovers is designed to enhance stance, ride quality, and off-road capability for 2009–2013 Ford F150 trucks. This complete suspension upgrade improves performance while providing clearance for up to 35" tires, delivering a balanced combination of on-road comfort and off-road control.

Up front, the system features FOX 2.5 Factory Series remote reservoir coilover shocks paired with heavy-duty tubular upper control arms. These components increase suspension travel and strength while correcting ball joint positioning for improved camber adjustment and durability on leveled or lifted trucks. The UCAs utilize 1.5" OD x .120-wall tubing with greaseable ball joints and maintenance-free rubber bushings for smooth, quiet operation.

In the rear, the kit includes FOX 2.0 Performance shocks along with lift blocks and U-bolts to level the vehicle stance and maintain ride comfort. Additional components such as heavy-duty steering knuckles, high-clearance crossmembers, and a differential skid plate improve steering geometry, maintain ESC compatibility, and enhance off-road protection. FOX 2.5 coilovers are also available with optional Dual Speed Compression (DSC) adjustment, allowing independent tuning of high-speed and low-speed compression damping for optimized performance across varying terrain.

Features and Benefits:

• BDS1586F 2" Lift Kit for 2009–2013 Ford F150
• Includes FOX 2.5 Factory Series remote reservoir front coilover shocks
• Optional FOX 2.5 coilovers with DSC adjusters for independent high- and low-speed compression tuning
• DSC adjustment increases compression damping up to 25% for improved control
• Rear FOX 2.0 Performance shocks for balanced ride quality
• Heavy-duty tubular upper control arms improve strength and suspension travel
• Indexed ball joint cup corrects ball joint positioning for improved geometry
• High-clearance crossmembers increase strength and off-road capability
• Heavy-duty steering knuckles maintain proper steering geometry and ESC compatibility
• Supports up to 35" tires (trimming may be required)
• Recommended wheel and tire: 35 x 12.5 with 20 x 9 wheels and 5.5" backspacing
