6" 2013-2018 Dodge Ram 3500 4WD (w/diesel engine) 4-Link Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1603H
$2463.28
- +
2463.28

6" 2013-2018 Dodge Ram 3500 4WD (w/diesel engine) 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1603H
From $2,463.28 Regular Price $2,513.55

6" 2013-2018 Dodge Ram 3500 4WD (w/diesel engine) 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1603H
From $2,463.28 Regular Price $2,513.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

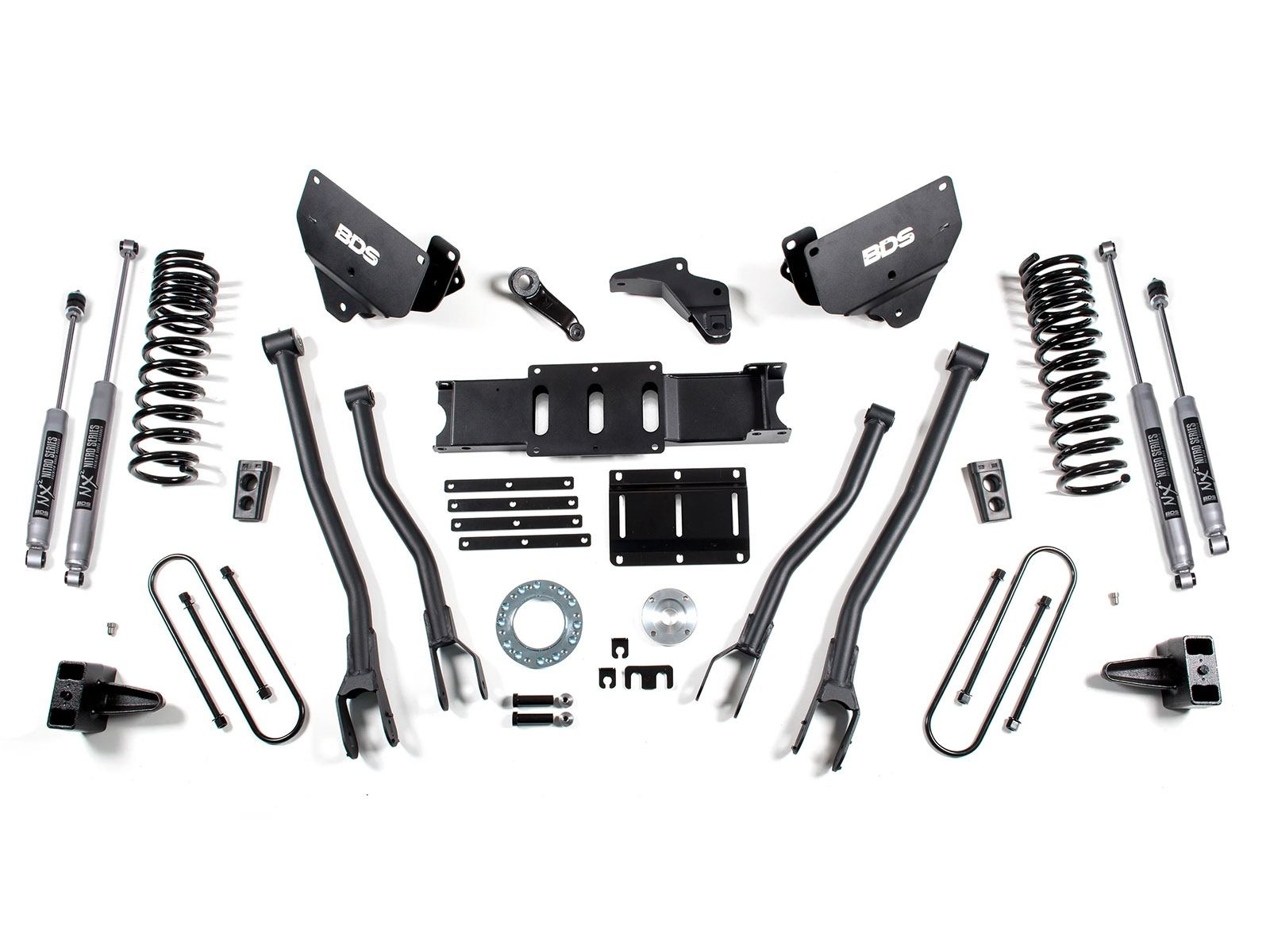

The BDS Suspension BDS1603H 6-inch 4-link lift kit for the 2013 through 2018 Dodge Ram 3500 is an excellent way to upgrade your suspension and fit up to 37-inch tires. The design for these kits starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required.

The new 4-Link brackets mount similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. As with our radius arm brackets, a minor amount of welding is required to install the threaded frame insert (1 per side). This insert is necessary to provide the most robust possible mount. The new control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and more controlled steering 'feel', especially in rough terrain when the suspension can travel and articulate. The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders.

The new front coil springs are progressive rate to provide excellent on-road ride and off-road performance. Track bar relocation, a dropped pitman arm, and brake line relocation round out the front portion of the system.

The rear is lifted via a 5-inch block and new U-bolts to achieve a level stance. Available with both BDS NX2 or Fox 2.0 Performance Series shocks.

All possible SKUs depending on options selected: BDS1603H BDS1603FS BDS1618H BDS1618FS BDS1782H BDS1782FS BDS1783H BDS1783FS BDS1784H BDS1784FS BDS1785H BDS1785FS

Features and Benefits:

  • Allows use of up to 37 inch diameter tires
  • 4-Link upgrade improves handling
  • Premium quality components
  • Progressive Rate Front Coil Springs
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Average install time: 5 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits 37 inch x 13.5 inch tires w/ 17 inch x 9 and 5.625 inch backspacing
  • Fits 37 inch x 12.5 inch w/ 18 inch x 9 and 4.5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle could have 8 bolt transfer cases (with heavy duty Asian 6 speed transmissions).
  • Not for use with factory rear airbag suspensions.
  • Fits Diesel models only.
  • Vehicle Fitment
    MakeDodge
    ModelRam 3500
    Year Fitment2018, 2017, 2016, 2015, 2014, 2013
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1603H
    Item Numberbds_bds1603h
    Product LineLift Kits
    Lift Height6 inch
    EngineDiesel
