4" 2013-2018 Dodge Ram 3500 4WD (w/diesel engine) 4-Link Lift Kit by BDS Suspension

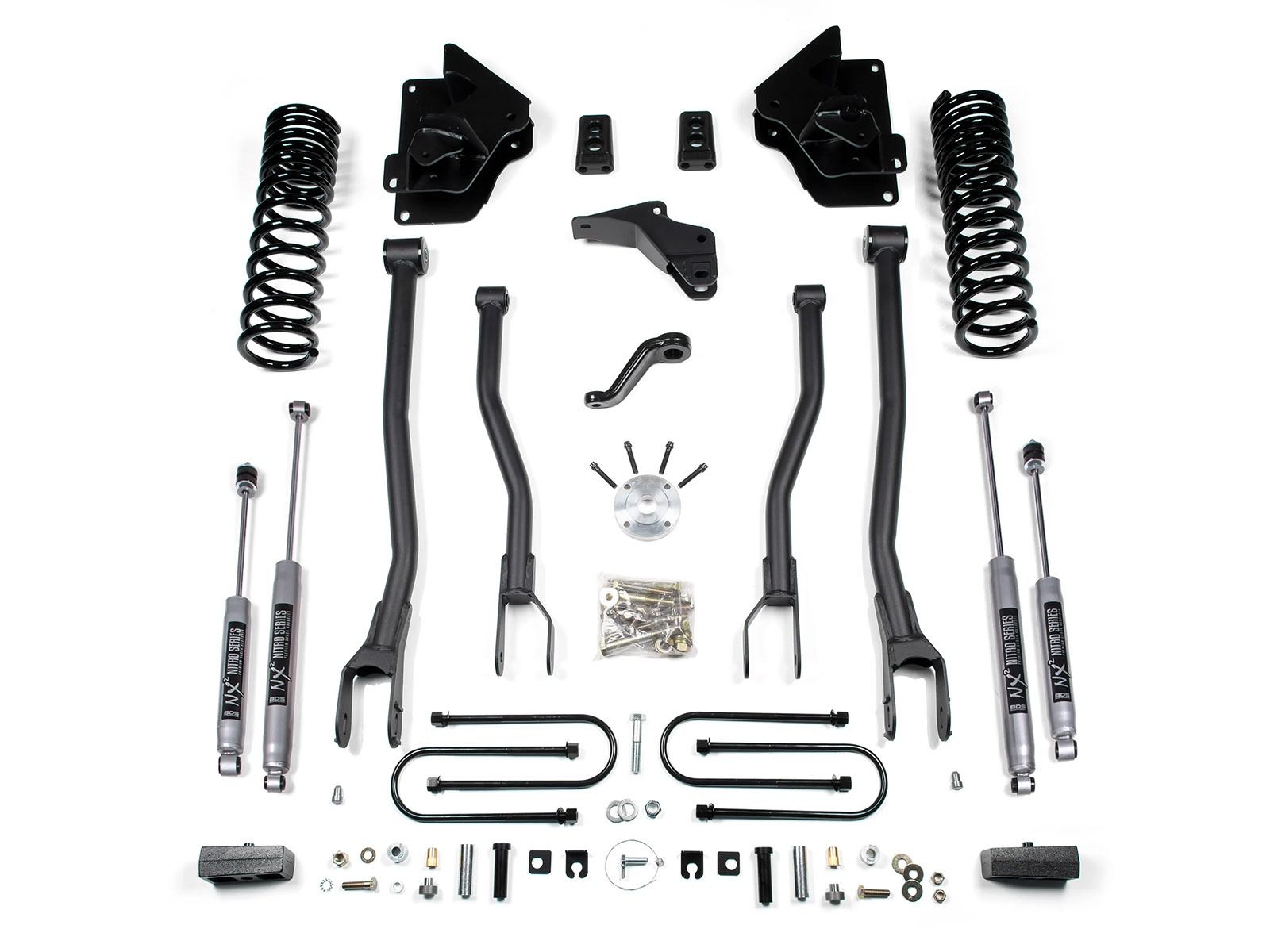

This BDS Suspension BDS697H / BDS697FS 4-inch lift kit for the Dodge Ram 3500 4WD diesel trucks is an awesome suspension upgrade that features a 4-Link control arm setup that replaces the factory radius arms. This kit will improve handling and control while giving more tire clearance to fit up to 37-inch diameter tires. The new heavy-duty tubular control arms are positioned at the frame and create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and more controlled steering "feel", especially in rough terrain when the suspension is allowed to travel and articulate.

Also included are new front Pro-Ride coil springs with a progressive rate, designed to provide excellent on-road ride and off-road performance. A Track bar relocation bracket keeps the front axle centered, and a drop pitman arm maintains correct steering angles.

The rear is lifted via a block and new U-bolts to achieve a level stance.

Choose from Fox 2.0 Performance IFP Shocks (2-inch diameter aluminum body monotube gas), BDS NX2 Shocks (Nitro Gas), or Fox 2.5 Performance Elite Adjustable Shocks (2.5-inch diameter aluminum body with ride adjustment knobs), which are included for the front and rear.

All possible SKUs depending on options selected: BDS697 BDS697FS BDS697FPE BDS1776H BDS1776FS BDS1776FPE

Top Features

• 4-inch front lift / 2-inch or 3-inch rear lift
• Allows for the use of 37-inch tires
• Premium Quality Components
• 4-Link Control Arms improve handling and control
• Fox 2.0 Performance Shocks
• Pro-Ride Coil Springs
• Trackbar bracket keeps the front axle centered
• Made in the USA
• Best Quality and Engineering in the Industry
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 5 Hours

Tire and Wheel Combinations:

• 37 x 12.5 w/ 17 x 9 and 5.625 inch backspacing
• 35 x 12.5 w/ 18 x 9 and 4.5 inch backspacing
• 35 x 12.5 w/ 20 x 9 and 4.5 inch backspacing

Shock Options

• BDS NX2 Nitro: Nitro-charged, twin-tube design, steel body with Silver powder coat finish
• Fox 2.0 Performance Series: 2-inch aluminum body, mono-tube gas design, 5/8 inch steel shaft, anodized finish
• Fox 2.5 Performance Elite: 2.5-inch aluminum body, 7/8-inch steel shaft, external reservoirs, DSC external ride-adjustment

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
